Drying Machine Rotary Dryer for Ore Sand Coal Slurry

Product Description

Rotary dryer is a kind of highly efficient, stable and reliable heating drying equipment, and its performance is better than tube bundle rotary dryer, blade rotary dryer. Drying machine adopts "center-adjusting roller device", making the cooperation of roller and rolling ring always show linear contact which greatly reduces the wear and power consumption. This machinery is applied in the materials like coal slurry, mud, felted gypsum, Muddy, high-moisture swell soil, electroplate mud and so on.

Application and Operating Principle

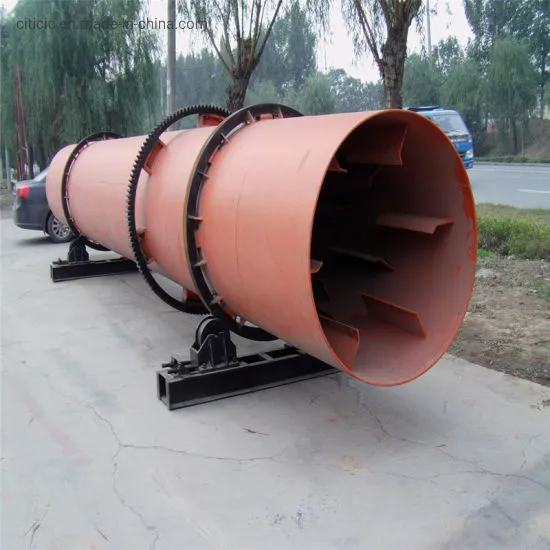

The moist material enters the dryer from one end. With the stirring of the uniformly distributed lifting blade inside the shell, the material disperses equably inside the dryer. In this way, the material is fully exposure in the flowing hot-air, and the drying process is quickened. During the drying process, the material is moved manageably to the other end of the dryer under the effect of both the gradient and the hot-air. Thus the finished product is produced.
The rotary dryer is applied in the drying of the material, which requires for low-temperature drying and mass continuous drying, for example, the drying of large particles and large specific gravity, such as the ore, blast-furnace slag, coal, metal power, phosphate fertilizer, thiamine, and so on, in the industries of chemical, mineral, metallurgy and etc; and the drying of powdery and granular material of special requirements, such as the HP foaming agent, vinasse slag, light calcium carbonate, activated clay, magnetic powder, graphite, herb residue, and etc.

Characteristics
Of high degree of mechanization and productivity;
Of low consumption, with low resistance generated when the fluid goes through the shell;
Of strong adaptability for the material;
Of stable operation, low costs, and great drying uniformity.
Technical Parameters of Rotary Dryer

Specification(m)	Volume(m³)	Capacity(t/h)	Installation Inclination(%)	Max. Inlet Gas Temperature(ºC)	Main Motor(kw)	Total Weight(t)
Φ1.2×8.0	9.0	1.9-2.4	3-5	700-800	7.5	9
Φ1.2×10	11.3	2.4-3.0	3-5	700-800	7.5	11
Φ1.5×12	21.2	4.5-5.7	3-5	700-800	15	18.5
Φ1.5×14	24.7	5.3-6.6	3-5	700-800	15	19.7
Φ1.5×15	26.5	5.7-7.1	3-5	700-800	15	20.5
Φ1.8×12	30.5	6.5-8.1	3-5	700-800	18.5	21.5
Φ1.8×14	35.6	7.6-9.5	3-5	700-800	18.5	23
Φ2.2×12	45.6	9.7-12.2	3-5	700-800	22	33.5
Φ2.2×14	53.2	11.4-14.2	3-5	700-800	22	36
Φ2.2×16	60.8	13.0-16.2	3-5	700-800	22	38
Φ2.4×14	63.3	13.5-16.9	3-5	700-800	37	45
Φ2.4×18	81.4	17.4-21.7	3-5	700-800	37	49
Φ2.4×20	90.4	19.3-24.1	3-5	700-800	45	54
Φ2.4×22	99.5	21.2-26.5	3-5	700-800	45	58
Φ2.6×24	127.4	27.4-34.0	3-5	700-800	55	73
Φ3.0×20	141.3	30.1-37.7	3-5	700-800	75	85
Φ3.0×25	176.6	37.7-47.1	3-5	700-800	75	95
Φ3.2×25	201	42.9-53.6	3-5	700-800	90	110
Φ3.6×28	285	60.8-76.0	3-5	700-800	160	135

Advantages of rotary dryer:
1. The rotary dryer has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
2. Performance Characteristics of sludge dryer: this series drier is used for drying materials with humidity or granularity in the industries of mineral dressing, building material, metallurgy and chemical.
3. It can be used for drying many kinds of materials and with convenient and reliable operation; therefore, it has been widely used.
About us:
CIC, having been started the producing of the pyroprocessing equipments since 1950s, is one of the largest designing and manufacturing enterprises for pyroprocessing equipment in China. The complete set of the pyroprocessing equipment CIC can provide includes the dry, semi-dry and wet processed cement rotary kiln, self-return soda steam calciner, metallurgy chemical kiln, environmental dryer and cooler, and etc, which are widely used in the industries of cement producing, metallurgy, chemical, environment protecting and etc.
CIC has a first-rate team dedicated to the pyroprocessing equipment developing, studying and testing, and the perfect experimenting and testing measures, excellent manufacturing equipment and technology for the pyroprocessing equipment. A complete system for the designing, manufacturing, installing and debugging service for pyroprocessing equipment has now been built up here at CIC.
Recently years, CIC has been learning from the world famous international companies, such as the Danish FLSmisth, German KHD Humboldt and Polysius, and etc, and cooperating with the domestic cement research and design institutes in Tianjin, Nanjing, Hefei and etc. With all these efforts, CIC has developed the series of new large dry-processing cement rotary kiln, which are matching for the 3000~5000t/d cement producing line.
The Supply Scope of the complete set includes: the Kiln Rear Sealing Device, Supporting Device, Shell, Driving Device, Supporting Device with Shaft Roller, Hot Kiln Hood, and Hydraulic System for Thrust Roller (without refractory Material). The Electronic Control System is also available as per the customer's request.
