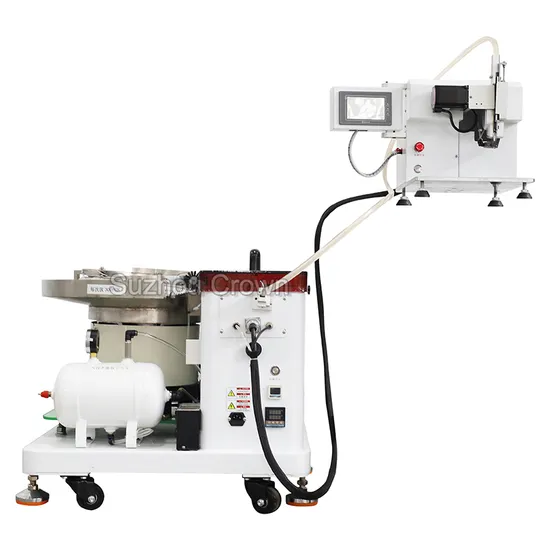

Automatic Nylon Cable Tie Tying Machine Binding Stator

Product Description

Automatic nylon cable tie tying machine binding stator Product description:

Model	WL-PA25100M
Cable tie specifications	2.5*100 mm (specific to the actual product)
Banding efficiency	0.8 S/PCS
Applicable stator	54#, 60#, 70#, etc. (subject to the actual product)
Binding range	subject to the actual product or customized
Vibration plate feeding quantity	about 300 PCS/time
Host size	L735*W825*H670 mm
Cable tie table size	L365*W300*H350 mm
Applicable air pressure	5~6 Kg/cm2
Applicable power supply	220V 50/60HZ
Whole machine weight	about 150Kg (with casters, can be easily weighed)

Features:
This automatic bundling machine is specially used for motor stator coil tying. It can also be used for bundling other products. It's convenient and easy to operate. ○ Put disordered bulk material ties into the vibrating plate at will, and the ties will be transfered to the gun head through the pipeline.
○ Step on the pedal to automatically complete all actions such as feeding, reeling, tightening, cutting, and discarding waste.
○ In 0.8 seconds, complete all actions such as feeding, reeling, tightening, cutting, and discarding waste, including auxiliary time. The whole cycle is about 2 seconds.
○ Waste materials are automatically collected in the waste box through a special recycling system (optional configuration).
○ The binding force or tightness can be adjusted.
○ PLC control system, touch screen display, simple and clear operation.
○ It can be used with manipulators to realize automatic cable tie in the automatic production line, or it can be fixed on the table as a desktop cable tie machine.
○ The whole machine has an automatic detection function to monitor each operation. Once an abnormality is found, the machine will immediately stop its action and give an alarm
○ Automatic detection of material blocking. If material blocking is found, the machine will immediately stop and give an alarm and a key clear function
○ To deal with different temperature differences in the area, the equipment is equipped with a temperature control system that can control the temperature of the cable tie.
Packing & Shipping: For small and light products packed by cartons,for large and heavy products packed by wooden
Machine processing samples:
Related products:
FAQ:

1.How to order?

Please contact my Email for much more details, you can place order with us directly or through ****** online transcation after confirmation.

2.What's your payment terms?

We accept trade assurance order, T/T,L/C, western union, Paypal etc.

3.How long does the production time?

Generally 3~7 days, if there's customized model or other request will be adjusted.

4.How do you packaged the products?

Small size machine, we will package it in standard neutral carton. Larrge size machine, we will package it in standard wooden cases.

5.What can you provide for us?

Our service We provide: · Best products and factory price. · On-time delivery and the shortest delivery time. · 1year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free and you need to pay for the delivery. · OEM and customized service. · User manuals will go with relative machines. · QC: All products will be checked before delivery. · Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers · Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. · Operation Guidance: If you have any problem with operation, please feel free to contact us.
