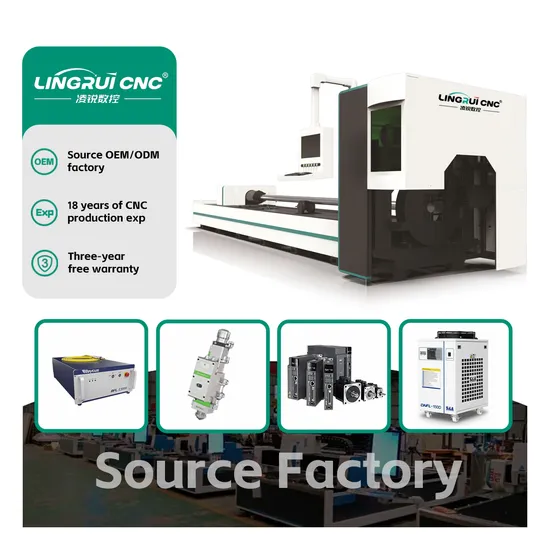

Lr-2260 High Performance China Horizon Fiber Metal Tube Laser Cutting CNC Machine Lr-2260

Product Description

Product Description
Detailed Photos
Advantages of the new high-precision fiber laser cutting machine: 1: Using Raytools autofocus laser cutting head, automatic focus, higher efficiency.
2: Using Raycus Laser Source, the electro-optical conversion efficiency is higher.
3: Using aviation-grade aluminum alloy gantry, light weight, faster air speed.
4: Laser cutting control system dedicated to laser machine, can be connected to external wireless remote control.
5: Equipped with S&A special fiber optic dedicated chiller, higher cooling efficiency.
6: High torque servo motor + reducer, more stable processing.
Product Parameters

RAYCUS laser source
Using RAYCUS Source, the electro-optical conversion efficiency is high, the single-module continuous fiber laser can achieve sustainable high-power output, and the second-generation fiber transmission system is used for cutting. The cutting is more stable and precise, and the cutting seam of the cut plate is narrower, with obvious advantages. The modular design is easier to maintain and can be operated maintenance-free.
Laser cutting head
RAYTOOLS laser cutting head can flexibly adjust the scale to unify the zero focus position, and no longer worry about adjusting process parameters. The efficient water-cooled focusing lens and collimating lens nozzle have built-in cooling function, which perfectly solves the problem of cutting heat.
Control system
Using the Cypcut laser control system and an external wireless handle, it supports advanced functions such as finding the edge of the workpiece, auto-focus control, double shuttle, breakpoint positioning, QR code generation, and residual material segmentation. It is easy to operate and stable in operation. It can provide fine cutting technology and highlight high-quality cutting effects.
S&A water chiller
Use S&A special domain water chiller, multiple alarm functions, all-round protection of laser, equipped with water pressure gauge: convenient to observe the water pressure of the water pump; add drain valve: convenient for drainage; high-precision temperature control system, dual temperature control circulation refrigeration function, two independent temperature control systems cooling at the same time, better effect.
Servo motor
The XYZ axis is driven by a high-power servo motor, and the XY axis is used with a planetary reducer, which has higher precision, fast positioning, lower noise and higher processing efficiency.
Automatic rotating shaft
Using a large diameter metal tube fully automatic rotating shaft, it can be used to cut round tubes and square tubes, and can also
control the rotation angle to cut patterns on the tube.The rotating axis is designed with double pneumatic chucks, which can cut
pipes with a diameter of 20-300mm.

Pipe diameter	20-300mm
Brand Name	LINGRUI CNC
Bed frame/Gantry	high strength Heavy duty bed frame,aviation grade Aluminum alloy Gantry
Laser generator	Raycus CE
Laser head	Raytools
Fiber laser power	1500W/2000W/3000W etc.
Cooling	S&A Special water chiller for fiber laser generator
Drive system	Leadshine servo motor*4
Transmission mode	Taiwan HIWIN high precision linear square rail,Taiwan HIWIN slider
Reducer	Japan Shimpo reducer
Device cable	pure copper high soft cable
Electrical parts	DELIXI Electric parts
Control system	FSCUT laser dedicated system
Lubrication system	Electric lubrication and Oil filling and maintenance system
X.Y axis max moving speed	100m/min
Compatible software	Artcam, type3, CAD drawing, CDR,AI etc.
maximum accelerate speed	1.0G
Security system	All photoelectric limits of XYZ three-axis
Operating Voltage	AC380V
Locating Accuracy	±0.02mm/1000mm
Machine weight	5000kg
Machine expansion size	8800*3250*2150mm

Company Profile
We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7*24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Our Advantages
Certifications
FAQ
1. Are you a factory or a trading company?
We are a factory with an export license.
2. Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4. How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5. Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6. Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
7. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
