Ftdi Download Line USB to Serial Port Module with RS485 Cable

Product Description

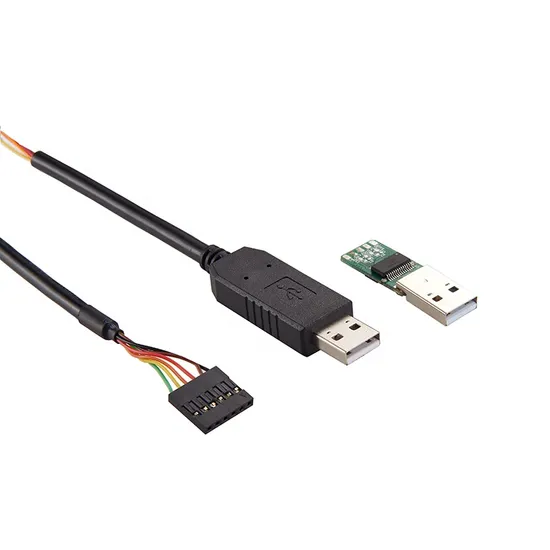

Product Description Wholesale FTDI Download Line USB 2.0 to Serial Port Module 6Pin Splitted Harness Dupont Wire 2.54mm Pitch RS485 Serial Cable Product: USB serial converter cable
Connector: USB 2.0 A Male / 6Pin Splitted or Harness
Chipset: Original UK FTDI/FT232RL chip Length: standard 1.8m or customized Application: router, switch, firewall, CNC Program, bar coder reader, scanner, etc Compatible with USB 3.0, USB 2.0, and USB 1.1 full speed 12 Mbps
Data transfer rate up to 230.4 Kb/s Output Signals:Orange-DATA A(+),Yellow-DATA B(-),Black-GND,Red--VCC(5V),Brown-Terminator 1,Green-Terminator 2
CE RoHS/UL compliance

Packaging & Delivery & How to order
Stock	More than 50 million USD stock for more than 50000 models. Almost all of the orders can be shipped in three days.
Quality Control	Each of the products will be checked by QC group before shipment.
Packing	Original Standard Official Factory Encapsulation Technology Packing + Standard Export Package
Shipping	Shipping by DHL, FEDEX, UPS, TNT, China Post etc.
Payment	We can accept T/T,E-checking, Western ,Paypal etc. also follow customers' requests

FT232RL chip, supporting FTDI VCP, D2XX, D3XX usb serial driver
Supporting Operating System: Win 7/8/10, 2000, Linux, Mac OS,Android,Vista.
Drivers are available which allow USB devices to work with the following operating systems:
* For Windows 8 x32
* For Windows 8 x64
* For Windows Server 2008 R2 x64
* For Windows 7 x32
* For Windows 7 x64
* For Windows Server 2008
* For Windows Server 2008 x64
* For Windows Vista x32
* For Windows Vista x64
* For Windows Server 2003 x32
* For Windows Server 2003 x64
* For Windows XP x32
* For Windows XP x64
* For Windows ME
* For Windows 98
* For Linux
* For Mac OS X
* For Mac OS 9
* For Mac OS 8
* For Windows CE. NET (Version 4.2 and greater)
* For Android
* For windows 10 Driver Downloading: https://www.ftdichip. com/Drivers/VCP.htm
Installation Guideline: http://www.ftdichip. com/Support/Documents/InstallGuides.htm
ftdi usb rs485 cable, compatible usb rs485 we 1800 bt
half duplex, non isolated
Standard 10k pull up & down resistor, 120R terminal resistor
usb2.0 standard, full speed 12M support
On-board signals: Data+, Data-, VCC5V, GND
ft232rl chip for USB UART signals, and SP485LEEN for UART to RS485 signals shift
6 core, 26AWG, bare copper, PVC jacket, OD5.0mm
24AWG wire not suitable for RJ45/rj12 etc
1.8mtr in length
Compatible with ftdi usb-rs485-we-bt signals

Detailed Images
Introduction
The USB 2.0 to RS485 Cable provides a simple and easy to connect between the USB and RS485 ports interface. Ideally for PC, thin client or servers to provide instant RS485 ports expansion via USB ports.

USB to RS485 industrial intelligent converter,no power supply needed,plug-and-play
USB485 is a kind of USB to RS485 industrial intelligent converter. It is the best solution for the communication between USB and RS485. Compared with RS232 to RS485 converter, USB to RS485 converter has many advantages.


Product Features
RS-485 interfaces supported.
RS-485 interface DB PIN connector .
Maximum RS-485 cable length: 1200m
Transmission rate 300bps to 1Mbps.
Maximum number of devides in the RS485
network:Half Duplex to 32 devices
Remote wake-up and power supply management supported.
+/-15KV ESD Protect.
Direct USB power without external power supply.
Working environment: -40 deg.C to 85 deg.C, relative humidity 5% to 95%.
Windows95/98/2000/XP and NT-IMAG supported.
