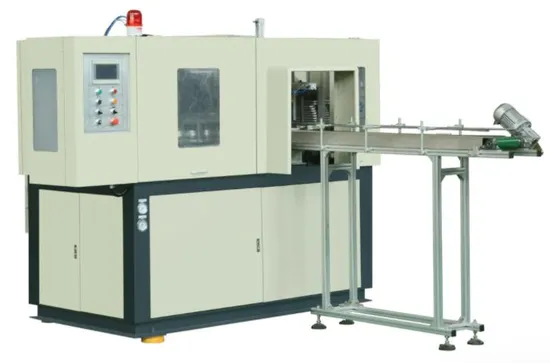

Preform Blow Moulding Machine
| US$23,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JS-600G
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Automatic
Computerized
Computerized
Certification
CE
After-sales Service
1year
Cavity
2cavities
Max. Neck Size
95mm
Max. Bottle Diameter
105mm
Max. Bottle Height
350
Machine Size
2.6*2.2*2
Weight
3.0t
Max. Bottle Volume
2L
Transport Package
by Sea
Specification
SGS, CE
Trademark
JS
Origin
Made in China
Production Capacity
1800-2000PCS/H
Product Description
Fully automatic blow molding machine1.pet jar making machine JS-600G With touch screen, Use Festo ( German brand) , SMC (Japan brand ) & Parker ( U.S.A Brand) pneumatic components. PLC use Mitsubishi (Japan brand)
2.Nontoxic conveyor belt to carry preforms
3.Produce PET Bottles ( such as: wine, beverage, soybean, vinegar bottles and so on)
4.Easy to maintain
5.Infrared lamps
6.High safety. high speed with high efficiency.
7.Manual saving, one man is enough for operation the machine.
8.Stable performing with easy maintaining.
9.Imported PLC controlling and man-machine interface computer.
10.Japan Omron inspection sensor.
11.Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
12.Power saving design that can increase your profits.
13.Segregate type air controlling system, which is designed for avoiding waste pollution.
| Model no | JS600G |
| This model can blow normal PET bottles as well as wide-mouth bottles. | |
| Advantages | Preforms feeded by hand and bottles heated and blowed automatically. No technical requirement from worker. Hourly capacity from 600pcs to 900pcs. Lower cost than usual automatic machines while enjoying stable performance. |
Internal details of the Machine
