93/7 Tgic Polyester Resin for High Gloss Powder Coatings

Product Description

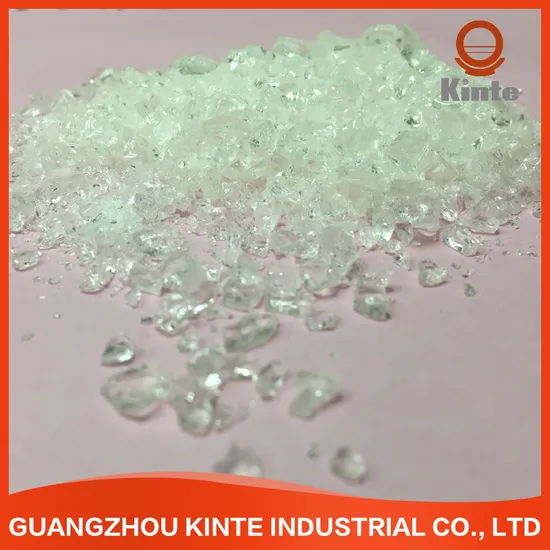

NH3307 is a saturated carboxyl polyester resin for polyester/TGIC powder coating system at the ratio of 93/7.
NH3307 is our company's star product. High Tg means high storage stability. It features excellent weathering resistance, so it could be durable for 5 years outdoors. With excellent leveling and anti-yellowing, it's very suitable to make high-gloss powder coatings for aluminum profiles.
Basic Features
Excellent leveling
Excellent anti-yellowing
Good chemical resistance and mechanical properties
High storage stability
High weathering resistance
Suitable to make high gloss powder coatings for aluminum profile
Recommend Formulation:

NH3307	TGIC	Filler & pigment	Leveling agent	Benzoin	701
558	42	383	8	4	5

Specifications:

Appearance	white or light yellow transparent flakes
Acid Value (mgKOH/g)	30~35
Softening Point (ºC)	103~113
Glass Transition Temp. (ºC)	~67
Melting Viscosity (200ºC, cone/plate, mPa·s)	5000±1000
Reactivity at 180ºC (s, 7% TGIC)	230±30
Curing Requirement	200ºC×10~15min
Packaging	PE Bags, Net Weight 25kg ± 0.1kg / bag

Specifications II:

Extrusion Condition	Two-screw Extruder
	Zone I: 90~110ºC	Zone II: 110~120ºC
	Speed of Revolution	500~1200rpm
	Fineness of Powder	<100μm
Application Condition	Electrostatic Spraying With	40~70KV
	Coating Film Thickness	50~100μm
	Degreased Cold-rolled Steel	0.5mm
Film Properties	Gel Time (180ºC, sec)	290~390
	Horizontal Flow (180ºC, mm)	25~28
	Gloss (60°)	≥85%
	Bending (φ1mm)	Pass
	Adhesive (1mm, grade)	0
	Pencil Hardness	≥1H
	Impact (50cm)	Pass

Remarks: All the polyester resins could be customized to Non-tin (A), anti gas burners (G), tribo gun (T) and anti-blooming (F).
