Br-200L CNC Machine Turning Milling Center 5 Axis CNC Lathe Turning Machines

Product Description

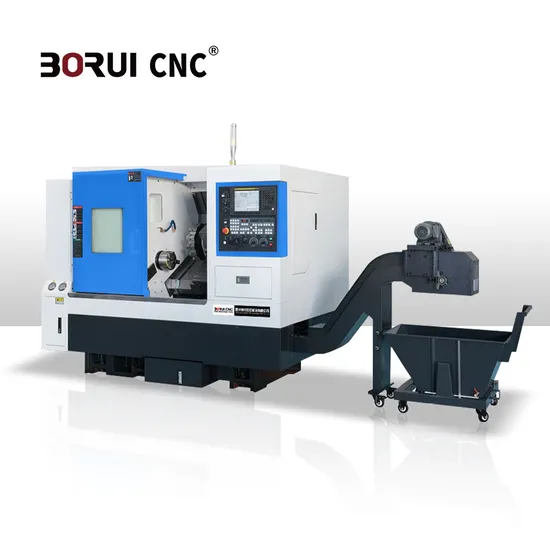

BR-200L CNC Machine Turning Milling Center 5 Axis Cnc Lathe Turning Machines

Product Description
Features:
1. The series CNC lathe is designed with high strength, rigidity and with advanced machine structure, defense,and security.
2.The machine adopt the high rigidity cast iron, base and lathe bed monolithic structure, high precision through-hole structure, vibration resistance designed and high range spindle motor.
3.The bearings and feeding screw adopt the world famous brand, equipped with multi-position tool post, tools are easily changed and changed fast with high precision.
Application:
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.

Product Parameters

	Item	BR-200L	BR-200LA	BR-200LD	BR-200LAD	BR-200LDY	BR-200LADY
Main Parameter	The max.swing diameter over bed	Φ560		Φ660		Φ650
	Max. machining diameter	Φ460		Φ380		Φ420
	Max. swing diameter over cross slide	Φ200		Φ200		Φ200
	Max. processing length	540	500	450	410	450	410
Spindle And Chuck	Spindle end type	A2-6(8 ")	A2-8(10 ")	A2-6(8 ")	A2-8(10 ")	A2-6(8 ")	A2-8(10 ")
	Spindle motor power	11KW	15KW	11KW	15KW	11KW	15KW
	Spindle speed	4000rpm	2500rpm	4000rpm	2500rpm	4000rpm	2500rpm
	Spindle through hole diameter	Φ66	Φ87	Φ66	Φ87	Φ66	Φ87
	Through the bar diameter	Φ52	Φ75	Φ52	Φ75	Φ52	Φ75
Feed	X/Z axis lead screw specification	3210/4010		3210/4010		3210/4010
	Y axis lead screw specification					2108
	X/Z axis linear guide specifications	45/45		45/45		45/45
	Y axis linear guide specifications					Hard rail
	X/Z axis limit travel	230/610		230/610		230/610
	Y axis limit travel					60(±50)
	X/Z axis motor torque	11N.M/11N.M		11N.M/11N.M		11N.M/11N.M
	Y axis motor torque					11N.M
	X/Z axis connection type	Direct connection		Direct connection		Direct connection
Turret	Turret	H100		BMT55/ER25
	Tower station	8T/10T/12T		12T		12T
	Power tower					Y-axis power tower
	Power head specification					BMT45/ER25
	Power head speed					4000rpm
	Power head motor					2.5Kw
	Power head to motor transmission ratio					1:01
	Turret center height size	100		100
Tailstock	Sleeve diameter	80		80		80
	Sleeve travel	80		80		80
	Tailstock max.travel	450		450		450
	Tailstock sleeve taper	MT40		MT40		MT40
Overall Dimension	Bed type and inclination	Integrated/30°		Integrated/30°		Integrated/30°
	Machine size(L * W * H)	1730×1273×1328		1730×1273×1328		1730×1273×1700

Details Display

Packaging & Shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have.
