Wholesale of New Features CNC Carving Machine Atc Router for Woodworking with Popular Price
Basic Info.
Model NO.
A4-Pro
Condition
New
Certification
CE
CNC or Not
CNC
Voltage
380V
Woorking Area
1300*2500*300mm
Spindle Power
9.0kw Hqd Spindle
Guide Rails
25mm Square Guide Rails
Table Surface
Vacuum Working Table with 7.5kw Vacuum Pump
Spindle Speed
0-24000rpm
Z- Axis Height
300mm
Oil Lubrication System
Automatic
Motor
Syntec 1000W AC Servo Motor and Driver
Software
Artcam with Post-Processing
Running Temperature
0 Degree - 45 Degree
Weight
1200kgs +
Package
Plywood Box
Machine Voltage
1 Phase /3 Phase
Reducer
Japan Shimpo Reducer
Control System
Syntec 60we
Transport Package
Standard Export Wooden Box
Specification
13 CBM
Trademark
SIGN CNC
Origin
China
HS Code
846599
Production Capacity
300 Set/Month
Product Description

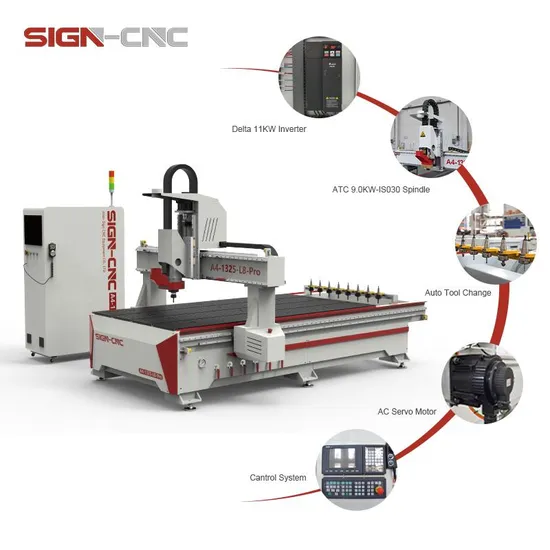

Wholesale of New Features CNC Carving Machine Atc Router for Woodworking with Popular PriceTechnical Parameters:
| Model | A4-1325-L8 | ||
| Working area | 1300*2500mm | ||
| Z feeding | 300mm | ||
| Spindle Power | 9.0kw HQD spindle | ||
| Table surface | Vacuum working table with 7.5kw vacuum pump | ||
| Spindle Speed | 0-24000RPM | ||
| Motor driver | Syntec 1000W servo motor and driver | ||
| Max. Rapid Travel Rate | 45000mm/min | ||
| Max. Working Speed | 30000mm/min | ||
| Operating voltage | AC 380V/50Hz | ||
| Operating conditions | Humidity: 30% -75%, temperature: 0 - 45 degree | ||
| Warranty | Two years | ||
Payment methods:
| MOQ | 1 set |
| Port of loading | Qingdao, China. Other cities are ok |
| Time of delivery | 15 working days after receiving payment |
| Payment methods | T/T in advance, 50% deposit, the balance should be paid before shipping |
Application:
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.
Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .
Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
