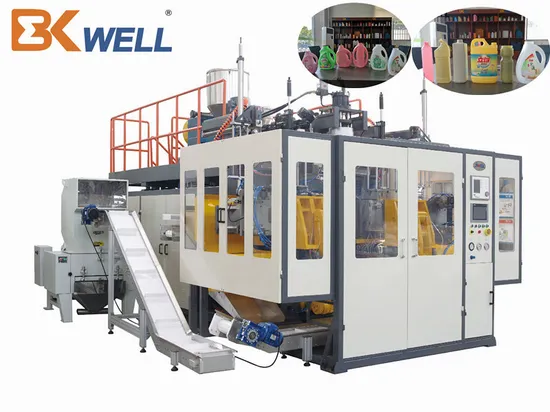

1000ml Chemical Bottle Double Station Blow Molding Machine /Plastic Machine

Product Description

DESCRIPTION OF BLOW MOLDING MACHINE(FOSHAN BEKWELL INTELLIGENT EQ CO/SHANGHAI JWELL MACHINERY)
200ml-5000ml Bekwell PE plastic shampoo bottle,body wash bottle,detergent bottles making blow molding machine (We can offer complete solutions:Mould with auto deflashing,Online labeling machine,Take out robot,conveyor,Online leak detector, especially high speed blow molding machine use the lowest tempreture technical).
Product Overview:
performace & advantages:
·Suitable for producing 100ml-3000ml different size of Milk bottle,soy sauce bottle,yellow wine bottle. 200ml- 5000ml different size of shampoo bottle,body wash bottle,- detergent bottles and others Toiletries and different children's toys.
· Optional pearly lustre layer co-extrusion system.
· According to the product size.select different cavity of die head.
· According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
· According to customer's requirement.optional auto-deflashing on line,scrap conveying on line,finished product conveying on line and others.
tachnical parameters of machine:

Model	Unit	BM2D	BM5D	BM12D	BM20D
Max product volume	L	2	5	12	20
Dry cycle	PC/h	900*2	700*2	600*2	600*2
Die head structure	CONTIUNOUS TYPE
Main screw diameter	Mm	65	75	90	90
Max plasticizing capacity (PE)	Kg/h	70	90	160	160
Driving motor	Kw	22	30	45	45
Oil pump motor power	Kw	7.5	11	15	15
Clamping force	Kn	40	70	120	160
Space between platen	Mm	138-368	150-510	240-640	280-680
Platen size W*H	Mm	286*330	8350*400	450*500	500*520
Max. mold size	Mm	300*350	360*400	500*520	560*520
Platen moving stroke	Mm	420	450/520	600/650	650
Heating power of die head	Kw	6	7.5	10	12.5
Machine dimension L*W*H	M	3.0*1.9*2.4	3.7*3.1*2.7	4.2*3.2*3.0	4.*3.2*3.1
Machine weight	T	5	8.5	12	14
Total power	Kw	45	60	90	93

Different kind of Control system of machine
Parison wall thickness control system
No1. human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
No2 . B&R Austria human-machine interface and parison programmer,
can adjust within 300 points.
No3 . Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Extrution & Die head:
No1.The extruder uses screw and barrel, which is a famous brand" jinhailuo" all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
No2.Bekwell& Jwell supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system:
No1.Up-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)
No2.Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)
Output system:
No1.Take out robot
No2.Scrapping collect together, convey,crusher into one unit
Hydrulic system:
No1.Hydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.
No2.optional hydraulic could sace about 50% energy
Open&Closing system:
No1.Common three platen and three tie bar struction
Toggle struction
No2.Lubrication system
lubrication system:
This auto-lubrication system can lubricate the system with a set cycle automatically.

Electric system:
No1.SIEMENS CPU unit
No2.SIEMENS temperature-control unit
No3.SIEMENS digital-output unit
No4.SIEMENS analog-output unit
No5.MITSUBISHI CPU unit
No6.JWELL invertor revolving speed-control
No7.Schneider electric components
