12kw Metal CNC Fiber Laser Cutting Machine 1000W 1500W 2000W 3000W 4000W 6000W for Carbon Seel Stainless Steel Aluminium Sheet Plate Tube

Product Description

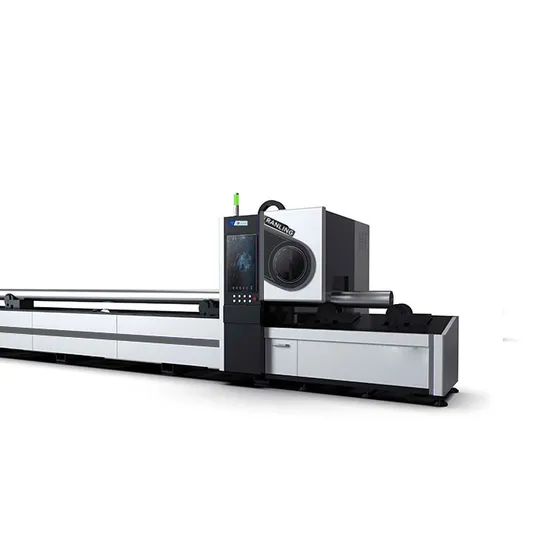

Fiber Laser Cutting Tube Machine
Advantages:
1. Self-centering pneumatic chuck, with thin tube protection limit, to ensure that the thin tube clamping is non-destructive;
2. Strong dynamic performance, greatly improve cutting efficiency;
3. High-speed automatic laser pipe cutting machine, which can cut circular pipe, rectangular pipe special-shaped pipe and other profiles by high speed and high-quality laser.
FSCUT3000S is a control system developed for pipe processing, which supports high-precision and high-efficiency cutting of square pipes, round pipes, runway-shaped and oval-shaped stretched pipes, as well as angle steel and channel steel.
A.Brand: Raytools/WSX/Precitec/OSPRI or others brands customer's requirements;If it is mainly thin plates, below 3000w, recommend:WSX/Raytools
B. Auto Focus Tube Cutting Head.
1.Lightweight design with fast acceleration, Optimized optical configuration and efficient air flow design significantly to improve cutting quality and efficiency.
2.With QBH,QD G5 and other types of optical fiber interfaces, it is applicable to various fiber lasers.
3.Good sealing to keep beam path clean.
4.Automatically change the focus position.
Laser Power: 500W/1000W/1500W/2000W/3000W/4000W/6000W/8000W/10000W/12000W/15000W/20000W/30000W Brand: IPG/RAYCUS/MAX/or others brands customer's The higher the power, the thicker the cutting thickness.

Pneumatic Chuck
a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life
e.Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws

What's the difference between fiber laser, YAG laser and CO2 laser working on metal material?

Laser source	Fiber laser	YAG laser	CO2 laser
Beam quality	Best	Good	Poor
Speed	Fast	Slow	Slow
Electrical efficiency	High	Common	Low
Reliability	Best	Good	Poor
Maintenance	Free	Complex	Difficult
Remote processing	Free	Complex	Difficult
Initial investment	High	Common	Low

Product Parameters

Model	RL6020T
Working Area	20-220mm diameter, 6m length tube processing
Laser Power	3000W (Optional Power: 1-6kw )
Laser Generator	MAX/Raycus/IPG/Optional
Laser Wave Length	1080±5gnm
Maximum Idle Running Speed	60r/min
Maximum acceleration	0.8G
Position Accuracy	±0.02mm/m
Repeat Positiona lAccuracy	±0.01mm/m
Control System	Cypcut/Weihong
Position Type	red dot
Power Consumption	≤21KW
Working Voltage	380V/50Hz
Auxiliary Gas	oxygen, nitrogen, air
Fiber laser cutting head	Raytools/WSX/Precitec/Optional
Cooling System	S&A / Tongfei / Hanli industrial water chiller
Work Environment	0-45°C, Moisture 45-85%

Detailed Photos

Quality Inspection
Application
Fiber Laser Cutting Tube Machines are widely used in fitness equipment,oil pipeline,construction machinery bus production, locomotive production, agricultural and forestry machinery, special automobile, electrical equipment manufacturing, laser external processing services and other mechanical pipe processing industries.
Professional for cutting1-10mm thickness of round pipe, square pipe, rectangular pipe and other special-shaped metal pipe, can be suitable for
diameter Ф20-Ф220, pipe length of 6000mm.
Exhibition&Certifications
Company Profile
Founded in 2011,Ranling Intelligent Equipment Technology Co., LTD is a manufacturer specialized in the research development and production of laser cutting machines, laser welding machines and CNC Aluminum profile cutting machines for windows and doors. On the basis of technology development, we have taken in a group of experienced personnel who are talented in senior management marketing and skills of producing. We are located in Jinan Shandong province, one of the best professional machine industries in China. All the products are certificated by CE and comply with international quality standards and are greatly appreciated in a variety of different markets at home and at abroad.
CNC Fiber Laser Cutting Welding Machine for Metal
CNC Machine for Aluminum Profile Window and Door

After Sales Service
1. 1 year Guarantee for the whole machine. 2. 12 months Guarantee and free spare parts supply during this period. 3. 24 hours online service 4. 3-7 days lead time 5. We will provide the Instruction Book, Operational manual and Training Video 6. Provide technical support for the whole lifetime online 7. TT/Ali Trade Assurance payment
Packaging & Shipping
FAQ:
1.How to choose the right to for me? A : Tell us the following information
1) Metal material for welding: choose the most suitable model.
2) Laser welding metal material thickness: the power of the laser generator.
3) Line of business: We sell many products and advise on this line of business.
2.Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and after shipment we will give you CE/Packing
list/Commercial Invoice/ Sales contract for customs clearance.
3.If we want to learn how to operate the machine, Can you provide it?
A:Yes, we can. We can provide the online training by video. We also provide free training course in our company.
4.How to install and use it?
A:We have the instruction Book, Operational manual and Training Video inside the machine. We also can provide the training online by free
