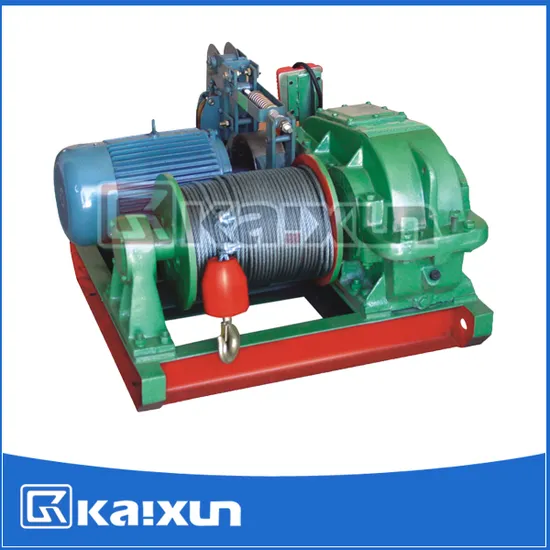

AC Motor Wire Rope Fast Speed Building Electric Winch (JK3)

Product Description

Product Description

Features:
The Fast Building Electric Winch Series can be mainly used in lifting, disassemble, moving and intalling points in construction companies, diggingsand workshop, Main Construction Features: With strong pulling power, steel cable arrange in an orderly way. With safety and reliable.
Brand Name: KAIXUN
Export Markets: Worldwide
Delivery Details:
FOB Port: Shanghai, Ningbo
Lead time: 30days
Payment details: L/C at sight or T/T
The slow building electrice winch series can be mainlyused in lifting , disassemble , moving and intalling points in construction companies, diggings and workshop.
Main constructruetion features:with strong pulling power, steel cable arrange in an orderly way,with safty and reliable. Product Parameters

Model	JK1	JK3	JK5	JK8	JK10
Capacity(Ton)	1	3	5	8	10
Motor (kw)	7.5	22	30	37	45
lifting speed(m/min)	34	30	29	20	19
Voltage (V)	Three phase 380/415
Lifting height (m)	110	200	300		250
Wire rope Φmm	9.3	17	22	26	30
G.W./N.W.(Ton)	0.48/0.46	1.03/1	2.8/2.7	4.2/4	5.2/5
Packing size(cm)	112X110X65	166X147X105	230X190X110	250X190X125	260X200X135

Detailed Photos
Company Profile

Company ProfileKaixun Group --- Zhejiang Kaixun Mechanical and Electrical Co., Ltd., which founded in 1998, is an export-oriented high-tech enterprise. We integrate R&D, production and sales into one body, and we are specialized in manufacturing various 380 items, including hoisting macchinery, financial equipments, electric winch, wlwctric truck, electric forklift and hydraulic car, etc.Our comapny locates at Wenzhou City, Zhejiang Province, China. We covers an area of 59000m², structure area 87000m², and owned 880 sets of production equipment, which includes 260 sets of testing instruments. We have the ability of output RMB1500 million every year.We aim to set up KAIXUN brand, creat top quality, offrt brst service and ensure customer satisfactory. We have passed the certification of ISO9001:2008 quality system. Many products have got CE, GS, RoHS, CB, UL, CUL, and FCC approvals.Now we have been exporting 90% of our products in bulk to Europe, USA, Africa, Middle east, south Asia, Russia, India, etc. Over 120 countries and regions. Our products are highly praiised by our clients.
Packaging & Shipping
