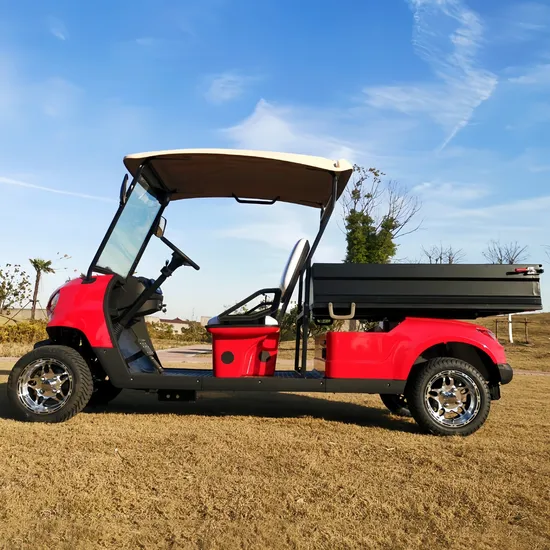

Wholesale 72V/4kw AC System off-Road Fat Tire Mini Small Electric 2-Seater 4X4 UTV Automatic Hydraulic Rod Buggy Golf Utility Cart with Rear Cargo Box

Product Description

LS2040KHCX is a 2 passenger electric 4x4 utv buggy golf cart with box, it has competitive price. The cargo box is manual lifted.
It is suitable for using many places for different applications, such as in hotel, resort, residential community, airport, port, stations, museum, theme park, factory, campus, garden and any places where need a quite and clean vehicles, etc..

SPECIFICATIONS OF 2 passenger electric 4x4 utv buggy golf cart with box LS2040KHCX
Key Components	Controller	Imported or China Local
	Motor	4KW, 5KW or 7KW AC
	Battery	126Ah Lithium Battery (made from LG cells)
Performanceand Dimensions	Passenger Capacity	2
	Range (Loaded) *	80-100kms
	Max.speed	30km/h (can reach 50-55km/h if we do not limit it)
	Min. Turning Radius	5m
	Max. Gradeability	25%-30%
	Max. Loading Weight	480kgs
	Net Weight	520kgs
	Overall Dimensions	3180X1200X1890mm
	Rear box dimenions	1400x1100x250mm
Body and Frame
Frame (Chassis)	Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
Body and Roof	PP plastic front body and rear body; FRP roof
Windshield	Organic plastic windshield, split
Roof supports	Carbon Steel, powder coated
Rear box	Carbon Steel, powder coated
Backrest and Seat	Reborn Sponge, artificial leather + plastic armrest
Floor	Galvanized Steel plate and anti-slip rubber floor mat
Dashboard	Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
Side trim	Plastic
Sider mirror	2pcs, foldable
Electric System
Lighting system and horn	LED 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
Backup Buzzer	12V
Digital Meter	LCD screen, with speedometer, odometer, battery power meter and various indicators
Charger	Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A/15A
Steering, Brake, Transmission and Suspension
Steering System	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	4 wheel hydraulic, front Disc, rear drum brake ,with foot park brake
Accelerator	Stepless speed change
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio12.49:1
Suspension system	Front macphersone independent and rear plate leaf spring + cylinder hydraulic shock absorber
Wheel & Tyre	12x7 Aluminum rim & 215/35-12 Tire

Detailed Photos
Our AdvantagesThe first company in China who specialized in supplying lithium battery powered 72V AC system electric club car golf buggy. It gives more power, longer range, longer life span, cheaper life cost.....
3 Years Warranty Lithium Battery
LG pouch cells made lithium ion battery pack.
72V/126Ah capacity (can be improved as per customer's request), with intelligent BMS to control the charging and discharging of each cell, then to protect the battery properly, BMS can be connected to App on the mobile phone for easy operation.
4000 times life cycles based on 99% DOD.
3 Years warranty to be provided!
Lower life cost, you are deserved to have!72V AC Curtis or SME Controller
Programmable US brand Curtis Controller (72V 400A AC Controller) or Italy made SME brand Controller (72V 450A AC Controller), with regenerative brake and walk-away function.
High and Stable Quality, Powerful, Global 2 Years Warranty.72V 4KW, 5KW or 7.5KW AC Motor
Very Powerful and Maintenance Free AC motor.
Motor power varies from 4KW, 5KW and 7.5KW.
With 7.5KW motor, the climbing ability can be 35%.High Quality Rear End
High quality rear end with aluminum cage, silent, durable and no oil leakingOptional Accessories For Choose
Let us know if you want anything specially!
Company ProfileSuzhou Lexsong Electromechanical Equipment Co., Ltd. over 17 years of experience in the electric vehicle business. 3 production lines with an annual production capacity of 15,000 units .We have exported our electric vehicles to over 40 countries worldwide We are widely used in golf courses, hotels, resorts, parks and gardens, campuses, stations, airports, residential communities, shopping centres, etc. 100 models in 10 categories for different applications. Golf carts, utility vehicles, personal transporters, sightseeing vehicles, electric trucks, rubbish trucks, fire trucks, etc. In addition, we customise your exclusive electric vehicle with short delivery times and high quality.
We can be your reliable partner for electric golf carts in China.
Certifications
Customer Photos
Packaging & Shipping
Packaging and Loading

Container loading qty	Disassembled	Assembled
Qty/20'	4units	2units
Qty/40'	10units	6units
Qty/40'HQ	15units	6units

Our electric vehicles have been exported to more than 40 countries around the world
Due to our reliable quality and competitive prices, our electric vehicles have been exported to more than 40 countries around the world, and are widely used in golf courses, hotels, resorts, parks&garden, campus, stations, airports, residential communities, shopping centres, etc.
FAQ1. who are we?We are based in Jiangsu, China, start from 2015,sell to North America(35.00%),Southeast Asia(20.00%),Africa(10.00%),South America(5.00%),Oceania(5.00%),Eastern Europe(5.00%),Domestic Market(5.00%),Mid East(5.00%),Western Europe(3.00%),Southern Europe(3.00%),South Asia(2.00%),Eastern Asia(2.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Electric Golf Cart, Electric Sightseeing Bus, Electric Truck, Electric Car, Electric Scooter4. why should you buy from us not from other suppliers?-- 12+ years experience in electric vehicle business -- Provide more than 100 models of electric vehicles -- Strong customization capability -- The first company in China who mainly focus on golf cart with lithium battery and 72V AC system5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF;Accepted Payment Currency:USD,CNY;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese
