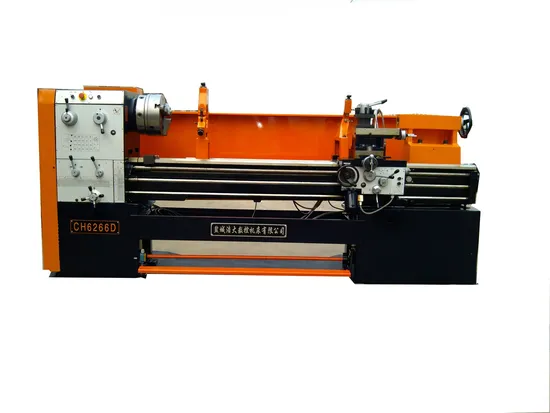

Horizontal Big Bore Lathe Machine (CH6240/6250/6260D)
| US$4,200.00-4,600.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
CH6240/6250/6260D
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Swing Over Bed Dia.
400/500/600mm
Max.Swing Over Cross Slide
225/325/360mm
Max.Swing Over Gap
540/630/730mm
Effective Length of Gap
260mm
Max.Distance Between Centers
1000/1500/2000mm
Spindle Hole
103mm
Max.Travel of Top Slide
130mm
Max.Travel of Cross Slide
300mm
Max.Travel of Tailstock
120mm
Main Motor Power
5.5 or 7.5kw
Transport Package
Wooden Case
Specification
CE, ISO9001
Trademark
UNITECH
Origin
China
HS Code
84591900
Production Capacity
200PCS /Month
Product Description
Product DescriptionHorizontal Big Bore Lathe Machine (CH6240/6250/6260D)
Features:
1. Built in safety clutch.
2. Cross-ribbed headstock for added strength and stability.
3. Anti-friction mounted shafts and dynamically balanced components.
4. Hardened and ground alloy steel gears, shafts and splines.
5. Precision chrome alloy spindle with a big 40mm (1-1/2) thru hole.
6. All cast iron construction.
7. Hardened & precision ground bedways.
8. Quick change gearbox will cut American and metric threads.
9. Foot brake.
10. Dual dialsinch/metric.
Metal Horizontal Lathe Machine (CHB)
Standard accessories:
3-jaw chuck
4-jaw chuck
Steady rest
Follow rest
Foot plate
Optional accessories:
DRO
Quick change toolpost
Chuck protection
Leading screw guard
Toolpost protection
Payment terms:
1. TT 30% advance payment before production, pay the balance before delivery
2. LC at sight
3. Voltage requirements 220V/380V/400V...
| Model | CH6 1 240D | CH6 1 250D | CH6 1 260D |
| Max.swing over bed | 400mm | 500mm | 600mm |
| Max.swing over cross slide | 325mm | 325mm | 325mm |
| Max.swing over gap | 630mm | 630mm | 630mm |
| Effective length of gap | 260mm | ||
| Center Distance | 1000,1500,2000mm | ||
| Bed Width | 330mm | ||
| Spindle hole | 103mm | ||
| Spindle nose | ISO-C8 or D8 | ||
| Spindle taper | Metric 85mm | ||
| Spindle speed(Number) | (15steps)24-1600rpm | ||
| Longitudinal feeds range | 66kinds 0.072-4.038mm/rev | ||
| Cross feeds range | 66kinds 0.036-2.019mm/rev | ||
| Metric threads range | 66kinds 0.5-28mm | ||
| Inch threads range | 66kinds 1-56inch | ||
| Moudle threads range | 33kinds 0.5-3.5mπ | ||
| Diametral threads range | 33kinds 8-56D.P | ||
| of top slide | 130mm | ||
| of cross slide | 300mm | ||
| Max.size of toolshank | 25*25m 2 | ||
| Dia.of tailstock sleeve | 65mm | ||
| Taper of tailstock sleeve | MT5 | ||
| of tailstock | 120mm | ||
| Main drive motor | 5.5 or 7.5KW | ||
| Rapid traverse motor | 250W | ||
| Coolant pump motor | 125W | ||
