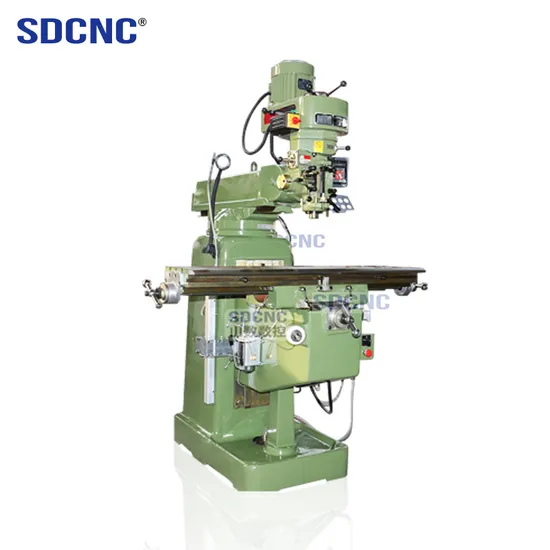

Milling Machine 3h High Speed Precision Low Cost Turret Milling Machine
| US$2,500.00-3,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3H
Type
Knee-and-Column Milling Machine
Object
Gear
Structure
Bed type
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
254X1270
Machine Load
300
X/Y/Z-Travel (with Feeder)
805/36/320
RAM Travel
540
Transport Package
Wooden Box
Specification
1770*1780*2300
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
177.00cm * 178.00cm * 230.00cm
Package Gross Weight
1100.000kg
Product Description
Product Performance
The VMC-M5 is a vertical turret machining center with excellent stability and rigidity. The castings of this CNC lathe are made of
cast iron with excellent sensitivity, excellent stability and no deformation problem. The spindle of the machine is made of chromium
combined with high quality steel, both cutting ability and precision of the machine are very excellent. The vertical milling head
adopts unique inverted hanging design, wihch provides excellent precision to the processing. it is also very simple to operate and
easy to brake.
The milling head adopts parts imported from Taiwan and assembled in China. The machine is compact structure and has high
flexibility. The milling head can turn around 90°, 45° before and after rotation. It equippes with manual oil pump for centralized
lubrication of work table and lifting table. It is suitable for hardware parts, machinery parts, mold and automation manipulator and
other industrial applications.
| Table size | mm | 254x1270 |
| Machine load | kg | 300 |
| X/Y/Z-travel (without feeder) | mm | 840/390/320 |
| X/Y/Z-travel (with feeder) | mm | 805/36/320 |
| Milling head tilt | 45° (F/B; L/R) | |
| Ram travel | mm | 540 |
| Spindle feed ratio | mm | 0.045/0.086/0.142 |
| Taper of spindle bore | R8, NT30 | |
| Spindle motor | HP | 3 |
| Spindle speed (@50Hz) | rpm | 65-4660, 16 steps |
| Net weight of machine | kg | 1100 |
