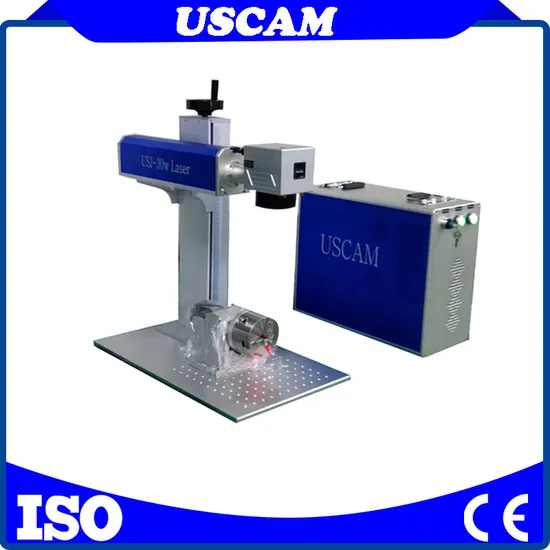

Mini Small Portable 30W 50W 100W CNC Fiber Laser Marker Label Printing Laser Marking Machine

Product Description

Product Description
What's a CNC fiber Laser marking machine ? and it's Working principle:

Fiber laser marking machines use laser beams to permanently mark the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "engrave" traces through the chemical and physical changes of the surface material caused by light energy, or to burn part of the material through light energy, so as to engrave exquisite patterns, Trademarks, characters, barcodes and other graphics are mainly used in some occasions that require more finesse and higher precision. Used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments,glasses,watches,jewelry, auto parts, plastic buttons, building materials,PVC pipes. The so-called fiber laser marking machine means that the marking machine uses a fiber laser. The fiber laser has the characteristicsof small size (no water cooling device, air cooling), good beam quality (fundamental mode), and maintenance-free.

Features of fiber laser marking engraving machine:

1.Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality, high reliability, no consumables, maintenance-free. 2.Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. 3.Close to the ideal beam, USB interface, output control, optical scanning system,laser repetition rate high,high-speed without distortion.

Parameter:

NO	Model	USJ-20W(30W/50W/100w)
1	Laser power	20W(30W/50W/100w)
2	Working area	100*100/200*200mm//300*300mm/400x400mm (optional)
3	Cooling system	air cooling
4	Table	Aluminum alloy table
5	control software	EZCAD control software
6	Operation system	Windows 7/8/10
7	Laser Wavelength	1064nm
8	Graphic format supported	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT,etc.
9	Response time	0.5ms
10	Life span	100,000 hours
11	Frequency of pulse	20-100KHz
12	Max marking depth	≤0.4mm
13	Marking speed	≤7000mm/s
14	Marking lines	1-10 lines(in the marking area)
15	Minimum line width	0.01mm
16	Minimum character	0.15mm
17	Repetability accuracy	±0.002mm
18	Resolution ratio	0.1mm
19	Marking content	Text, pattern, date, bar code, etc
20	Unit power	≤1.2KW

Parameter of fiber laser source
Pulsed fiber laser	20W QB	30W QB	50w QB
Wavelength(nm)	1060~1085	1060~1085	1060~1085
Polarization	Random	Random	Random
Optical isolator	Yes	Yes	Yes
Nominal average output power (W)	≥20	≥30	≥50
Single pulse energy (mJ) @20kHz	1	1@30kHz	1@50kHz
Beam quality(M2)	<1.8	<1.8	<1.6
Beam Diameter(mm)	6~8	6~8	6~8
Pulse duration(ns)@20kHz	<120	<120@30kHz	90-150@50kHz
Pulse repetition rate(kHz)	20 - 60	30 - 60	50-100
Output Power Tunability(%)	10-100	10-100	10-100
Output Fiber Cable length(m)	2.0	2.0	2.0
Working voltage(VDC)	24±1	24±1	24±1
Power consumption(20ºC)(W)	200	300	340
Cooling	Forced Air Cooled	Forced Air Cooled	Forced Air Cooled
Dimension W×D×H(mm)	215×286×95	215×286×95	260×391×120
Operating temperature	0ºC~40ºC
Store temperature	-10ºC~60ºC
humidity	30%~85%

Application

It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc. · Electrical Engineering and Electrical part and component · Mobile (Cover,battery,keyboard, I Phone Case) · Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft · Building materials,PVC pipe · Car motor car spare part ,Insturment and meters and cutting tool · plastic case,aviation and aerospace, · military product,hardware fitting and accessory,sanitary appliance · food and beverage ,Medicine package and medical instrument,solar Pv industry

Material	CO2 Laser machine	Material	fiber laser machine
Wood	√	Aluminum	√
Acryic	√	Stainless Steel	√
Fabric	√	ABS	√
Glass	√	Brass	√
Coated Metals	√	Carbon Fiber	√
Ceramic	√	Carbon Nanotube	√
Delrin	√	Cobait Chorme Steel	√
Cloth	√	Copper	√
Leather	√	Colored Delrin	√
Marble	√	Diallyl Phthalate	√
Matte Board	√	Gless Filled PPEK	√
Melamine	√	Gless Filled Telfon	√
Paper	√	Magnesium	√
Mylar	√	Metal Plated Ceramics	√
Press Board	√	Molybdenum	√
Rubber	√	Mild Steel	√
Wood veneer	√	Nylon	√
Fiber Glass	√	Polybutylene Terephthalate	√
Paintde Metals	√	Polysulphone	√
Title	√	PET	√
Plastic	√	Santoprene	√
Cork	√	Silicon Carbide	√

Customers' feedback

# Customers are using machines very well and almost no problem. # Always get returned orders from agents and customers. # 10 points of praise for service from our customers

Certifications & Sevice
QC
Having been export to USA, Europe, Africa, Central America, Latin America, Mexico, UAE, Yemen, Pakistan, India, Korea, etc.
We have CE, FDA certification for easy exporting and importing.
Service
# 24 months-quality guarantythe machine with main parts(excluding the consumables) shall be changed free of charge if there is
any problemduring the warranty period without human damage.
# We will provide the consumable parts at an agency price when you need replacement.
# 24 hours on line service each day, by wechat, QQ, e-mail, cellphone or remotely controlled online.
# Lifetime patience and professional question and answer service(free technical support), even if it exceeds the warranty period.
# English manual and video for machine using and maintaining will send to you with the machine.
# Free training course at our plant.
# Our staff can be sent to your company to install or adjust if necessary.

Company Profile

USCAM specialized in in fiber laser cutting machine, laser marking machine, laser cleaning machine, laser welding machine, co2 laser, CNC router (ATC, Stone machine, molding machine, vibrating knife etc), plasma (gantry plasma, 5 axis, 8 axis and robort plasma etc) and other fields are the leading companies in China's laser industry since 2003. All machines have passed CE FDA certification, and the main configuration adopts top components imported from Italy, Japan, Germany, the United States, etc., such as Synrid, Coherent, HSD spindle, THK bearing system, Siemens control system, YASKAWA servo. Relying on strong high-tech strength, it has been highly recognized by relevant international quality systems and government departments in product software research and development, quality inspection files, etc. High-quality products and excellent after-sales service have enabled the company to reach an excellent level, and have been widely supported by customers and agents.

FAQ
Q1:How to choose a CNC fiber laser marking machine?
1).Comfirming the marking field lens according to your marking size.

Lens model	Marking size	Power Aviliable
F160	110*110mm	20w/30w/50w
F210	150x150mm	20w/30w/50w
F290	200*200mm	20w/30w/50w
F430	300*300mm	30w/50w
F580	400x400mm	50w
Note: 100w is Quartz lens (Since normal lens easy to be broken because of 100w is bigger power in marking)

2).Choose a big brand laser source (Standard is Raycus QB type)
3).Confirming if you need extra optional parts according to your marking requirements:
Q2: what's the Payment term ?
30% T/T in advance and 70% before delivery.
Q3: What's the process of the order ?
1).Proforma Invoice
If you like the machine we offered, then we will make you an Proforma Invoice. Then you could pay 30% T/T in
advance, thus we arrange the production for you immediately.
2).Production:
After the 30% T/T as deposit, we will produce the machine immediately, then after after it finished, we will take
video test and pictures for you. If you agree, you could pay the balance.
3).Shipping matter:.
You could ship with your own shipper if it's convenient. and we could help to ship for you.

Get more information, please feel free contact Grace: export01. My pleasure to help you. :):)
