2023 New Metal Scrap Crusher Hydraulic Hammer Iron Crusher for Recycling

Product Description

Product Description
2023 New Metal Scrap Crusher Hydraulic Hammer Iron Crusher For Recycling
Metal crusheradopts high-speed rotating spindle swinging hammer to hammer, crush, kneading and other combined operations of metal materials in the crushing chamber, effectively realizing a series of crushing operations of metal materials, such as rust removal, decontamination, compaction and forming. It is the core equipment of scrap metal crushing production line equipment. It is widely used in the recycling of scrap metal, which can effectively reduce the recycling efficiency of metal materials and has high economic value.
Final product The materials After high-speed impacting and extruding into a spherical iron block with 50-100mm.
The rust, paint and other impurities on the surface of material will be separated during extruding. Product Application Scrap metal crusher is widely used in the crushing of all kinds of scrap metal, including automobile shell, engine shell, aluminum alloy doors and windows, waste castings, metal briquettes, paint barrels, bicycles, metal barrels, motorcycles,scarp iron,washing machines, refrigerators, electric wardrobes, steel plate offal, etc., with convenient maintenance, simple structure and large capacity.
Working Principle
The metal crushing equipment line is composed of chain conveyor--- forced feeding system---- crusher host---- output shaker ---- conveyor belt---- strong magnetic barrel separator---- metal conveyor (iron) ---- non-metallic conveyor---- dust collector ---- electric control cabinet, intelligent production saves time and effort, realizes stable, automatic and safe operation of the entire production line, and significantly improves efficiency.
Product Parameters

MODEL	Rotor Dia (mm)	Capacity (tons/hour)	Rotate Speed (r/m)	Power (Kw)	Matching host size (mm)	Weight (tons)
MC-1000	1000	1.5-3	680-750	75-110	3000*2000*1900	4.5-10
MC-1200	1200	3-5	680-750	110-220	4200*2700*3500	15-30
MC-1400	1400	5-8	650-700	220-315	4800*2500*4300	28-45
MC-1600	1600	8-10	650-700	315-450	5800*2700*5000	33-50
MC-1800	1800	12-15	650-700	450-560	5800*3000*5000	38-80
MC-2000	2000	15-25	650-700	560-1100	6000*3400*5500	70-100

Detailed Photos

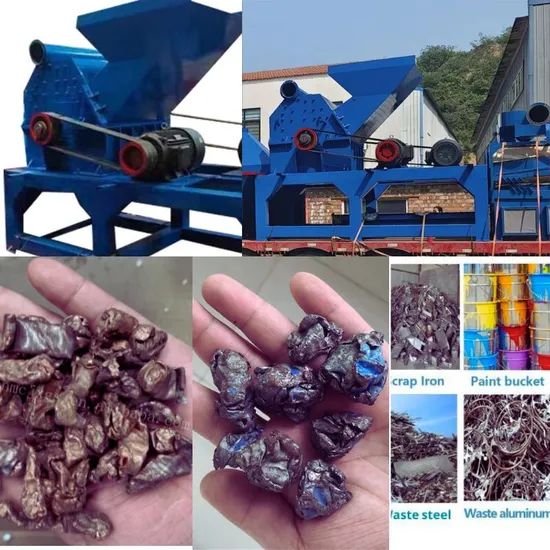

Display of metal crushing core components
Performance Characteristics of Metal Crusher 1. The whole machine is equipped with a dedusting system to eliminate pollution.
2. The capacity of crushing increased by 18% compared with the original model by increasing the feed port.
3. Equipped with automatic feeding and discharging iron aluminum separation, it can separate iron and aluminum of the finished product after crushing.
4. Design a variety of host motor models for users to choose on demand.
5. The particle size and diameter of the finished product are 10-100mm, which can be adjusted at will, and the discharge material is even.
6. The new type of metal crusher is driven by the reduction motor, which uses 20% less electricity than the general metal crusher.
7. Both sides of the body are welded to ensure that the body is strong and durable. Packaging & Shipping
Scarp Metal recycling crusher line will be packed Equipment below 1400 modal equipment is shipped in containers, and larger than 1400 equipment is transported in bulk.according to the specified time and shipped to the customer's designated port.
Company Profile
Henan Mingchuang Machinery Manufacturing Co., Ltd. is a professional supplier of crushing, sorting, drying equipment, environmental protection machinery. With 18 years of experience in machinery and equipment processing, The production of multifunctional shredder machine, metal crusher, plastic crusher washing line ,copper granulator recycling equipment, etc.
we can provide highly customized solutions according to customers' needs, and win the recognition of industry users with advanced technology and excellent product quality. For a long time, we always adhere to the road of globalization,we have exported to Central Asia, Southeast Asia, South America,and other more than 130 countries and regions.
FAQ
1,How do I get the right device for my needs? Tell me what are your raw materials? Metal, plastic, wood, plants, copper wire and more? What is the approximate size of the raw material in millimeters? Describe the shape of the raw material. How many kilograms of raw materials are processed per hour? Capacity 500-1000kg or 5000-8000kg? What is the final product? 50mm blocks or separated metal and plastic particles and so on? 2,Why choose us?We are a supplier with 15 years of production experience, can support customized equipment according to your requirements, no intermediate traders to earn the difference, equipment support pre-shipment testing services, complete delivery services and installation operation guidance, one-year shelf life, support factory training guidance services, etc.
