Qt4-25 Automatic Hollow Solid Concrete Cement Pavement Brick Wall Building Material Brick Production Line Block Making Molding Machine with Cheap Price

Product Description

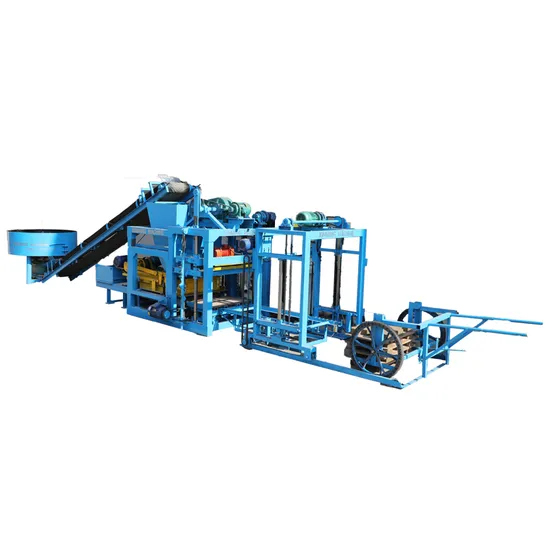

QT 4-25 Automatic Block Making Machine
Product Description

QT4-25 has full-automatic and semi-automatic models.
Our machines have reasonable design and compact structure, realize directional vibration, frequency conversion braking, and immediately cancel energy consumption, without manual feeding, which greatly reduces labor intensity. QT4-25 has 3 versions.
First one-QT4-25A. The full-automatic model can automatically place the materials and feed pallets. After the bricks are made, there is also a brick transfer system that can automatically discharges bricks and stacking machine will stack the bricks. There are two modes: automatic mode and manual mode, which can be switched according to requirements with one button. It's very easy to operate, and labor saving.
Second one-QT4-25B. This version can automatically feed materials and pallets, but there is no stacking machine, and the bricks need to be fork out manually. Which is very friendly to people who do business for the first time and reduces investment costs.
Third one-QT4-25C. One-key start version. There is no need for workers to operate the controller during the whole process, all the programs are set for the time, and the host can automatically feed the materials, but the pallets need to be artificially placed and the bricks are artificially crossed out.

Product Parameters

Name	QT4-25
Oversiaze	3700*1700*2300 (mm)
Pallet Size	850*550*20 (mm)
Power	16.35 KW
Electrical Source	380V/50Hz or request
Mixer	JQ500

No.	Model	Usage
1	QT4-25 host machine	Making blocks
2	JQ500 Mixer	Mixing materials
3	Conveyor Belt	Transporting materials
4	Stacking Machine	Staking blocks
5	Pallet Feeder	Placing pallet
6	Block Transfer System	Transporting blocks
7	PLC Controller	Intelligent control system
8	Trolley	Transporting a certain amount of blocks
9	Accessories & Tools	Spare parts

Advantages

1. Automatic. QT 4-25 Block Making Machine is fully Automatic. It has two modes: automatic mode and manual mode, can be switched by one botton, which is very convinent.
2. High efficiency. The Forming period is 20-25s, and every time can make 4 pcs(400*200*200 mm) blocks, which ensures a certain amount of production, suitable for commercial use.
3. Intelligent operating system. Our machine use PLC intelligent control system, automatic control, automatic fault diagnosis, easy to operate.
4. Multipurpose. This machine can make hollow brick, colored paving brick, curb stones etc.
5. Vibration Molding. Our machine adopts flat vibration, mould vibration, and squeeze compression vibration. The blocks can be maded with average density and high strength.
6. Fashionable. We provide customized services. You can choose the color and shape by yourself, and can also custom your own logo.

Machine Details

Sample Display

Finished product display
Service & FAQ
FAQ
Q1. How do I choose the right machine?
A: We will recommend suitable machines for you according to your production, budget, and actual needs.
Q2. What kind of bricks your machines can produce?
A: Our machines can produce different kinds of bricks by changing molds, such as hollow brick, solid bricks, paver brick, houdis brick, curbstone and color brick. We can also customize for you.
Q3. How to use the block machine?
A: We will provide you with meticulous video and full text guidance, and the big machine can let engineer fly to your side for installation and training your workers.
Q4. Do you test all goods before delivery?
A: Yes. We will test the machine before shipping to ensure that the machine is in the best condition before shipping.
Q5. What's the payment item?
A: By TT or Western Union or any method that is convenient for you. After receiving 30% deposit, we start production. After finishing production. We will take some photos or video of your products for you to watch. The rest 70% money will be paid before delivery.
Q6. What about the warranty?
A: The warranty period is 2 years. If it is a quality problem, the quick-wearing spare accessories will be replaced free of charge within 3 months. Especially,our factory will be equipped with enough quick-wearing spare accessories before delivering, no need to buy additional quick-wearing spare accessories within 2 years.
