Ss Industrial Water/Gas/Control Valve Male Female Threaded Stainless Steel SS304 316 CF8 CF8m Brass Mini Ball Valve Pn63 3/8"

Product Description

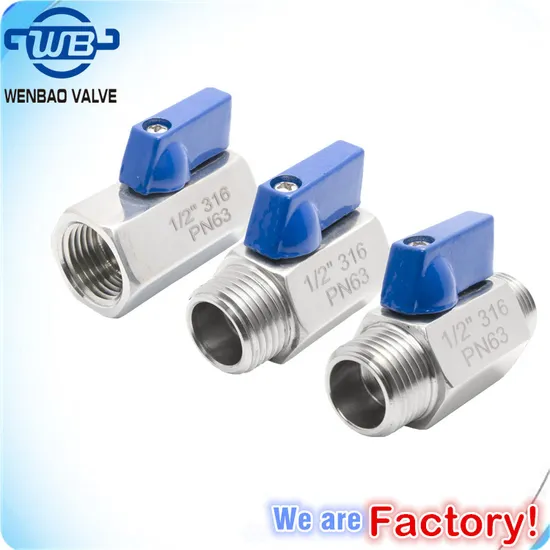

WB-82 Stainless Steel Mini Ball Valve (F/F)
Features:
PIPE THREAD IN ACCORDANCE: NPT, BSPT, BSPP
TEMPERATURE RANGE: -20ºC~150ºC
SUITABLE MEDIUM: WATER, OIL, AIR
NOMINAL PRESSURE: 1.6~6.4MPA
INVESTMENT CASTING BODY
MATERIAL: CARBON STEEL/SCPH2/WCB
STAINLESS STEEL/304/SCS13
STAINLESS STEEL/316/SCS14

Main Parts and Materials

1	Body	SS304/SS316	5	Screw	SS304/SS316
2	Cap	SS304/SS316	6	Stem	SS304/SS316
3	Seat	PTFE	7	O-Ring	NBR
4	Ball	SS304/SS316	8	Handle	SS304/SS316

Main Dimensions

DN	G	D	L	W	H
6	1/4"	7	42	23	26
10	3/8"	7	42	23	26
15	1/2"	9	46	23	28
20	3/4"	12	54	23	31
25	1"	15	62	23	34
