Wholesale Plastic PVC UPVC Pipe Extruder Machinery/Water Supply Pipe/Cable Laying/Agricultul Drip Irrigation Hose/Plumbing Pipe Making Machine

Product Description

Factory Price Plastic PVC UPVC Pipe Extruder Machinery/Water Supply Pipe/Cable Laying/Agricultul Drip Irrigation Hose/Plumbing Pipe Making Machine
Product Description
PVC & UPVC Pipe Production Line is used to produce PVC & UPVC Pipe with different diameter and thickness.It is mainly used for the transportation of high pressure or corrosive gas,and is widely used in the machinery,coal mine, oil, chemical, agriculture irrigation,gas and building.
Produce Process:
PVC powder + Additive →Mixing →Spring Feeding →Twin Screw Extruder →Mould →Vacuum Calibration Tank →Hhaul-off Machine →Cutting Machine →Stacker
Performance & Advantages
1.PVC pipe production line is mainly used in the manufacture of the plastic PVC pipe with various tube diameters and wall thickness in the aspects such as the agricultural and constructional plumbing,cable laying etc.
2.This set is composed of the conical twin-screw extruder,vacuum calibration tank,printer,haul-off,cutter,stacker, etc.
3.The extruder and extractor adopt the imported AC frenquncey control device.
4.The vacuum pump and the main motor adopt the famous brand.
5.The haul-off has many different kinds of Model,such as two-claw, three-claw, four-claw, five-claw, six-claw.
6.About the cutter, you can choose the saw blade cutting type or the planet cutting type.
7.We also can offer some auxiliary machine about the pipe extrusion line.
8.With its wide range including various technical solutions,Chening's production does not only include standard machines,but also offers complete pipes extrusuin line,tailor made according to the customers' requirements,still assuring high performances and competitive prices.
9.The lines can produce pipes in PVC materials, with diameters starting from a few mm to 630mm.
Technical parameters
1.Main Technical Standards:

Item	PVC63	PVC160	PVC250	PVC315	PVC450	PVC630
Pipe dia.(mm)	16-63	75-160	125-250	180-315	200-450	355-630
Vacuum tank length(m)	6	6	6	9	9	9
Pressure of vacuum	0.03-0.80
Max hauling force(N)	10000	15000	20000	25000	30000	50000
Hauling speed(m/min/max)	10	6	4	3	2	1.4
Refilled water volume (m3/h)	5	6	7	8	9	12
Production Line length(m)	20	22	30	30	36	42

2.Machine list:
(1) Compulsory devices:

1	Screw loader	1 set
2	SJSZ Series conical twin-screw extruder	1 set
3	Mould	1 set
4	Vacuum calibration tank	1 set
5	Haul-off machine	1 set
6	Cutter machine	1 set
7	Stacker	1 set

(2) Optional Devices:

1	High speed mixer/mixer unit	1 set
2	Pipe Crusher	1 set
3	Air compressor	1 set
4	Industrial Chiller	1 set
5	Grinding Machine	1 set
6	Thermocontroller for die head	1 set
7	Dosing machine	1 set

(3) Payment, delivery and after sales services:

1	Payment terms	30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
2	Delivery time	Around 35-40 wroking days after receipt of prepayment
3	Packing method	Wooden case/film package
4	Guaranteed time	1 Year
5	After sale service	Send 1-2 engineers to customers' factory to help them install, test the machine, and train their workers. This is chargeable

Remarks: all information above is only for refererence; please gather the exact data by contacting us. Picture For Reference

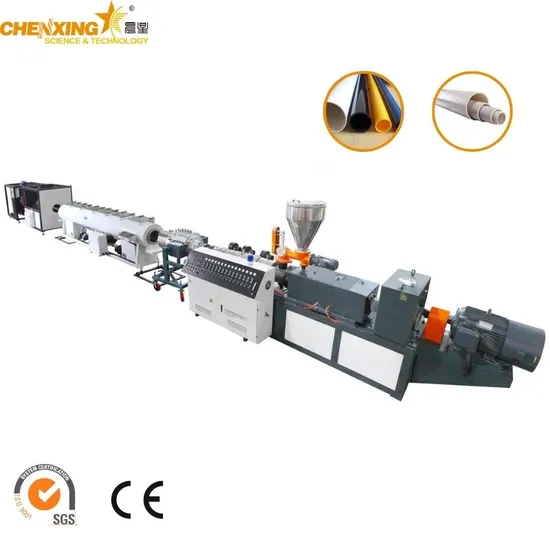

1.Machine Display:
2.Final Product Display:
3.Factory Display:
4.Other Hot Sale Product Display:
5.Packing&Shipment:
Company Profile
Zhangjiagang City Chenxing Machinery Ltd. CO. was established in 2002, its predecessor is Zhangjiagang City Samsung Machinery Plastic Factory, focusing on the production of plastic machinery for more than 20 years. It is a progressive enterprise integrating new product development, product manufacturing, sales and trade in one.
The main products include: pipe, profile, sheet and pelletizing extrusion machinery, waste plastic recycling production machinery, and all kinds of auxiliary machines necessary in the process of plastic production, such as loading machines, mixers, formulators, grinding machines, mould temperature machines, chillers, etc.
We sincerely welcome customers at home and abroad to cooperate with us, and sincerely welcome to visit our company.
Chenxing is willing to work with you to create a future together.
FAQ
Our service:
1.Ability to provide the customized plastic extrusion solutions
2.Complete sales system covering the pre-sales, sales and after service jobs
3.Commissioning & installation service in customer plant
4.We can send you the video of the running machine. You are welcome to come to visit our factory,and see the machine running
5.We can design the machines according your requirements(materil,power,color),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years
FAQ:
Q:Where are the strengths of our company?A: Our company regards "Integrity based, and customer oriented" as its business philosophy, and regards "set an example for the industry, and create excellent plastic machinery" as its business targets.
Also we have accumulated high-quality and stable suppliers, experienced technical team and first-class manufacturing team in the past over ten years.
Q: Why choose us?
A: we are the professional manufacture focus on Pipe Production Line/ PVC Machine For The Pipe Extrusion Line/ UPVC Pipe Production Line / CPVC Machine For The Pipe Production Line and etc...
Q. After-sales service
A: Send engineers to install, test the machines and offer technology guidance and worker training at customers' factory.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: What kind of certification do you have?
A:Our products have obtained ISO9001 and CE certification,the quality can be guaranteed.We focus on thefield of extrusion machine,and aim to be the best manufacturer of this field.
Questions for Buyers
Pls think about the following questions and then send your messeage to my email. And we will offer you our quotation ASAP.1.The material of this pipe,PVC powder or PVC granule.2.What is the diameter of the pipe?
3.Please tell me the voltage in your factory default voltage is 380V,50HZ,3 phrase.
CONTACT US:If you need to know more information about our company or our product,welcome to contact me and visit our factory!
Our company hope to cooperate with you to create a better future! ! !
