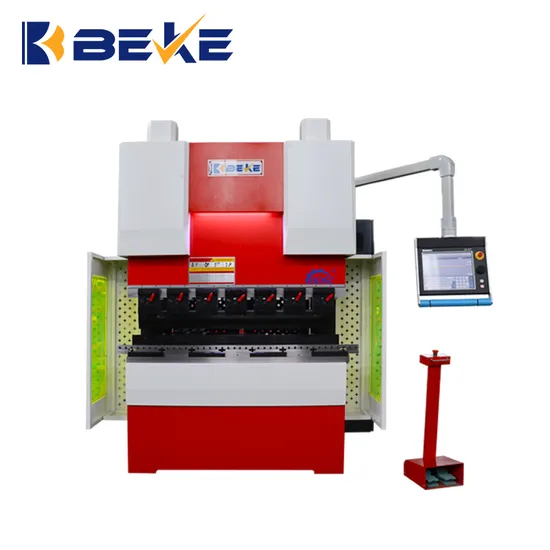

63ton Bending Machine 5mm Thickness All CNC Electrical Press Brake
Basic Info.
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008
Automation
Automatic
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel
Type
Press Brake
Bending Force
63ton
Bending Length
1500mm
Main Servo Motor
15X2 Kw
Weight
5000 Kg
Main Motor
Japan SANYO
Transport Package
Wooden Box or Container Directly
Specification
2300x1700x2560
Trademark
BEKE
Origin
China
HS Code
8462290000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| ITEM | VALUE |
| Model | WE67K 63T1500 |
| Slider Stroke | 150mm |
| Max opening Height | 540mm |
| Throat Depth | 350mm |
| Length of Working Table | 1500mm |
| Approach Speed | 250 mm / sec |
| Dimension | 2300x1700x2560 |
| Weight | 5000KG |
| CNC system | DA66T |
| Main servo Motor Power | 15x2 KW |
| Warrenty | 2 years |
| --Energy Conservation One of the advantages of pure electric servo drive technology is that the input power of the motor is proportional to the load power, and the power consumption is high during bending. The power consumption is low when the slider rises with no load, and there is basically no power consumption when the slider stops The pure electric servo Press brake does not use hydraulic oil, does not replace hydraulic oil, does not replace hydraulic components, does not replace or replace the system daily hydraulic oil leakage, and does not have waste oil treatment and pollution. Fast sliding speed, high production efficiency, and fast slider speed --Environment Protection The pure electric servo Press brake does not use hydraulic oil, does not replace hydraulic oil, does not replace hydraulic components, does not replace or replace the system daily hydraulic oil leakage, and does not have waste oil treatment and pollution. Fast sliding speed, high production efficiency, and fast slider speed. --High Bending Accuracy The bending angle error of the hydraulic Press brake is within ± 1 °, while the main drive of the servo Press brake is driven by the servo motor to drive the lead screw, which has higher transmission accuracy. By measuring the bending angle of various specifications of plates, the bending angle error can be well guaranteed to be within ± 0.5 ° | |
