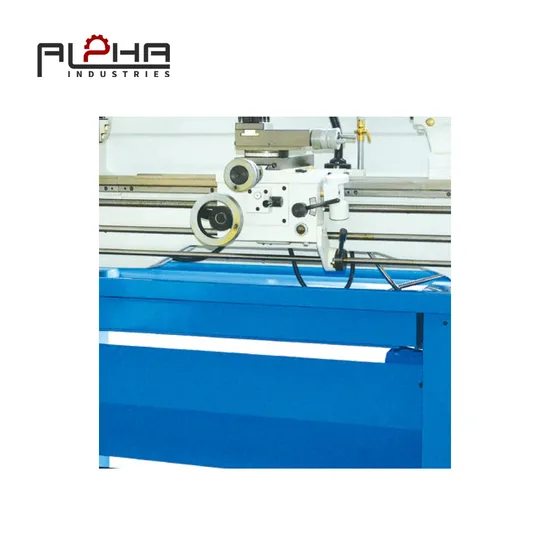

High Quality Bl-1440d Precision Gear Head Lathe Universal Horizontal Lathe

Product Description

Product Description
High Precision Lathe Bl-1440d Precision Gear Head Lathe Bench Lathe Turning Center Universal Horizontal Lathe
No change gear in tool box
The thread category complete,not only cutting metric thread and imperial thread,but also cutting diametral thread and module thread
Minimum Cross feed 0.01mm/rev,Minimum Longitudinal feed 0.046mm/rev Product Parameters

Basic Info.
Model NO.	BL-1440D Precision Gear Head Lathe		Power Source	Electric
Controlling Mode	Artificial		AutomaticGrade	Manual
Setting Mode	Floor-type		Precision	High Precision
Certification	CE,ISO 9001		Condition	New
Specification	1930x760x1530(1000mm)		Trademark	Alpha industries
Origin	China		Production Capacity	100 Sets/Year

TECHNICAL PARAMETERS
Model No.	Unit	BL-1440D
swing over bed	mm	360
Swingover crOss slide	mm	224
Swing ingap diameter	mm	502
length in gap	mm	210
center height	mm	179
distance between centers	mm	1000
spindle bore	mm	3852
spindle nose		D1-4 D1-5
taper in nose		No5 morse
speeds number		8
speeds range	r/min	70-2000
cross slidetrave	mm	170
compound rest travel	mm	95
lead screw thread		8TPI.or 3mm pitch
feed rod diameter	mm	19
cutting tool max section	mm	16×16
threads imperial pitches		42 Nos.4-112T.PI
threads metricpitches		44 Nos.0.1-7mm
threads diametral pitches		25 Nos.16-112DP
threads module pitches		34 Nos.0.1-1.75MP
longitudinal feeds imperial		24 Nos.0.00168-0.1175"/rev
longitudinal feedsmetric		24 Nos.0.046-3.249 mm/rev
cross feeds imperial		32 Nos.0.00046-0.03231"/rev
cross feeds metric		24 Nos.0.01-0.703mm/rev
qull diameter	mm	32 or 42
quill travel	mm	100
quill taper		MT3
main motor power	kW	1.5(2HP)
coolant pump power	W	40(1/16HP)
packing size	mm	1930×760×1530(1000mm)
NW/G.W.	kg	540/645(1000mm)

Standard Accessories

3 jaws & 4 jaws chuck	Steady rest
Follow rest	Stand
Micro carriage stop	Halogen work lamp
Coolant system	Foot brake
Thread dials	Face plate
Toolbox & tools

Optional Accessories

Quick change tool post	Turning tools
Taper turning attachment	Digital readout
Leadscrew cover	Collet attachment
Chuck guard

Company Profile
Certifications
Exhibition
Packaging & Shipping
FAQ
FAQs
Q1: How is the warranty?
A1: Warranty time is 15 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: We have stock for popular models, we produce according to order.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 40 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services under Alpha brand.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
