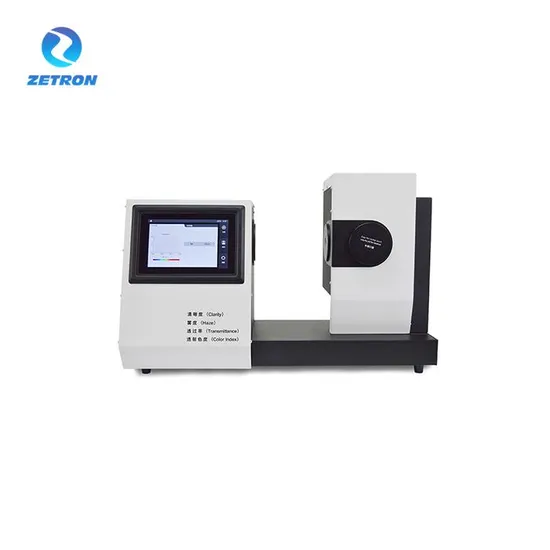

Zetron CS720 Transparency Transmission Haze Meter

Product Description

CS-720 Transparency Transmission Haze Meter Product Description CS-720 clarity and haze meter is suitable for one-stop measurement solution of clarity, color, haze, spectral transmittance and total transmittance of transparent and translucent materials such as plastic, film, glass, LCD panel and touch screen.

Highlights Definition measurement parameters
7-inch capacitive touch screen for more convenient operation
Android operating system
Follow ASTM and ISO standards
It has a comprehensive color measurement function in the industry

Products Features 1.Follow ASTM and ISO standards
The Clarity and Haze Meter cs-720 complies with both ASTM and ISO haze measurement standards. The standards followed are: GB / t2410, ASTM d1003 / d1044, iso13468 / iso14782.
2.It has comprehensive measurement functions in the industry
The Clarity and Haze Meter CS-720 can measure dozens of color parameters such as lab, yellowness, whiteness, Gardner, platinum cobalt color and so on.
Measurement of clarity, haze, spectral transmittance and light transmittance
3.Provide comprehensive test data
Provide A, C and D65 measurement light sources for haze measurement, and 24 measurement light sources for color measurement.
It can realize the compensated measurement of transmittance and provide more accurate transmittance test results.
Provide powerful Clarity,haze, color and transmittance measurement and analysis software, which can operate on the computer and print test reports.
4.Better test experience
7-inch Android operating system and touch screen touch control enable more convenient operation and smoother experience.
The open sample bin can liberate the limitation of sample size. You can measure horizontally or vertically according to different samples.
Provide abundant fixtures to meet the measurement needs of different forms of sheet and liquid samples.
Product Parameters

Model	CS-720
Light source	Haze / transmittance:CIE-A,CIE-C,CIE-D65 Chromaticity index:A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84
Standards	ASTM D1003/D1044,ISO13468/ISO14782 JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08,CIE No.15, ISO 7724/1,ASTM E1164,DIN 5033,Teil7,JIS Z8722,Condition C standard
Parameters	HAZE,Transmittance(T%),Clarity(C%),Spectral transmittance,CIE Lab,LCh,CIE Luv,XYZ,Yxy,Hunter Lab ,MunsellMI, CMYK,Whiteness WI(ASTME313-00,ASTM E313-73CIE/ISOHunter,Taube Berger Stensby),Yellowness YI(ASTM D1925, ASTME313-00,ASTM E313-73),Tint(ASTM E313-00),Homochromatic heterospectral index MilmAPHA,Pt-Co, Gardner,chromatic aberration (ΔE*abΔE*CH ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*94,ΔE*00)
Spectral response	CIE spectral function y / V( λ)
Wavelength range	400-700nm
Wavelength interval	10nm
Geometry	0/d
Illumination and test aperture size	18mm/25.4mm
Range	0-100%
Haze resolution	0.01%
Haze repeatability	Repeatability ≤ 0.05% when haze < 10%; Repeatability ≤ 0.1% when haze ≥ 10%; Transmittance repeatability ≤ 0.1%
sample size	Thickness≤145mm
Display	7-inch capacitive touch screen
Store data	Mass storage
Interface	USB-A,USB-B
Power Supply	220V(Built in power cord)
Working temperature	5 ~ 40 ºC, relative humidity 80% or lower (at 35 ºC) no water vapor condensation
Storage temperature	-20 ºC ~ 45 ºC, relative humidity 80% or lower (at 35 ºC) no water vapor condensation
size	Length x width x height:598mmX247mmX366mm
Weight	12kg
Standard acessory	PC management(Haze QC)
Optional	Measuring fixture, haze standard sheet, customized caliber plate
