ASTM D323 Full Automatic Vapor Pressure of Petroleum Products Tester

Product Details

Product Description

Product Description

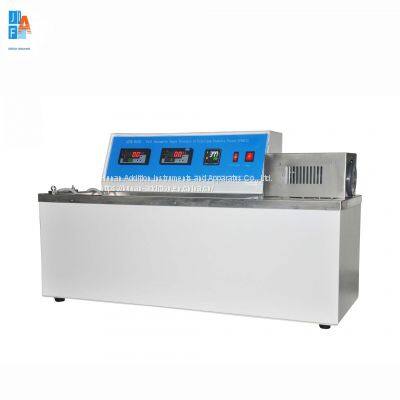

Full Automatic Vapor Pressure of Petroleum Products Tester
ASTM D323
Model: JF8017Z
Product Introduction
This instrument is mainly suitable for detecting the vapor pressure of gasoline, volatile crude oil and other volatile petroleum products; it is not suitable for detecting the vapor pressure of liquefied petroleum gas.
Technical Parameter
1. Applicable standard: ASTM D323 ISO3007 NFM07007
2. Temperature control method: high-quality PID digital thermostat
3. Temperature control: 37.8±0.1℃
4. Oscillation mode: horizontal automatic oscillation without manual operation
5. Working unit: two oxygen bombs
6. Pressure correction: externally connected to a pressure regulator, internally equipped with a deviation correction function
7. Connection method: high-quality stainless steel quick connector connection, no leakage
8. Display mode: large LCD screen
9. Working power supply: AC220V 50HZ
10. Power of the whole machine: 1200W
11. Instrument size: 750*450*450mm
12. Net weight: 50KG
Main Feature
1. The instrument is fully controlled by a microcomputer, the large LCD screen displays the experimental data, and the instrument automatically discriminates the results.
2. The instrument is made of cold-rolled steel plate, the surface is electrostatically sprayed, and has the functions of corrosion resistance and easy cleaning;
3. The instrument welding adopts touch welding technology, no solder joints, and the appearance is beautiful and generous;
4. The instrument adopts imported pressure transmitter, with high pressure display accuracy;
5. All stainless steel inner tank water bath to prevent rust;
6. Imported quick connector, plug and play, no leakage, easy to operate
