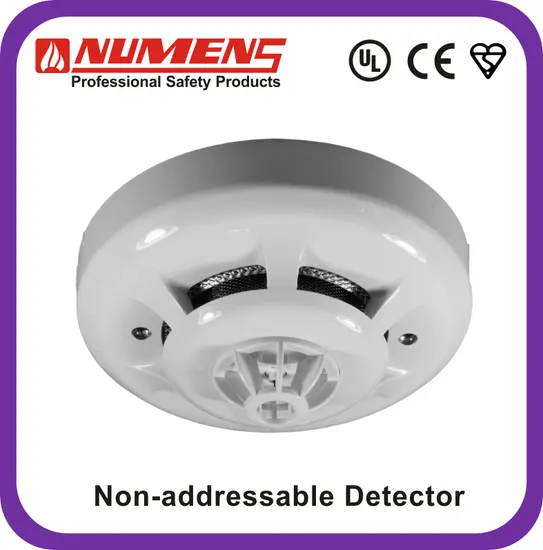

UL Approved Conventional Combined Smoke and Heat Detector with Remote Indicator

Product Description

Series SNC-300 detector incorporates well proven sensing technologies, together with advances in materials and electronics technology, and represents the pinnacle of fire detector performance and reliability.
Series SNC-300 detector has an extra areola to improve detector identification in an alarm condition, so polished and advanced design allow an alarm to be observed from all angles.
The detector will work with most modern fire alarm control panels, and meets the requirements of UL 268 and EN 54-7.
* SNC-300-CL
2-Wire Combined Smoke and Heat Detector with Remote Indicator
Model SNC-300-CL detectors which provide fast and reliable response for photoelectric smoke and heat 57ºC(135ºF) detection. While the smoke and heat detection circuits operate independently, their outputs being "OR' connected, and provide the fire detection performance by acting as a smoke sensor and/or a 57ºC(135ºF) heat detector at the same location.
The detector may work with most modern fire alarm control panels, and can be installed with the series 65 of Apollo together\also the FEOE 2000 of ZETA etc.
Features:
1) 2-Wire operation
2) Optical & thermal detection
3) Wide operating voltage
4) Advanced electronic technology
5) Proven detection performance
6) Designed to meet approvals worldwide (e. G. UL LPCB CE)
7) Sensor base: Optional installation mode. (e. G. Apollo's wiring mode)
Ordering Information:

MODEL	SNC-300-CL
DETECTOR CLASS	Combined Smoke and Heat
SUPPLY WIRING	2 - WIRE
DESIGN STANDARD	EN 54-5/7 and UL 521& 268NDnsensitivet)articles (0.5 to 10 mt furnishings, PVC, plastic, foam, and e alarm signaling systems. ics technolgogy.
APPROVAL	CE; LPCB and UL Pending
SUPPLY VOLTAGE	9 to 33V DC
QUIESCENT CURRENT	60μ A @24V
ALARM CURRENT	50mA@24V
TEMPERATURERANGE	-20º C to +60º C
HUMIDITY	0% to 95% RH No Condensation
SENSITIVITY	UL: 2.3%FT; EN 54: 0.15dB/m;
IP RATING	IP 43
START-UP TIME	10 Seconds
DIMENSIONS (dia. x height)	102 x 56mm (with Base)
WEIGHTS	130g(with Base)

About Numens
Formed in 2010, Numens is an emerging supplier of professional safety products for fire detection and alarm systems. Numens supplies an extensive range of addressable, non-addressable and residential products for life safety and property protection applications. Offering over 150 products and supplying to more than 100 customers around the globe, we are committed to establishing long-term relationships with our customers and suppliers.

Mission and Values
Our mission is to provide building owners with high quality, inexpensive fire detection and related equipment that will protect lives of building occupants and minimize damage to buildings through early detection and warning of a fire emergency.
Our engineers, production and support staff will design, manufacture and deliver products with performance and quality to always delight our customers.
Success in our future depends on the integrity and ethical behaviour of all our employees. We support and nourish our staff to improve and grow as responsible members of a civil society. We take personal responsibility for our actions and respect others with different views, as we continually strive for improvements for our customers, our company and ourselves.

Capabilities
Sales, engineering and production are located in Ningbo, China; just 2 hours south of Shanghai. Our Ningbo site has 10,000 m2 (100,000 ft2) of floor-space. From product concept, electrical and mechanical design, we can provide the solutions to detection needs. Our manufacturing is vertically integrated, with our capabilities including tool-making, plastic injection moulding, SMT manufacturing, and final assembly and test.
You can view our product range on our website or in our product catalogue (document number 34-0001).

Standards and Approvals
Standards approvals are important to us, giving customers additional confidence of the performance and reliability of our products. We are certified to ISO 9001:2008 and our products carry approvals to major European and North American Standards.
