USB Connector, Tid No.: 4913, USB-C Type Connector

Product Description

Detailed Photos

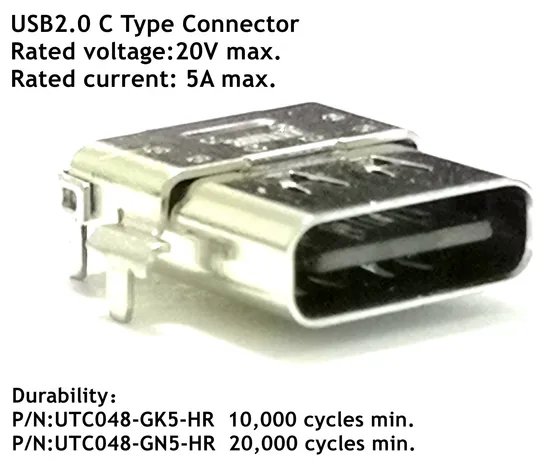

Product Description USB2.0 Type C Female Connector, 16PIN SMD
Apply to Power adapter for Type C interface, Power Bank etc.

SHELL MATERIALS:	STAINLESS STEEL
MIDDLE CONTACT MATERIALS:	STAINLESS STEEL
HOUSING MATERIALS:	THERMOPLASTIC. UL94-V0
CONTACT MATERIALS:	HIGH-CONDUCTIVITY COPPER ALLOYS
LOW LEVEL CONTACT RESISTANCE:	0.04 ohm max.
INSULATION RESISTANCE:	100M ohm min.
DIELECTRIC WITHSTANDING VOLTAGE:	100 VAC
CONTACT CURRENT RATING:	5A max
INSERTION FORCE:	5-20N
EXTRACTION FORCE:	8-20N
DURABILITY:	10,000 cycles min.
IR REFLOW CONDITION PEAK TEMPERATURE:	260ºC-10s

1, The structural dimensions, please refer to the drawings:
2, USB-IF TID Certification
3, Electrical parameters,
3.1. Materials:
Shell: Stainless Steel
Middle Contact: Stainless Steel
Housing: Thermoplastic UL94-V0. Black
Conntact: High-conductivity copper alloys
3.2. Plating:
Connect: 80u" min. Nickel underplating Overall
Plated cold 30u" min. on contact area
or reference part no. code
plated Au 1u" min. on solder area
Shell: plated Nickel
3.3. Electrical Characteristics:
Low level contact resistance: 40mΩ max.
Insulation resistance: 100MΩ min.
Dielectric withstanding voltage :100V AC
Contact Current Rating: 5A Max.
3.4. Mechanical Characteristics:
Insertion Forec: 5~20N
Extractiong Forec: 8~20N
Durability :10,000Cycles min.
3.5. IR Reflow Condition Peak Temperature: 260 ºC - 10s
4, Product quality control ability and content:
4.1) We have various physical tests and chemical tests to test the reliability of the product.
4.2), The product has been tested by 17 projects

Test or Examination
NO.	Item
1	Examination of product
2	Contact Resistance
3	Insulation Resistance
4	Withstanding Voltage
5	Insertion force
6	Withdrawal force
7	Durability(preconditioning)
8	Durability
9	Temperature Humidity Test
10	Thermal shock
11	Temperature life
12	Temperature life (preconditioning)
13	Reseating
14	Vibration
15	Salt spray
16	Drop Test
17	Resistance to Soldering Heat

Company Profile ABOUT US:
Palconn Technology Co., Ltd. was established in Nov of 2005,which is mainly engaged in production of connectors and cables R&D, production, and sales. As a high-tech company, it provides connectors of USB 2.0, USB 3.0, Type C connector, Micro, Jack, etc. and cables of HDMI, USB2.0 and 3.0, Type C, RCA, Displayport, etc., which are widely used in communication products, such as mobile phone and computer, and high-end field of automobile and medical apparatus and instruments. **New product development and manufacturing capabilities: Hardware molds and plastic molds from design and development to production are completed in the factory. **Production and manufacturing capabilities: We have semi-automated and fully automated production lines, as well as dust-free production workshops. Meet all kinds of products production and manufacturing.
