Plastic Waste Recycling Equipment with Water Cooling and Granulating Process

Product Description

State-of-the-Art Plastic Recycling Washing Line: Meticulously engineered by Wenzhou Wandun Machinery Co., Ltd., this PE Plastic Recycling Machine boasts an Enhanced Washing Line designed for unparalleled efficiency and effectiveness in the granulating process. Experience superior performance and unwavering reliability, masterfully tailored to meet all your plastic recycling needs. Elevate your recycling operations with a machine that promises exceptional results and enduring quality.
Product Description
The plastic recycling washing system stands as a cornerstone of Kitech Machinery's innovative recycling series. This ingeniously designed, modular marvel is expertly tailored to handle rigid plastics and bottles. It efficiently processes a variety of plastics, including PE, LDPE, HDPE, PC, PS, and ABS, ensuring optimal recycling outcomes with impeccable precision.
Kitech offers a range of customizable module combinations designed to cater to your specific requirements and material conditions. With an impressive capacity to handle a wide array of raw materials, Kitech provides production lines that span from 300 to 10,000 Kg. Whether you need an economical solution or a high-level configuration, we have the perfect setup to match your production needs.


Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
*** (person /shift)	3-5	3-8	3-10	3-12

Main Technical Variables:
Belt conveyor:
Heavy-duty construction, equipped with a reliable gear motor;
Side walls meticulously designed to prevent material spillage;
Crusher:
Precisely engineered blades that are both sharp and powerful;
Enclosed cutting chamber to effectively contain materials;
Externally adjustable knives for user-friendly operation;
Shredder:
Specially designed hopper to prevent material ejection;
Four-way rotating knives mounted on unique holders;
Extremely robust pedestal bearing housings for enhanced durability;
Innovative external mounting of bearing pedestal designs;

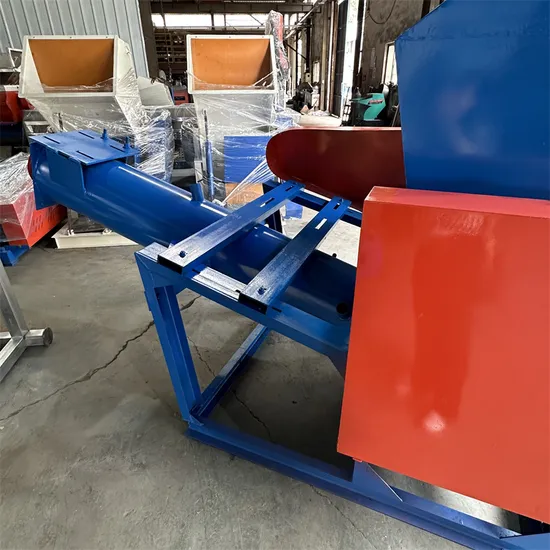

Screw conveyor:
Constructed with wear-resistant stainless steel screws;
Triple sealing mechanism with an external bearing design;
Washing tank:
Double station discharge valve strategically positioned at the bottom;
Variable speed control achieved through an advanced inverter;
Heavy-duty washing unit enabling efficient separation of materials with different densities;
Friction washer:
Rotor and blades crafted from wear-resistant steel;
Rotor with dynamic balance treatment, ensuring an accuracy of ±3-5g;
Active material washing designed to safeguard downstream units;
Centrifugal dryer:
Rotor with precise dynamic balance treatment, achieving an accuracy of ±3-5g;
Mild circular screen designed in a four-piece polygon configuration;
The washer/dryer housing, built with sturdy stainless steel welded construction;
Squeezing dryer:
Heavy-duty shaft and blade for superior performance;
Dual hydraulic press units for maximum efficiency;
Motorized screw squeezing mechanism;
Hot air pipe dryer:
Pipeline constructed with high-quality stainless steel welding;
All material-contacting parts are meticulously crafted from stainless steel;
Innovative hot air drying system for unparalleled drying efficiency;
Storage buffer:
Directly connected with the pelletizing process for seamless operations;
Large storage capacity to ensure uninterrupted operation;
Electrical cabinet
Equipped with internationally recognized low voltage components;
Double circuit safety relay for enhanced protection and reliability;
Intelligent and modular PLC controlling system for seamless, efficient operation.
Q1. What are your terms of packing?
A: Our standard packaging involves placing the machine on a protective pallet and securely wrapping it with plastic film to ensure safe and secure transportation.
For exports to European countries, we ensure that each wooden box is meticulously fumigated to guarantee safe and compliant transport. Our packing process is precise, utilizing PE film for added protection. Moreover, we offer bespoke packing solutions tailored to meet the distinctive requirements of our esteemed customers.
We are fully equipped and prepared to accommodate any special requests, ensuring that we meet your specific needs and preferences with utmost precision.
Q2. What are your payment terms?
A: Our payment terms are straightforward and transparent: we require a 30% deposit via T/T, with the remaining 70% due before delivery. To ensure complete transparency, we provide detailed photographs of the products and their packaging before the final payment is made.
Q3. What are your delivery terms?
A: We offer a range of flexible delivery terms including EXW, FOB, CFR, and CIF to best accommodate your logistical needs and preferences.
Q4. What is your delivery timeframe?
A: Our typical delivery timeframe ranges from 30 to 60 days following the receipt of your advance payment. The exact duration may vary depending on the specific items and quantities in your order.
Delivery times are flexible and may vary based on the specific details and specifications of your order, ensuring timely and efficient service.
Q5. Do you test all your products before delivery?
A: Absolutely, we conduct a comprehensive 100% test on all our products to ensure they adhere to our stringent high-quality standards before delivery.
Q6: How do you ensure long-term and positive business relationships?
A: 1. We consistently deliver high-quality products at competitive prices, providing maximum value and satisfaction for our customers.
2. We treat every customer with the utmost respect, fostering genuine and lasting business relationships and friendships, regardless of their background or origin.
