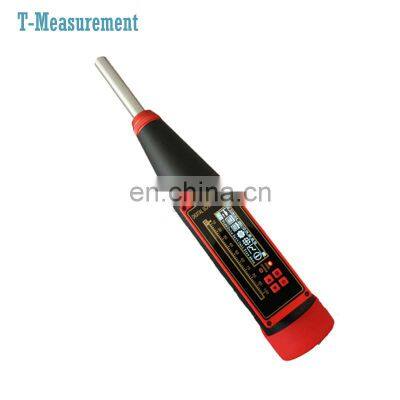

Taijia ZC3-T concrete tester digital sclerometer price digital concrete test hammer digital rebound hammer

Product Description

Product Description
Product DescriptionZC3-T The component list of digital rebound test hammer mainly includes 1 Mechanical rebound test hammer, 1 electronic detection system, 1 charger, 1 Micro USB data cable,1 USB flash disk and 1 product operation manual.Performance CharacteristicsBuilt in national unified curve (JGJ/T23-2011) and multiple provincial,municipal and district local strength measurement curves, support real-time measurement point strength estimation, and automatically calculate the measurement area strength and component estimated strength after sampling Compliance standard: Industry Standard of the People's Republic of China rebound test hammer (JJG 817-2011)Small size, modular design, easy to replace the mechanical rebound test hammer Built in large capacity rechargeable lithium ion battery, long service life of the test hammer Built in large capacity memory can store 999 standard components, and a single component can set up 99 measuring areas and 159840 measuring point data at most Support break-point continuous test, and data collection is more convenient and humanized Support voice counting, measurement area conversion and component completion voicereminder Support Bluetooth online, expand the use of mobile app connection, and make it more convenient to upload data to the cloud with the cloud server Through data line connection and computer data processing software, the test data can be processed quickly and the test report can be issued Support system upgrade. According to user feedback, the company will upgrade the systemregularly to improve the use experienceTechnical parametersNominal kinetic energy2.207JStiffness of spring785 ± 30.0N/mPointer length20.0 ± 0.2mmPointer friction0.65 ± 0.15NSpherical radius of impact rodR25 ± 1.0mmWorking length of spring striking tension spring61.5 ± 0.3mmTensile length of spring striking tension spring75.0 ± 0.3 mmRated value of steel anvil80 ± 2Consistency of detection indication≤± 1Operating temperature- 4 ℃ ~ + 40 ℃Communication rate115200bpsDisplay2.08-inch 256x64 (dot matrix) OLED displayPower supply1800mAh, 3.7V lithium ion batteryWorking hourscontinuous working ≥ 10 hoursTest range10-60MPaRelated ProductsHT-225 Concrete Test Hammer The concrete rebound hammer are the most widely used portable NDT measuring instruments for a rapid assessment of the condition of a concrete structureTEM912 Concrete Test HammerTEM912&TEM91 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data. ZC3-A Concrete Test HammerZC3-A Concrete Rebound Hammer , in accordance with JGJ/T23-2001 technical regulations, is used for detecting the concrete compressive strength within the range of 10-60Mpa and has the system standard energy of 2.207JPrecautions1. Although the test hammer can save the tested original test data in large capacity and for a long time, due to the importance and non repeatability of the original test data, please export the test data saved by the test hammer in time and backup it. Maintaining the good operation performance of the mechanical part of the digital rebound test hammer is the basis to ensure the normal use of the test hammer. Therefore, the mechanical part of the rebound test hammer needs to be maintained regularly. The sensor must be disassembled in strict accordance with the requirements of the maintenance guide in this manual, otherwise the mechanical parts of the sensor, especially the electronic devices, will be damaged. In the actual detection, it should be noted that the bounce frequency of the digital rebound test hammer should not be too fast, and the time interval of the second bounce should not be less than 1 second, so as to avoid the impact on the sampling accuracy caused by the bounce of the sensor tension spring when it has not been completely reset. In the actual detection, the comparison between the manual mechanical reading and the digital display value of the test hammer is often carried out, which is helpful to find the operation fault of the sensor in time and avoid the distortion of the detection data. Please do not put heavy objects on the test hammer to avoid key failure dueto long-term compression and deformation; Avoid placing or storing the test hammer in strong sunlight or high temperature environment, and avoid storing the test hammer in humid or dusty environment. 2. Do not place the test hammer near magnets, motors or other equipment that will produce strong magnetic fields, and do not use the test hammer in an environment with strong magnetic fields. Exposure to strong magnetic field may cause abnormal operation of the test hammer or damage the test data stored in the test hammer. 3.Please do not bring the test hammer from high-temperature environment to low-temperature environment or from low-temperature environment to high-temperature environment in a short time, which may cause water vapor condensation on the internal and external surfaces of the test hammer. You can avoid this problem by placing the test hammer in a plastic bag andgradually adjusting it to the ambient temperature before use. If condensation occurs, please stop using the test hammer. Continued use may cause damage to the test hammer. 4. When the test hammer is not used for a long time, please charge it frequently to avoid the battery entering into self-protection due to ultra-low voltage due to long-term use of the test hammer, which hinders normal use and causes damage to the test hammer.Company ProfileDalian Taijia Technology Co.,LtdDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Warnings1. The test hammer has no waterproof function. Do not touch or immerse the test hammer in water or other liquids. Do not let water or other liquids flow into the test hammer or get wet. If the shell is stained with water or other liquid, wipe it dry immediately. If water or other liquid flows into the test hammer,please turn off the power immediately, remove the electronic binshell and dry it with a hot air blower; Continued use of the test hammer may cause damage to the test hammer. 2. If smoke or peculiar smell is found in any part of the test hammer, stop the test hammer immediately, turn off the power supply, open the electronic bin and take out the battery. 3. Before mailing, consigning or transporting as luggage, it must be packed in a strongpackage to ensure that the test hammer will not be squeezed or impacted by force, so as to avoid other serious consequences caused by accidents. 5. Please do not allow any home appliance repair department or other similar electronic repair department to repair or replace the circuit boards and electronic devices in this test hammer. Technicians without professional training and approval from Leling Hammer Factory may not know the detailed technical parameters of the test hammer. Repairing the test hammer may reduce the technical performance of the test hammer and even cause more serious damage to the test hammer.Contact UsDALIAN TAIJIA TECHNOLOGY CO.,LTDNo.10 Huoju Road High-tech Industrial Zone Dalian, ChinaE-mail: ndt@tmeasurement.comTEL:86-411-39685079Whatsapp:+8615998577470Skype:tmeasurement04Web:/; FAQ for Our Company1. Experienced company -- 15 years experience in supplying ultrasonic measurement equipment.2. MOQ:1set3. We accept T/T. Western Union.PayPal & Secure Payment4. We offer 12 Month's Warranty on all product5. Service express company:TNT/DHL/FedEX.
