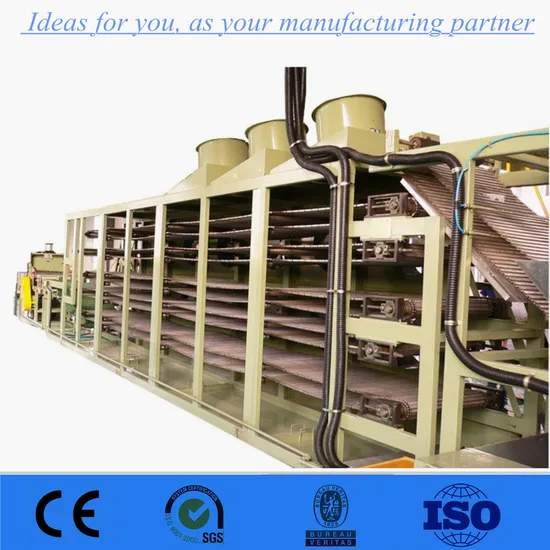

Hanging Type Rubber Sheet Cooling Machine Batch off Cooler Machine

Product Description

Rubber Sheet Film Belt Cooling Machine Product Description
Rubber Film Cooling Machine is the downstream auxiliary to the mixer or the dispersion mixer. It is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder.
Rubber Film Cooling Machine is designed to perform continuous operations of rubber slab conveying, separate applying, air cooling, drying, cutting and wig-wag stacking.
Features:
Rubber Film Cooling Machine consists of take-off, print, slitting, transportation, immersing insulation, lifting, sheet cooling fan with low power, low noise, high wind pressure and large capacity. This machine adopts PLC auto control system and measures with electric balance. It has two kinds of installation, floor type and high-frame type, for the user to choose.
Advantages:
1.The operations of coating separant,air cooling,drying,cutting and wig-wag stacking are set in one single cooling machine,achieving continuous operation with higher efficiency.
2.Rubber sheet are soaked before coating separant ,so the coating effect is very good and no enviromental pollution.
3.Time of air cooling process for rubber sheet cooling is set very long, so cooling effect is excellent.
4.Rubber sheet can be cut into certain length during operation and the cutting length is adjustable.
5.With PLC control and frequency-control speed regulation,it is very convenient to control the whole working process.
Factory Strength
Processing Workshop - 1 Processing Workshop - 2
90% frame and parts of machine is make by ourselves. Various types of processing machine.

Assembly Workshop Mold Workshop
Clear functionality of each area, Tidy and clean. More than 10 sets machine for making tire and tube mold. Detailed Photos

No.	Item	Type
1	Size of rubber batch off cooling machine	XPG-600,XPG-800,XPG-900
2	Size of matched rubber mixer	75L, 90L, 110L,140L,160L,190L,270L,320L,370L(400L),420L,580L,620L,650L
3	Cooling type	Hanging type cooling, conveyer belt cooling, drum type cooling
4	Structure	Floor type, Frame type

Product Parameters

Model	XPG-600	XPG-800	XPG-900
Max. rubber sheet width	600mm	800mm	900mm
The thickness of the rubber sheet	4~10mm	4~10mm	6~12mm
Linear speed of taking-in conveyor	3~24m/min	3~35m/min	4~40m/min
Linear speed of sheet hanging bar	1-1.3m/min	1-1.3m/min	1-1.3m/min
Hanging height of the sheet hanging bar	1000-1500m	1000-1500m	1000-1500m
Number of cooling fans	12	20~32	32~34
Power	16KW	25~34KW	250KW
Overall Dimension(mm)	14250X3300X3405	16800X3400X3520	6000X2850X4450

Packaging & Shipping
Rubber Film Cooling Machine is big size, so the machine is directly loaed into 40 foot container. Ane proper treated(for anti rust and dust for some parts) and well fixed in the container.
