Grinding Wheel Truing and Dressing Machine Nz-01c for Diamond and CBN Wheels

Product Description

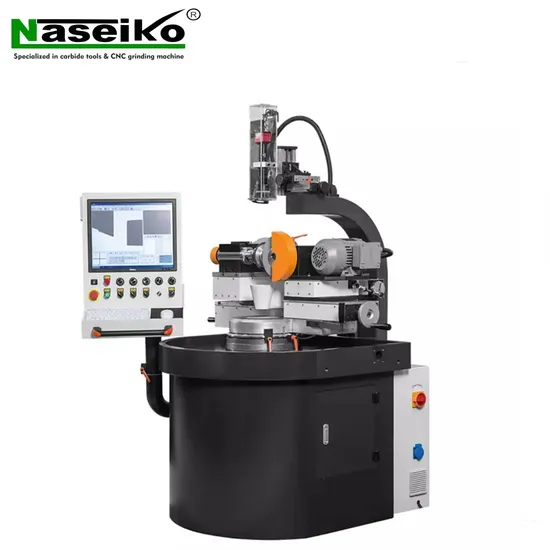

Grinding Wheel Truing and Dressing Machine NZ-01C for Diamond and CBN Wheels
The Grinding wheel dressing machine for diamond / CBN grinding wheel can dress plane side, angle, outer arc and forming grinding wheel, both single and multiple wheels.The machine is not only simple to operate, but also highly accurate.
Product Description
1.Machine tool spindle grinding wheel as a dressing diamond grinding wheel or CBN grinding wheel, the grinding wheel installed on the accessories is used as the dressing grinding wheel.
2.Two directions of the dressing grinding wheel can be adjusted(X axis, Y axis); the dressing grinding wheel has three directions can be adjusted, ( rotating axis A, X 1 and Y 1 ) realize reciprocating swing by Frequency conversion speed regulation.
3.The X1 and Y1 axis can rotate and positioning.
4. the machine is equipped with CCD optical measurement system, grating measurement system, 10 to 100 times amplification system,
and liquid crystal display.
Product Parameters

	Unit	NZ-01C
Diamond grinding wheel spindle	-	BT40 / HSK50 /(or customized)
Maximum diameter of diamond grinding whee	mm	Φ350
Minimum diameter of diamond grinding wheel	mm	Φ50
Maximum width of diamond grinding wheel	mm	40
Diamond grinding wheel speed	rpm	0-1500(continuously variable speed)
Diamond grinding wheel motor	kw	0.75
Left and right movement distance of diamond grinding wheel	mm	135
Forward and backward movement distance ofdiamond grinding wheel	mm	135
Diamond arc size	mm	Φ0.05-40
Dressing wheel (silicon carbide) diameter	mm	Φ180 / 10 / ψ32
Dressing wheel speed	rpm	0~2800
Motor Power of dressing grinding wheel	kw	0.75
Number of swinging times of dressing grinding wheel	rpm/min	0-50(continuously variable speed)
Length of swinging of dressing grinding wheel	mm	0-50(adjustable)
Swing motor power of dressing grinding wheel	kw	0.025
X-axis and Y-axis optical ruler device	mm	0.001
CCD and high-definition lens	piece	1
Data acquisition card	set	Jan.1
Lens holder	set	1
Lens cross work bench	set	1
LED bottom light	piece	1
LED upper light	piece	1
LCD display screen	inch	19
Computer host	piece	1
Loading the EDlS measurement system	set	1
Power supply voltage	-	380V,50HZ
Total power	kw	1.5
Machine size (length x wide x High)	mm	1600 / 1200 / 1800
Total weight of the machine	kg	1500

Detailed Photos
FAQ
Q: What is your product line?
A: CNC grinding machine,
CNC mismatch grinder machine,
Electronics servo press machine,
Precision Grinding Wheel Dressing Machine.
Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standard Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field.
We have international advanced testing equipment, excellent craftsmanship and refine quality management system,
as well as professional team. It ensures our products stable and reliable.
