Digital Dental Microscope Camera 4K 1080P Ent Dental Ophthalmic Surgical Microscope

Product Description

Product Description

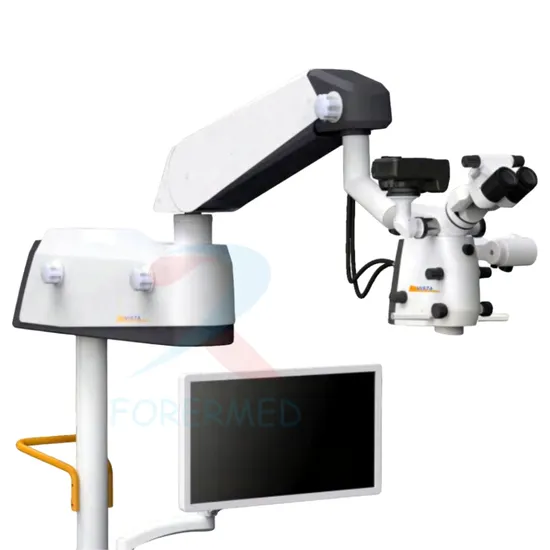

Digital Dental Microscope Camera 4k 1080P ENT Dental Opthalmic Surgical Microscope with C arm Electromagnetic

1. Castors	4.Bracketfor monitor	7. Big Arm
2. H shaped base	5. Pushing handle	8. Middle Arm
3. Stand	6. Monitor	9. Middle Arm Height Knob

10. Handing Arm L/R Friction Knob 11. Hanging Arm 12. L/R Friction Knob 13. L/R Balance Knob 14. Ultra Balance C-Arm 15. Middle Arm L/R Friction Knob 16. F/B Friction Knob 17. F/B Balancing Knob 18. Photo &Video Button

19. PD Adjust Knob 20. Wide Fields Eyepieces 21. +25 Pendulum Function 22. 30 Extender & Beam Splitter 23. Fluorescence Knob(optional) 24. Continuous Zoom Magnification Knob25. Illuminination Spots Adjust Knob26.Brightness Adjust Knob27. Definition Adjust Knob28.Handle

Feature
Excellent Optics1) Zoom Magnification, easy to control, highly efficient Zoom magnifcation from 186X to 20X, Continuous zoom, no sudden change of vision, feld of interest always remain in the center.2) Splendid lens, first-class optics design High quality optic glass, multi-layer coating and apochromat design contribute to vivid image3) Big focus range, deep depth of view The focus range of objective lens is from 200mm to 455mm. 255mm length of workspace give dentist enough space to perform. Dentist doesn't have to move the microscopeor patient head up and down to focus. Simply twist the focus knob to see clearly.4) Flexible binoculars 0°~190° foldable binocular, IPD from 50mm-75mm, diopter changer +7D, angle of view bigger than 50, eyepiece cup retractable. Whether you are wearing glass or not, the binocular is very easy to use.5) Super large field of view. Unseen visual experience. The microscope has a maximum 1 20mm diameter held of yiew. Dentist can have more range to observeSuperior maneuverability1) 5S Electromagnetic lock system Smooth/Stable/Safe/Stanch/Strong With the help of electro magnetic lock system and ultra balance C arm, dentistcan effortlessly control the microscope with one hand. Push a button, you can easily move the microscope to the position needed. Release the button, the microscope remain in the position without any vibration or micro movement. Firm as arock. 2) 120° ultra balance C arm system By changing the torque and damp ateach joint, the gravity center of microscope head can always remain neutral. When attaching extra device tothe head, it can be well balanced. Flexible, smooth and steady.3) Hinge design of binocularThe hinge design of binocular makes itfoldable from 0° to 190°. Binocular adapts to the sitting posture of dentist. Dentist can sit in amore relaxed and healthy way. Better ergonomics will benefht the health of dentist.4) +25° Pendulum FunctionWhen tilting the microscope head (+25), the binocular can still remain horizontal. Dentist doesn't have to tilt head to look through the binocular.5) Ergonomics design30°optical extender and beam splitter areunifed. Dentist doesn't need to stretch neck forward to reach the binocular thanks to the 30 optical extender. The beam splitter can connect to digital camera, mobile phone, video camera, assistant binoculars and so on.6) Laser filterLaser fler is optional. lt is design to block laser with different wave length. lt can protect dentist's eyes while using laser for treatment.7) Extended Spring ArmExtended spring arm has a reach of 925mm. Dentist and assistant will have more space to operate under microscope.Integrated camera can capture the fnest detailsVISTA has integrated 4K camera, 0.03S response time help dentist to capture high quality photosand videos for case sharing and lecturing. 4K camera provide UHD high defnition image output. The image is vivid, colorful and sharp.lt can capture small details to show patient what goes wrong. The image can be live-streamed to tablet or mobile phone. Easy lecturing and sharingTechnical specifications

Technical Parameters
Magnifcation	1.86X~20X zoom magnification, ratio 0.4~2.4
Ocular	12.5X,±7D
Binocular	0~190° foldable, IPD 50~75mm
Objective lens	F=200~455mm; laser filter, lens protector optional
Field ofView	11~120mm
Light spot size	160mm max; 4 sizes changeable
Lighting	Dual LED light, 70000lux
Filters	green and yellow
Fluorescence	Optional
UItra balance C arm	torque and damp adjustable, Electromagnetic lock optional
Pendulum Function	±25° tilting. Optional
Auto Switch	power supply auto shut down when arm raised to highest
Handle	360° rotatable
Imaging system	Integrated 4K camera, attached digital camera, optional.
Arm reach	1990mm from base to microscope head. Longer arm optional
Base	690mm*690mm, cross type base.

Confguration
Item	VISTA Basic	VISTA Plus	VISTA PRO	VISAT PRO MAX
Binocular	√	√	√	√
Ultra balance C am	√	√	√	√
Objective Lens 200~455mm	√	√	√	√
Light spot changer and filters	√	√	√	√
Zoom magnification	√	√	√	√
Lighting system	√	√	√	√
3609 handles	√	√	√	√
30° optical extender	√	√	√	√
Pendulum Function			√	√
Fluorescence			√	√
4K camera integrated			√	√
2K Extemal Camera		√
C arm electromagnetic lock			√	√
Cross and spring arm electromagnetic lock				√
