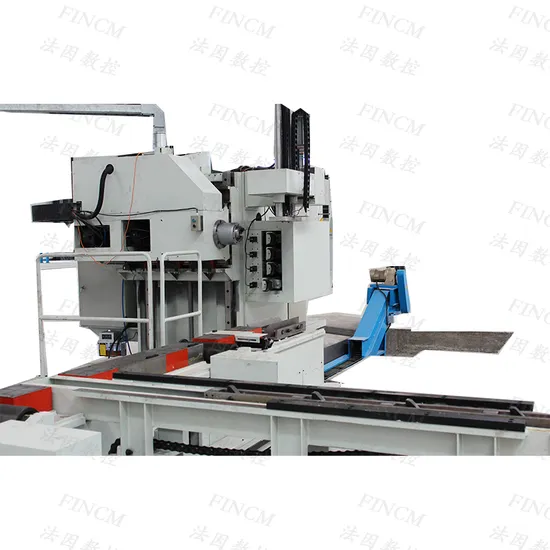

RDL25C FINCM Attractive Price New Type CNC Rails Drilling Machine

Product Description

Machine Purpose:
The machine is mainly used to process the connecting holes of the base rail and at rail waist in turnout rail. The drilling process of cemented carbide drill is adopted, which can realize semi-automatic production, reduce the labor intensity of workers, and greatly improve the labor productivity.
Machine Features: The bed of the machine tool is separated from the worktable, and the guide rail pair of the bed is arranged horizontally to increase the service life of the guide rail pair; the welded steel plate structure is adopted, and the accuracy and stability are ensured by annealing, stress relief and artificial aging treatment. A powerful electromagnetic chuck is installed on the worktable of the machine tool to tighten the workpiece. Pay attention to the order from the middle to both sides when the electromagnetic sucker is closed, and pay attention to the sealing and waterproof. The mobile column adopts steel plate welding structure, which is annealed to remove stress and artificial aging treatment to ensure accuracy stability. The moving column is laid on the bed by the slide blocks on the two horizontal ultra-high bearing capacity linear rolling guide pairs installed on the bed. The z-axis slide plate and RAM are made of casting (HT250), which ensures the good shock absorption and stability of the machine tool. The output shaft of the spindle motor is equipped with a synchronous pulley, which is transmitted to the BT50 precision spindle produced by Taiwan Kenturncompany through the synchronous belt. It has high tensile strength, long service life and low noise and vibration when running at high speed. Chain plate automatic chip remover is flat chain type, and is installed in the middle of the bed work table. The scrap iron falls on the chip conveyor through the inclined plate on the worktable, and the scrap iron is transported to the chip carrier at its head through the chip conveyor. The equipment is equipped with two hydraulic stations, one is installed on the mobile column, which is mainly used for balancing cylinder, pressing cylinder and knife cylinder; the other is installed on the foundation, which is mainly used for lifting cylinder and pulling cylinder of lifting conveying roller table. All hydraulic stations use variable vane pump to provide pressure oil, which meets the requirements of energy saving and environmental protection. There are three CNC axes in the machine tool, each of which is guided by precision linear rolling guide pair. Except that the x-axis is driven by AC servo motor connected with imported high-precision clearance elimination helical gear and rack pair through low backlash worm gear reducer, the other CNC axes are driven by AC servo motor through precision ball screw pair. The drilling tool adopts index able cemented carbide u drill, and the spindle is cooled by air mist. Siemens 828D CNC system is used in the CNC system, which can monitor the drilling process in real time. Main Technical Specifications:

Specification of processed rail	Type of stock rail	43Kg/m,50Kg/m,60Kg/m,75Kg/m,UIC54,UIC60
	At rail model	50AT,60 AT,UIC60D40
	Special section wing rail	60TY
Rail size range	Bottom width	114-152mm
	Rail height	128-192mm
	Abdominal thickness	14.5-44mm
	Rail length (after sawing)	6-30m
	texture of material	U71Mn σb≥90Kg/mm² HB250 PD3 σb≥98Kg/mm² HB290-310
Drilling bit	Diameter	φ20~φ33
	Length range	3D~4D
Processing requirements	Range of hole height	35~100mm
	Number of holes on each rail	1~4
	Allowable deviation of adjacent hole spacing	±0.3mm
	Allowable deviation between rail end face and nearest hole distance	±0.5mm
	Allowable deviation of farthest hole distance of rail	±0.5mm
	Allowable deviation of aperture size	0~+0.3mm
	Hole wall roughness	Ra12.5
	Allowable deviation of hole center height (from rail bottom)	±0.3mm
Mobile column (including drill pin power box)	Quantity	1 set
	Spindle taper hole	BT50
	Spindle speed range (stepless speed regulation)	10~3200r/min
	Spindle servo motor power	37kW
	Vertical slide stroke (Y-axis)	800mm
	Servo motor power of vertical sliding table (Y-axis)	3.1kW
	Horizontal drilling feed stroke (Z-axis)	350mm
	Horizontal drilling feed (Z-axis) servo motor power	3.1kW
	Horizontal travel of column (x-axis)	25m
	Column horizontal movement (x-axis) servo motor power	3.1kW
	Maximum moving speed of x-axis	10m/min
	Y. Maximum moving speed of z-axis	8m/min
Electric permanent magnet sucker	Quantity	1 set
	Sucker size (L × w × h)	250×200×120mm
	Working suction	≥200N/cm²
Side push cylinder	Cylinder diameter × stroke	Φ50×70mm
	Single cylinder side thrust	700Kg
Lifting roller table	Quantity	1 set
	Conveying speed	≤15m/min
Auxiliary hold down cylinder	Quantity	1 set
	Pressing force	≥1500Kg/set
Chip removal	Chip conveyor type	Flat chain
	Chip removal speed	2m/min
	Chip removal motor power	2.2kW
Hydraulic system	Quantity	2 sets
	Hydraulic pump pressure / flow / power	6-6.5Mpa/25L/min/4kW 1 set
	Hydraulic pump pressure / flow / power	5.5-6Mpa/66L/min/7.5kW 1 set
Electrical system	Numerical control system	Siemens 828d
	Number of CNC axes	5+1
	Compressed air supply pressure	0.6Mpa
	Overall dimensions (L× W× H)	About62m×8.7m×3.8m
