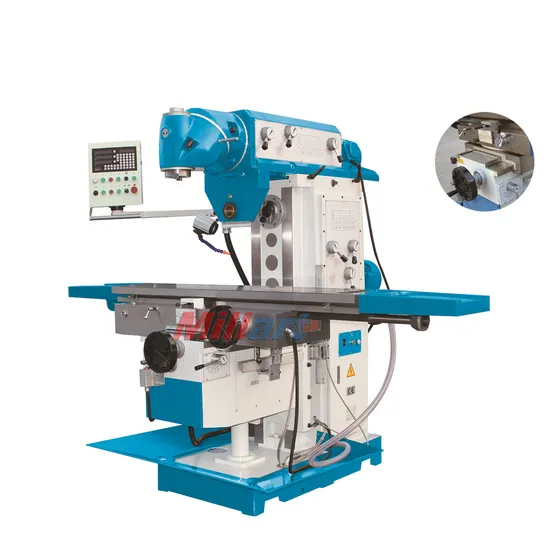

XL6436 XL6436c XL6436cl Universal Milling Machine /Arm Milling Machine

Product Description

Product Description
Feature:
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Specification:

Model	Unit	XL6436	XL6436C	XL6436CL
Table size	mm	1325×360	1325×360	1600×360
Table travel (X/Y/Z)	mm	750/320/460	1100/320/450	1300/320/450
Table feed speed X axis	mm/min	30~750	30~750	30~750
Table feed speed Y axis	mm/min	20~500	20~500	20~500
Table feed speed Z axis	mm/min	15~375	15~375	15~375
Spindle taper		7:24 IS050 (H) 7:24 IS050 (V)	7:24 IS050 (H) 7:24 IS050 (V)	7:24 IS050 (H) 7:24 IS050 (V)
Arm travel	mm	550	550	550
Distance from spindle to table	mm	196-656	196-646	196-646
Distance horizontal spindel to table	mm	20-480	20-470	20-470
Distance spindle to arm	mm	200	200	200
Spindle speed range	r.p.m	60-1750 (V) 60-1800 (H)	60-1750 (V) 60-1800 (H)	60-1750 (V) 60-1800 (H)
Spindle speed steps	steps	12	12	12
T-slots(NO./width/pitch)	mm	3/18/80	3/18/80	3/18/80
Main motor power	Kw	5.5 (H) 4 (V)	5.5 (H) 4 (V)	5.5 (H) 4 (V)
AC servo feed motor torque	N.m	10	10	10
Overall size	mm	1800×2100×2000	2245×2100×2000	2245×2100×2000
Net weight	kg	2685	2750	2800

Standard accessories:
Draw bar
Coolant device
Coolant tray
Universal mill head
Automatic central lubrication
Mill arbors
Tools
Optional accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
LED machine light Company information:
