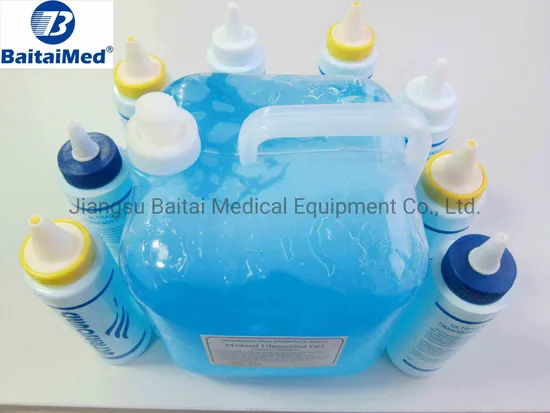

Medical Ultrasound Coupling Gel, 5L

Product Description

MEDICAL ULTRASOUND COUPLING GEL DESCRIPTION:
During the ultrasound examination, the air between the probe and the patient's skin will prevent the ultrasound from being transmitted to the human body. In order to obtain high-quality clear images, a liquid conductive medium is required to connect the probe and the patient's body surface. This medium is ultrasound gel (ultrasound coupling gel/ultrasound transmission gel/ ultrasonic couplant).
Because the frequency of medical ultrasound is 2.5-5M, it cannot be conducted in the air. If there is air in the probe and the skin, the ultrasound will return as soon as it encounters the air, and cannot enter the human body, so it cannot be used for inspection. To apply a layer of ultrasound coupling gel on the skin can eliminate the air between the probe and the skin.
It is composed of water-based polymer gel which is non-toxic and harmless to the human body, not easy to dry, not easy to rancidity, clear ultrasonic imaging, suitable viscosity, non-greasy, the probe is easy to slide, can wet the skin, eliminate the air on the skin surface, and has lubricating properties Good, easy to deploy; no corrosion and no damage to the ultrasonic probe.
FEATURE:
The PH value is neutral, non-toxic, odorless, non-irritating, non-sticking to skin and clothes, non-irritating to the skin, non-allergic, and easy to erase, with good thixotropy and non-flowing, easy to grasp. It has good stability and is not affected by climate change.
APPLICATION:
It can be used for A-type, B-type, M-type ultrasonic diagnostic equipment, Doppler blood flow meter, suitable for obstetrics and gynecology, digestive system, urinary system, nervous system, neonatal, thyroid and breast examinations, can be coupled with ultrasound probes, improve The display is clear and the effect is excellent; there is no need to repeat the application, which helps to save diagnosis time.
Chemical Composition: Polymer, humectants, water, approved food color, perfume and preservatives.
Technical Parameters:
Sound Speed (35º C): 1520~1620 m/s
Sound Impedance Frequency (35º C): 1.5~1.7× 106 Pa· S/m
Sound Attenuation (35º C): ≤ 0.05 dB/(cm· Mhz)
Viscosity (25º C): ≥ 15 Pa· S
PH Value: 5.5~8.0
PACKING:
5000ml/barrel
2barrels/carton,
Carton size: 37x20x23cm,
G. W.: 11KG, N. W.: 10KG. CATALOGUE PACKAGING
ABOUT US Jiangsu Baitai Medical Equipment Co., Ltd. is a high-tech medical device enterprise that designs, develops, and manufactures electrosurgical solutions and medical sensor used in cardiac. Taking high-tech as the core and quality-oriented, Baitai Medical has developed series of advanced medical surgical products through continuous efforts of our qualified personnel. We perform international quality system management ISO13485 and produce our products according to international standard under strict control to ensure the quality standing in a leading position in the industry. The product range covers Electrosurgical pencil, Electrosurgical grounding pad, Electrosurgical blade electrode, Bipolar forceps, TENS electrode, ECG electrodes & Medical gel etc. The considerate design, good quality raw material and mature production capacity make the technology-stable, environment-protective, operation-convenient and high quality products as the distinctive features. Baitai Medical locates in Yancheng City, Jiangsu Province, China, which is about 300km away from Shanghai. Equipped with a plurality of automatic production lines and precision testing apparatus, the production base covers a total area of 10,000m2 with 8,000 m2 production plant.
