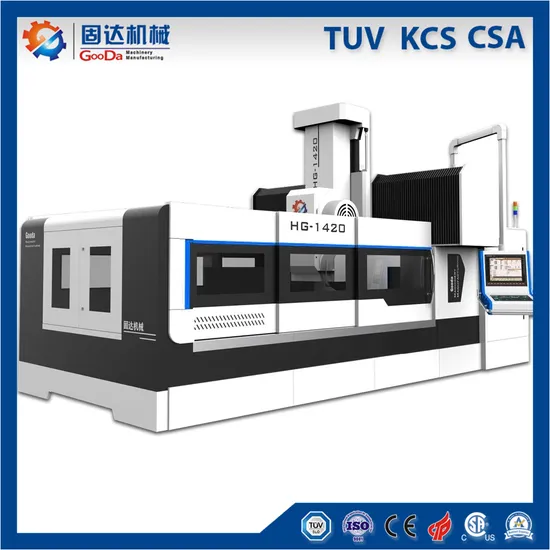

High Precision Bridge Type Taiwan Planer Surface Grinder CNC Double Column Grinding Machine

Product Description

Detailed Photos

Taiwan original precision grinding head
intelligent operation system Product Parameters

Items	Unit	HG-1420NC
Max grinding length	mm	2000
Max grinding width	mm	1100
Net width of inside	mm	1400
Max thickness	mm	500
Worktable dimension	mm	2000×1000
Front and back moving speed	m/min	5-28
Left and right moving speed	mm/min	5-3000
Up-and-down moving speed	mm/min	5-3000
Min calibration	mm	0.005
Power of grinding head motor	kw	15
Speed of grinding head	rpm/min	1400
Grinding wheel	mm	500×80×203
motor of worktable	kw	11
Left and right moving motor	kw	2
Up-and-down moving motor	kw	2
Max loading weight	kg	3000
Machine weight	kg	21000

Machine structure features
1. Horizontal grinding head
The horizontal grinding head adopts high-precision flange type spindle design. With three pairs of super-precision angular contact bearings (made in Japan/Germany), using high-temperature resistant high-grade lubricating grease, completely sealed, no need for additional maintenance. Therefore, it can maintain high quality characteristics such as low noise, high precision and low temperature during grinding.
2.Worktable drive
3.Gantry frame
The lower part of the double column is firmly connected with the bed, the upper part is tightly connected with the beam, and the machine bed, the double column and the beam form a rigid closed frame structure.
4. Grinding head drive
The grinding head is equipped with AC servo electric drive, with large torque and accurate feed.
5. Grinding wheel
The grinding machine is equipped with a safety type grinding wheel with buffer protection device. The wheel adopts reasonable structural transformation, so that the safety of the operator is guaranteed.
6. Lubrication system
The machine base adopts automatic circulating lubrication device. The horizontal and vertical motion guide rails and the ball screw adopt timing and quantitative automatic lubrication device, the operation is humanized, and the machine runs safely and reliably.
7.Cooling system
The machine coolant device is recycled after multi-stage filtration.
8. Pipeline protection 9. Hydraulic control system
The hydraulic system uses an independent hydraulic station. The hydraulic system controls the balance of the longitudinal movement of the worktable and the vertical movement of the grinding head.
10. Electric Magnet
The electric permanent magnet does not need electric energy during the working process, and only uses the permanent magnetic suction to hold the workpiece. It does not use any energy in work and produces safe, strong and efficient power, which is economical and environmentally friendly. Company profiles
We are the manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, Exchange-Pallet Vertical CNC Milling Machine, CNC Gantry Grinding Machine,5-Axis High-Speed Gantry Machining Center, CNC High-Speed Saw Machine and CNC Chamfering Machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice, and facilitate the prompt availability of service engineers.
Certifications
TUV ISO9001 Certificate CE Certificate Patent Certification software copyright of milling machine Member of High-Tech Nation High-tech Enterprises Member of SZMA
Cooperative Partner
Gooda plays an important role in the China machine industry and exports our machines all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
After-sale service:
24 hours door to door service; 72 hours service by GooDa's international engineer
Packing and shipping
For all exported Milling Machine, we use the PE bag cover inside
+Veneer box/steel beam frame to provide great protection for it.
Productivity benefits
GooDa CNC milling machines offer the following benefits:
1. has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation, and other honors.
2. After-sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check the machine regularly.
3. Machines come wired for USA electricity or your local electricity.
4. We supply expert installation and training.
5. Save you time and money and increase your productivity by high-speed milling.
6. Maximize tool life assuring your production will pay dividends for many years.
Don't worry and trust us, we will all here serve you.
FAQ
Q: Are you a manufacturer or Trading Company?
A: We are an innovative enterprise with rich import & export experience and 10 professional production lines. Warmly welcome you to visit our factory.
Q: How is the delivery?
A: For standard configuration, it's usually 45 days after down payment.
Q: Have you sold any machines in my country?
A: With the company development, Gooda plays an important role in the China machine industry and export our machines all over the world (The United States/ Korea / Canada/Thailand/ India / Southeast Asia, etc.). and now, we have agents in South Korea/India/Thailand/ Vietnam, please feel free to contact us to get more detail.
Q: Can you support OEM Service?
A: Yes, according to customers' requirements, we would like to make the building plan to meet customers' meet.
Q.How can I choose the most suitable machines?
A: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself.
Q: How is the after-sales service?
A: Our products have one year warranty, and a strong team of engineers to support after-sales service. If there is an issue with the machine, please contact us immediately and we will give you a solution way soon. Service first!
