Z5030A Z5035A Z5050A vertical drilling machine and cheap machine with price

Z5030A Z5035A Z5050A vertical drilling machine and cheap machine with price

US$4,900.00
1-4 Pieces
US$2,900.00
5+ Pieces

Basic Info.

Model NO.
Z5030A Z5035A Z5050A
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Z5030A Z5035A Z5050A vertical drilling machine and
Max. Drilling capacity
30/35/40/50
Spindle travel
135/150/160/170
Max.travel of worktable and bracket
480/540/560/525
Swivel angle of worktable
+/-45
Spindle speeds steps
12
Transport Package
Plywood Case
Specification
according to machine model
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459290000
Production Capacity
100 Set Per Month

Product Description

Z5030A Z5035A Z5050A vertical drilling machine and cheap machine with price Product Description
Product Parameters

Specifications Units Z5030A Z5035A Z5040A Z5050A
Max. Drilling capacity mm 30 35 40 50
Max. Tapping capacity M18 M20 M24 M24
Spindle travel mm 135 150 180 180
Max.distance spindle axis to column generating line mm 315 330 360 360
Max.distance from spindle nose to surface of worktable mm 520 610 600 600
Max.distance from spindle nose to surface of base worktable mm 1080 1150 1215 1205
Max.travel of worktable and bracket mm 480 540 560 525(410)
Swivel angle of worktable +/-45° +/-45° +/-45° +/-45°
Spindle taper MT3 MT4 MT4 MT4
Spindle speeds range r/min 70-2600 70-2600 42-2050 42-1865
Spindle speeds steps 12 12 12 12
Spindle feeds mm/r 0.1;0.2; 0.3 0.1;0.2; 0.3 0.07 0.15 0.26 0.40 0.07 0.15 0.26 0.40
Spindle speeds steps 3 3 4 4
Dimension of worktable mm 450x450 500x550 580x450 580x450
Effective working area of worktable mm 690x480mm 760x500mm 820x550mm 820x550mm
Effective of T-Slot of table and base piate mm 2-14 2-16 2-14 2-16 2-14 2-16 2-14 2-16
Diameter of column mm 125 140 160 170
3-phase two speed AC motor power kw 1.0/1.5 1.5/2.2 2.2/2.8 2.2/2.8
voltage v 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440
speed R/min 960/1450 960/1450 960/1450 960/1450
3-phase pump motor power kw 0.09 0.09 0.09 0.09
voltage v 220.380.420.440 220.380.420.440 220.380.420.440 220.380.420.440
Flow rate L/min 6 6 6 6
Machine dimension mm 650x1050x1950 700x1150x2150 700x2150x2150 700x1150x2150
G.W/N.W kg 440/500 670/730 740/800 800/860
Sets/20'' container 24 20 16 16

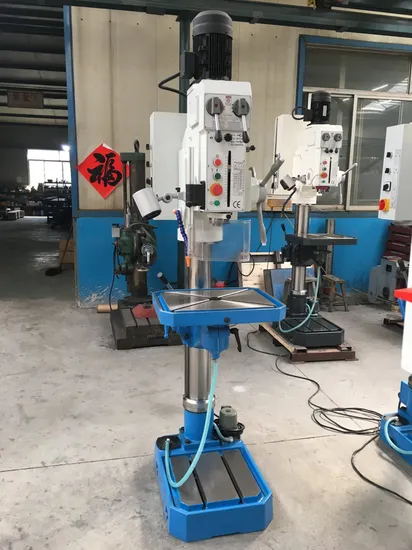

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
