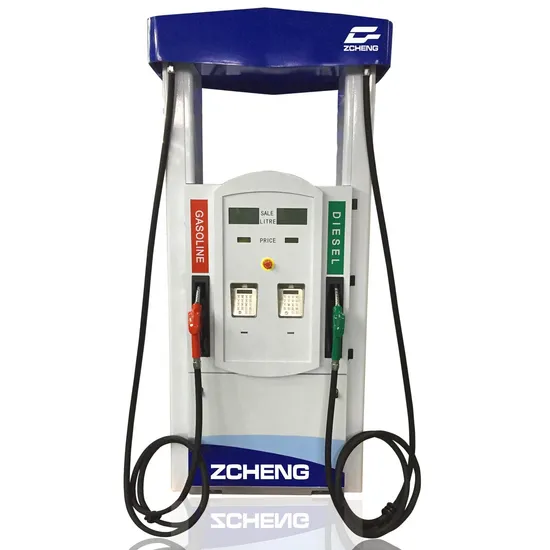

China Petrol Station Self-Serve Submersible Pump Large Flow Gilbarco Fuel Dispenser Price with Tokheim Type
Basic Info.
Model NO.
G Series
Operation Mode
Electrical or Manual
Oil Transportation Mode
Suction, Submersible
Product Name
Fuel Dispenser
Voltage
220V/380V/110V/12V/24V
Medium
Petrol, Gasoline, Kerosene, Diesel, Adblue, LPG
Accessories
Motor, Pump, Flow Meter, Controller, Nozzle
Flow Meter
Bennett, Tokheim, Tatsuno, Gilbarco, Wayne, Tokico
LCD Display
664, 885, Digital, Mechanical Analog
Nozzle
Opw, Zva, Tatsuno, Husky, Healy, Automatic
POS/Protocol
Zcheng Tatsuno, Gaskit, Ifsf, Pts, Itl, PT etc.
Certificate
OIML, CE, Atex, Sira, Coc, Soncap, Saso, Nrcs, CMC
Controller
Electric/Meachanical
Hose
1, 2, 3, 4, 5, 6, 7, 8
Transport Package
Carton, Wood Case
Specification
ZC-11122 ZC-22222 ZC-22244 ZC-33366 etc.
Trademark
ZCHENG
Origin
Zhejiang, China (Mainland)
HS Code
8413110000
Production Capacity
500 Set/Sets Per Month
Product Description
China Petrol Station Self-Serve Submersible Pump LargeFlow Gilbarco Fuel Dispenser Price With Tokheim Type Product Description
| Specifications | |||||
| Model | Product | Motor | Pump | Flow meter | Nozzle |
| ZC-11111 | 1 | 1 | 1 | 1 | 1 |
| ZC-11122 | 1 | 1 | 1 | 2 | 2 |
| ZC-22222 | 2 | 2 | 2 | 2 | 2 |
| ZC-22244 | 2 | 2 | 2 | 4 | 4 |
| ZC-33366 | 3 | 3 | 3 | 6 | 6 |
| ZC-44488 | 4 | 4 | 4 | 8 | 8 |
| External color, size, shape and inner structure are optional. | |||||
| Technical parameter | |
| Ambient temperature | -25°C~ +55°C |
| Humidity | ≤90% |
| Flow rate | 5~60L/min or 5~90L/min |
| Nozzle | Auto shut-off |
| Suction distance | 6m(Vertical), 50m(horizontal) |
| Accuracy | ±0.30% |
| Repeating tolerance | ≤0.15% |
| Hose | 3m(low hang), 4.5m(high hang) |
| Inlet pressure | ≥54kPa |
| Outlet pressure | ≤0.3MPa |
| Voltage | 110V/220V/380V (50/60Hz) |
| Power | 1HP(0.75kw) |
| Noise | ≤80dB(A class) |
| Unit price range | 0.01~999.99 |
| Single volume range | 0.01~999999.99 |
| Accumulative volume range | 0.01~9999999999.99 |
| Ex-proof signal | ExdmbIIAT3 |
Company Profile
Packaging & Shipping
After Sales Service
Exhibition
Professional Team
FAQ Q1:Are you factory or trading company?
A:We are professional manufacturer for over 20 years
Q2:What kind of product do you make?
A:We produce professional fuel dispenser, LPG dispensesr, CNG dispenser,
mobile fuel dispenser, pump, flow meter, nozzle, etc.
Q3:Can you supply customized service
A:Yes.
Q4:Is that your fuel dispenser easy to operate?
A:Yes, each fuel dispenser packed together with one guide book to help
you get more info. of our fuel dispenser, guide you operate in the
correct way, and future maintain.
Q5:What can we do if we meet problem and need technical consulting?
A:Please give us detail of problem you have, any picture or video
will be more better to help us find a solution for you.
