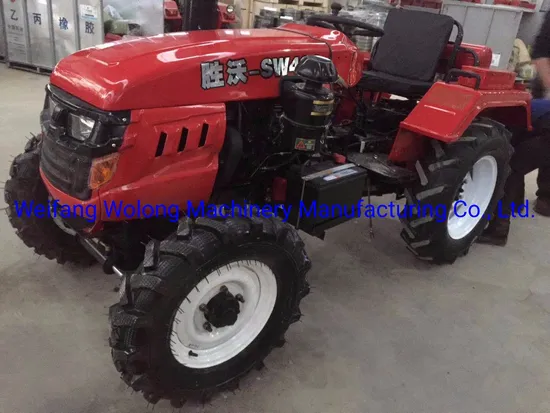

Four Wheel Tractor with 4 Cylinder 40HP Engine Rotary Tiller
| Negotiable | 30 unit (MOQ) |
Basic Info.
Model NO.
40hp
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Arable Machinery, Continuous Running Operation
Traction Type
Hanging
Drive Type
Belt
Arbor Configuration
Horizontal Axis
Certification
ISO
Color
Customized
Transport Package
Iron Frame
Specification
small
Trademark
wolong
Origin
Weifang
HS Code
8701911000
Production Capacity
5000 Units Per Year
Product Description
1) with compact structure, reliable performance, low fuel consumption, easy maintenance.
2) 40hp.
3) gear drive.
4) electric start,4 cylinder engine.
SPECIFICATIONS
| MODEL | 264(260) | 284(280) | 304(300) | 354(350) | 404(400) | 504 |
| TRACTOR PARAMETER | ||||||
| Drive form | 4*4(4*2) | 4*4 | ||||
| Outline size | 3350*1500*1860 mm | 3500L | ||||
| Structure weight | 1210-1380 KG | 1500 | ||||
| Front wheel base(mm) | 970.1200.1300 adjustable | 970.1200.1300 adjustable | ||||
| Back wheel base (mm) | 1000.1200.1300 adjustable | 1000.1200.1300 adjustable | ||||
| Spread of axles (mm) | 1750 | 1750 | ||||
| Minimum Ground Clearance(mm) | 330(340) | 330 | ||||
| DIESEL ENGINE | 2 cylinder JD | 2 or 3 cylinder JD/LD | 3 cylinder JD/CC | 4 cylinder JD/CC/YD | 4 cylinder JD/LD | 4 cylinder JD/LD |
| Type | In-line, water cooled, 4-stroke, natural aspirated | |||||
| Model | JD2100 | JD2102/LD385 | JD390/LD390/CC390 | JDM490/LD4L22/YD485 | JDM490/LD | LD4L100BT |
| Rated power(KW) | 19.1 | 20.58 | 22.06 | 25.7 | 29.4 | 36.8 |
| Rated speed(r/min) | 2300/2400 | |||||
| Aspiration | Natural aspirated | |||||
| Displacement(L) | 3.432 | 3.432 | 3.432 | 3.432 | 3.5 | 3.6 |
| Clutch | Single Disc, Dry, Dual-Stage, constant meshed | |||||
| TRANSMISSION | ||||||
| Gear box | 2 axis 4*(2+1) gear group type | |||||
| Shifting | Meshing sleeve gear shifting | |||||
| Differential Gears | Double planet wheels, closed type | |||||
| Differential lock | Pin type | |||||
| Final transmission | Planet wheel type | |||||
| PTO SHAFT | ||||||
| Type | Independent and synchronous PTO. | |||||
| Speeds | R/min | 540/720 or 540/1000 | ||||
| Three point linkage | Category II | |||||
| Control | Position | |||||
| Hydraulic output adaptor | Size: M16X1.5, quantity: 1; Output flow rate: 20L/min | |||||
