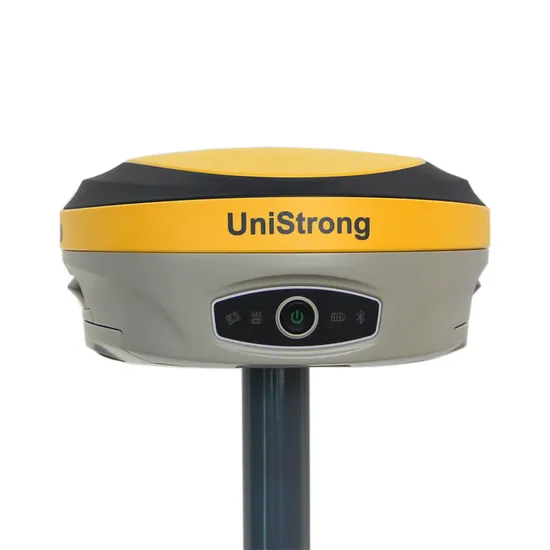

GPS Rtk Receiver GPS Survey Equipment Unistrong G970II PRO Dual Frequency Land Surveying Gnss Rtk Receiver Dgps Rtk
Basic Info.
Model NO.
G970II Pro
Operating Principle
Interferometric Type
Chip
Sirf
Port Number
1408 Channel
Brand Name
Unistrong
Model Number
G970II PRO
Product Name
G970II PRO Gnss Receiver
Contellation
GPS, Glonass, Beidou, Galileo
Static Accuracy
2.5mm +0.5ppm, 5mm+0.5ppm
Rtk Accuracy
8mm+1ppm, 15mm + 1ppm
Channel
1408 Channels
Internal Momery
4GB
Application
Topographic Survey, Engineering Survey, Marine Sur
Special Features
LED Screen, Tilt Sensor, Ebuble, Two Battery
Accuracy
1mm
Vertical Lines
1
Horizontal Line
1
After-sales Service
3 Years
Warranty
3 Years
Transport Package
1 Set Packed in 2 Cartons
Trademark
UNISTRONG
Origin
China
HS Code
9015800090
Production Capacity
20000PCS/Year
Packaging & Delivery
Package Size
80.00cm * 45.00cm * 35.00cm
Package Gross Weight
30.000kg
Product Description
| GNSS | Channel | 1408 |
| Signals | BDS B1, B2, B3; GPS L1CA, L1P, L1C, L2P, L2C, L5; GLOASS G1, G2, P1,P2; GALILEO E1BC, E5A, E5B; QZSS L1CA, L2C, L5, L1C;SBAS L1CA, L5; L-Band | |
| Accuracy | Static | Horizontal 2.5mm±1ppm Vertical 5mm±1ppm |
| RTK | Horizontal 8mm±1ppm. Vertical 15mm±1ppm | |
| DGNSS | <0.5m | |
| ATLAS | 8cm | |
| Initialization Time | 8s | |
| Initialization Reliability | 99.9% | |
| System | Operating System | Linux |
| Memory | 8GB, support expandable MicroSD | |
| WIFI | 802.11b/g/n | |
| Bluetooth | V2.1+EDR/V4.1 dual, Class2 | |
| E-bubble | Support | |
| Tilt Survey | Support IMU Tilt survey, no need calibration | |
| Audio | Support TTS audio broadcast | |
| Datalink | UHF | TRx internal radio, 1w/2w adjustable |
| Protocol | Support Geo talk, SATEL, PCC-GMSK, Trim talk, Trim Mark, South | |
| Network | 4G-LTE, TD-SCDMA, CDMA(EVDO,2000), WCDMA, GSM(GPRS) | |
| Physical | Interface | 1TNC for 1 Radio Antenna, 15 pin for power and RS232, 17pin for USB and RS232 |
| Button | 1 power button | |
| Indication Light | 4 indication Lights | |
| Size | Φ156mm×H76mm | |
| Weight | 1.2kg | |
| Environment | Work Temperature | -30ºC~+65ºC |
| Storage Temperature | -40ºC~+80ºC | |
| Dustproof & Waterproof | IP67 | |
| Humidity | 100% non-condense |
