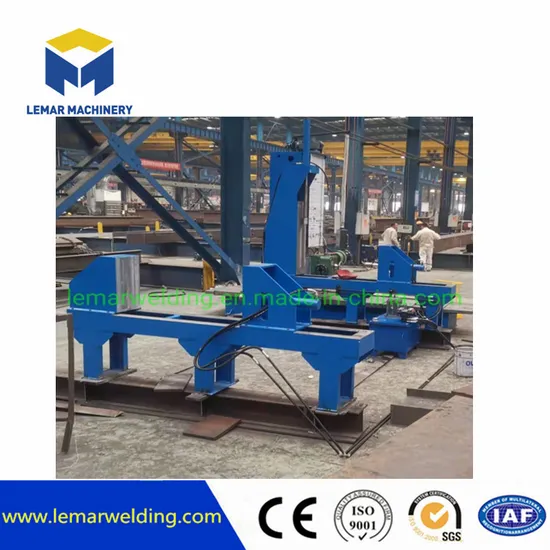

Vertical 1500*2000mm Box End Milling Machine H Beam Flange Web Milling Machine
| US$20,000.00-35,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DX1520
Type
Tool Milling Machine
Object
H Beam Box Beam
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE
Condition
New
Application
Metal Steel Beams Milling Machine
Milling Range
1500*2000mm
Speed Mode
Variable Frequency Stepless Speed Regulation
Milling Head Spindle Speed
50-500rpm
Milling Angle
0~45 Degree
End Milling Cutter Diameter
200-400mm
Vertical Lifting Motor
2.2 Kw 1400 Rpm
Milling Cutter Head Diameter
160-315mm
Oil Pump Motor Power
4 Kw
Structure Shape
Bed Type
Milling for
H Beam Box Beam Pipe
Control Mode
CNC
Horizontal Feed Motor Power
5.5kw
Horizontal Movement of Milling Head
80mm
Voltage
380V 50Hz
Transport Package
Container
Trademark
Lemar
Origin
Wuxi, China
HS Code
8459699000
Production Capacity
1000 PCS/Year
Product Description
Vertical 1500*2000mm Box End Milling Machine H Beam Flange web milling machine·Easy to use
·Low cost of use
·Save labor
·End face milling for H-beam Box beam Big pipe
Optional size:
800*1000mm End face milling machine
1200*1200mm End face milling machine
1500*1500mm End face milling machine
1500*2000mm End face milling machine
1500*3000mm End face milling machine
2000*2500mm End face milling machine
2000*4000mm End face milling machine
3000*6000mm End face milling machine
Technical Details:
| Model | DX0810 | DX1212 | DX1215 | DX1520 | DX2020 | DX2025 | DX2040 | DX3060 | |
| Machining range of face(mm) | 800×1000 | 1200×1200 | 1200×1500 | 1500×2000 | 2000×2000 | 2000×2500 | 2000×4000 | 3000×6000 | |
| Horizontal the milling speed(mm/min) | 50-440 | 50-500 | |||||||
| Vertical milling speed(mm/min) | 22-550 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | 22-600 | |
| Horizontal motor (kw) | 3 | 4 | 4 | 4 | 4 | 4 | 4 | 7.5 | |
| Vertical motor (kw) | 1.5 | 2.2 | |||||||
| Milling angle(°) | 0-45 | ||||||||
| Milling Head Specifications | TX25A | TX32A | TX40A | TX50A | |||||
| Milling head power (kw) | 4 | 5.5 | 7.5 | 11 | |||||
| Cutter rotational speed(rpm) | 125-1420 | 125-1440 | 1440 | 1460 | |||||
| Applicable cutter diameter(mm) | 100~160 | 125~250 | 160~320 | 200~400 | |||||
| Gross Weight (t) | 4 | 5.5 | 5.8 | 7.6 | 8.3 | 8.5 | 9 | 15.5 | |
H-beam Box beam CNC End face milling machine is made of high-quality cast iron and tempered twice to eliminate stress, and the machine tool is not easy to deform;
The table movement speed of Automatic CNC Control miller adopts infinitely variable speed to ensure the stability of the machine tool;
CNC Control adopts numerical control panel and liquid crystal display screen, which is more intuitive to view and has higher processing accuracy;
Vertical CNC End face milling machine for steel structure adopts special milling cutter, which has accurate scale, strong rigidity and good cutting and milling effect.
