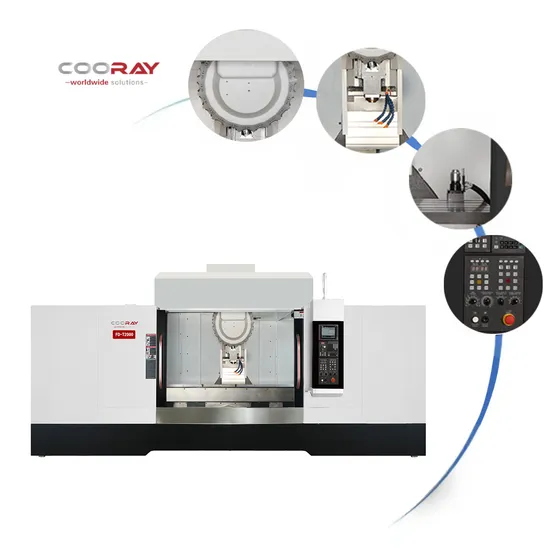

Cooray Cr-Vmc Drilling and Tapping Machine Vertical Machining Center

Cooray Cr-Vmc Drilling and Tapping Machine Vertical Machining Center

US$50,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DRILLING AND TAPPING MACHINE
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Condition
New
Core Components
Bearing, Motor
Brand Name
Cooray
Product Name
Fd-T1600
CNC or Not
CNC
Transport Package
The Two Sides Negotiate Logistics.
Specification
4200*2600*2700mm
Trademark
COORAY
Origin
China
HS Code
84609090
Production Capacity
500

Packaging & Delivery

Package Size
420.00cm * 260.00cm * 270.00cm
Package Gross Weight
7200.000kg

Product Description

Product Description

Machine data/model


Unit
FD-T640
FD-T740
FD-T8
FD-T10
FD-T1600
FD-T2000
FD-T2500
FD-T3500
FD-T4500
FD-T6500

Travel		 XYZaxistavel mm 600/400/300 700/400/350 800/500/420 1000/500/300 1600/600/350 2000/600/350 2500/580/600 3500/580/600 2000/580/600 6500/580/600
Distance from spindle nose to table surface mm 150-450 150-480 110-530 150-450 150-500 150-500 120-720 120-720 120-720 120-720
Distancefom spindecenterto colum gudesurface mm 420 500 558 600 600 600 660 660 660 660

Workbench		 Workbench size mm 700×420 800×420 1000×500 1100×500 1700×500 2000×500 3100×500 4000×500 5000×550 7000×550
Workbench load-bearing kg 300 300 450 400 600 600 650 650 650 650
T-slot(number of slot-sizexspacing) mm 3×14×125 3×14×125 5×18×90 5×18×100 5×18×114 5×18×114 4×18×106 4×18×106 5×18×100 5×18×100

Spindle		 Spindletaper specifications - BT30 BT30 BT30 BT30 BT30 BT30 BT30 BT30 BT30 BT30
Spindlemotor power kw 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5 5.5
Spindle speed rpm 20000/24000 20000/24000 20000 20000/24000 20000/24000 20000/24000 20000 20000 20000 20000

Three-axis parameters		 Three-axis motorpower(XY/Z) kw 1.6/1.6/3.0 1.6/1.6/3.0 1.6/1.6/3.0 1.6/1.6/3.0 1.8/1.8/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0 3.0/3.0/3.0
XY/Zaxis rapid moving speed m/min 48/48/48 48/48/48 48/48/48 48/48/48 36/36/36 36/36/36 32/32/32 32/32/32 32/32/32 32/32/32
Cutting feedspeed mm/min 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000
Position Position accuracy mm ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005 ±0.005
Repeated position accuracy mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003

Magazine		 Magazine capacity Put 21 21 21 21 21 21 21 21 21 21
Themaximum weightof cutter kg 3 3 3 3 3 3 3 3 3 3
Themaximumlength of cutte mm 250 250 300 250 250 250 250 250 250 250
Cutter diameter(full/nterspace) mm 100/140 100/140 100/140 100/140 100/140 100/140 100/140 100/140 100/140 100/140
Magazine form - Arm Clamping ArmClamping Arm Clamping Arm Clamping Arm Clamping Arm Clamping Arm Clamping Arm Clamping ArmClamping ArmClamping

Other		 Pressure demand Kg/cm² ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6 ≥6
Machine weight kg 3500 3600 4200 4800 7200 7500 8500 11000 12000 13500
Machine size(Lengthxwidthxheight) m 1.9×2.3×2.4 2.0×2.3×2.4 2.3×2.4×2.5 3.2×2.5×2.6 4.2×2.6×2.7 5.2×2.6×2.7 5.6×2.7×2.7 6.7×2.8×2.7 6.9×2.8×2.7 8.2×3.0×2.7
