Horizontal Machining Center Industrial Machinery Automation CNC Horizontal Milling Machine

Product Description

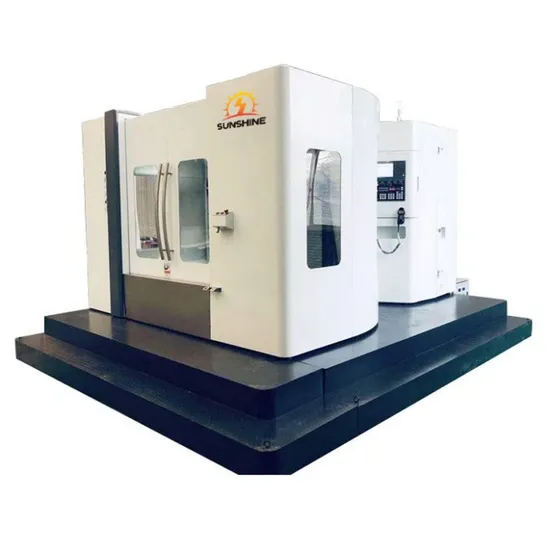

HMC1395
Horizontal Machining Center Industrial Machinery Automation CNC Horizontal Milling Machine
Processing workpiece
The application fields of horizontal machining centers are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy and many other industries and fields. It can process parts such as gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, etc.
Product Parameters

Models	HMC1075	HMC1290	HMC1395	HMC1814	Invert T500	Invert T630
Table size (mm)	1300X600	1360X700	1400X700	2000X900	500*500	630*630
Maximum allowable load (Kg)	800	1000	1000	1600	600	950
X-axis travel(mm)	1000	1200	1200	1800	600	1050
Y-axis travel (mm)	750	800	800	1280	360	750
Z-axis travel(mm)	800	700	750	900	450	900
T-slot	5-18-105	5-18-122	5-18-122	5-22-165	-	-
Distance from spindle end face to work table (mm)	115-915	180-880	168-918	200-1100	150-850	-
Distance from spindle center to Z-axis guide surface (mm)	110-860	140-940	260-1060	140-1420	130-650	130-1030
Spindle taper	BT50-150	BT50-190	BT50-190	BT50-190	BT40-150	BT50-190
Spindle speed(r/min)	6000	6000	6000	6000	8000	6000
X/Y/Z rapid movement (m/min)	20/12/20	20/12/20	20/12/20	18/12/18	20/12/20	20/12/20
Machine weight(Kg)	8000	10000	10000	15000	8000	10000

Detailed Photos
Workbench
The workbench of the horizontal machining center is placed horizontally, making the clamping of the workpiece more convenient and quick. This design is conducive to reducing clamping time, improving production efficiency, and also helping to improve the stability of the machining process. The workpiece is easier to maintain balance in a horizontal state, reducing machining errors caused by vibration and deformation. Because the workbench can rotate, the horizontal machining center can realize the machining of multiple surfaces of the workpiece, improving the flexibility and efficiency of machining.

Spindle
The rigidity of the spindle is crucial to machining accuracy. With strong rigidity and high torque, it can provide stable and high-speed rotation. This high-performance spindle is conducive to high-precision and high-efficiency machining. At the same time, it can quickly replace the tool according to different machining requirements, which improves the flexibility and efficiency of machining.

CNC system
It uses a rotating operation panel, which can be used for FANUC, SIEMENS, and HNC. The CNC system uses advanced control algorithms and sensor technology to achieve precise control of the movement of each axis of the machine tool. The operation interface is usually designed to be intuitive and friendly, allowing operators to easily get started and quickly master it. This easy-to-operate feature reduces the requirements for operator skills and increases the popularity and utilization of machine tools.

Tool magazine

The disc-type tool magazine can rotate without noise and change tools quickly and accurately. It can accommodate various types of tools, such as milling cutters, drills, boring tools, etc., to meet different processing needs. This diverse tool storage capacity enables the horizontal machining center to flexibly respond to various processing tasks.

Electrical cabinet

The internal layout of the electrical cabinet is reasonable, and it uses high-quality electrical components and heat dissipation design to ensure that the CNC system maintains stability and reliability during long-term operation. This stability is essential to improving machining accuracy and extending the service life of machine tools.

Application Areas
Processing workpiece
The application areas of horizontal machining centers are very wide, such as aerospace, medical equipment, energy, transportation, automobile manufacturing, mold manufacturing, heavy machinery manufacturing, new energy, and many other industries and fields.
Horizontal machining center flexible production line
