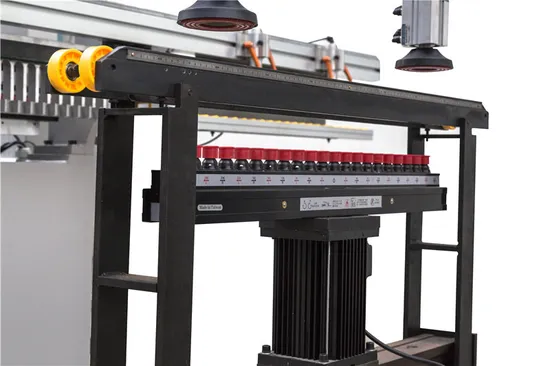

Double Lines Drilling Machine for Making Furniture
| US$2,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MZ73212C
Controlling Mode
CNC
Number of Shaft
5
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Maximum Diamenter of Holes
35mm
Depth of Drilled Holes
0-60mm
The Number of Spindles
63
Center Distance Between Spindles
32mm
Rotation of Spindle
2840r/Min
Total Motor Power
4.5kw
Suitable Voltage
~380V
Air Pressure
0.5-0.8MPa
Overall Size
2600*2600*1600mm
Weight
1260kg
Transport Package
Wooden Case
Specification
10.8CBM
Trademark
QDZD
Origin
Qingdao
HS Code
84659500
Production Capacity
500sets/Year
Product Description
double lines drilling machine for making furnitureTechnical Specification:
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| The number of spindles | 42 |
| Center distance between spindles | 32 mm |
| Rotation of spindle | 2840 r/min |
| Total motor size | 4.5 kw |
| Suitable voltage | 380 v |
| Air pressure | 0.5-0.8 Mpa |
| Gas consumption for drilling ten panels per minutes approximately | 20L/min Approximately |
| Max. distance of the two longitudinal heads | 1850 mm |
| Height of working platform off the ground | 800 mm |
| Over size | 2000x1200x1600 mm |
| Packing size | 2660x1260x1840 mm |
Product Details:
Certificate:
Our Services: (1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
Eva Liang
If you have any question,please contact me
