Low Price High Quality Industrial CNC Automatic Pliers Polishing Machine

Product Description

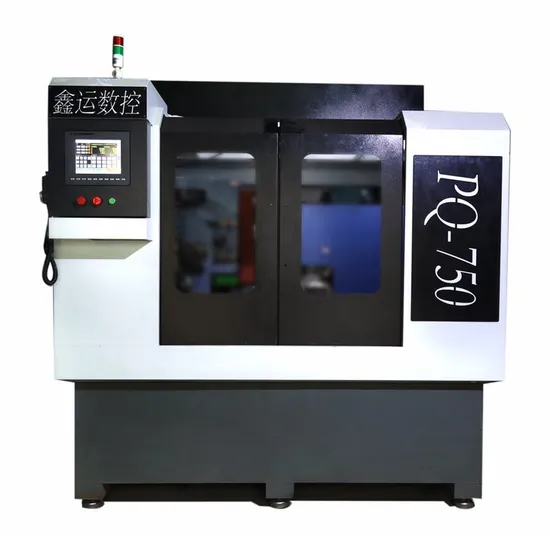

This is CNC auto pliers polishing machine with 9 axes. It can polish all faces for many kinds of the pliers. This is the latest technology in hand tools polishing.
Application: It can polish many kinds of pliers, like combination pliers, long nose pliers, side cutter, water pump pliers etc.
Machine Feature
1.Fully automation solution. No need to rely on the skilled workers.
2.Can decrease the polishing labor cost a lot. One normal worker can operate four machine who will only put the workpiece.
3.Euipped with Japanese laser calibration system on the machine to avoid from workpiece difference issue.
4.Specailly designed clamping system to obtain rigid and equal clamping.
5.Using Taiwan SYNTECH controller which can fulfill remote programming for the user.
6.One clamping for all operations. The production can be 800 pairs/shift.
7.Adopting the coolant polishing to avoid from dust pollution. In this case, the workshop can be very clean and organized for building good company image.
8.Using 3M abrasive belt. One shift will only use one belt for one station.

Spec.	PQ-750
X axis travel	700mm
Y axis travel	500mm
Z axis travel	100mm
A axis travel	±50°
B axis travel	360°
Feeding system X axis travel	500mm
Feeding system Y axis travel	300mm
Feeding system Z axis travel	30mm
Right side main motor torque	5.5KW
Middle main motor torque	4KW
Left side main motor torque	4KW
Repeated positioning	0.01mm
Total power	22 kw
Machine size	2800*2300*2400mm
Machine Weight	10T

Standard Configuration
1.SYNTECH controller advanced model
2.Japan THK/Taiwan HIWIN guide rail
3.Japan THK/Taiwan HIWIN lead screw
4.NSK bearings
5.Calibration system
6.Dust separator
