Szgh-650 Top Rated 3 Axis CNC Machine Metal Working Milling Machine Tool

Product Description

Product Description

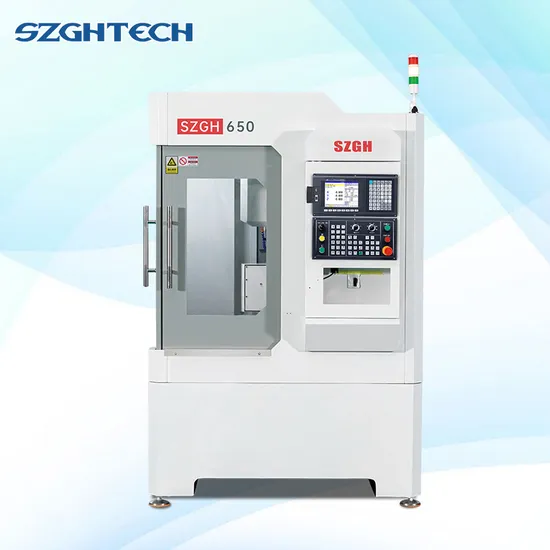

SZGH-650 Top Rated 3 Axis CNC Machine Metal Working Milling Machining Machine Tool From China Factory
Product Overview
SZGH-650 is suitable for processing copper, iron, aluminum and stainless steel workpieces within 600mmX500mm.The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 30mm and drilling within 20mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improving per capita output efficiency and reducing processing costs.
Standard Configuration

Project		Unit	Standard value	Max value
Processing capacity	Maximum drilling diameter	mm	Aluminum φ35/ Steel φ30	Aluminum φ40/ Steel 35
	Max. Tapping Diameter	mm	Aluminum m25/ Steel m18	Aluminum m25/ Steel m20
	Max. milling cutter diameter	mm	φ60	φ100
	Max. Spindle speed	rpm	6000	Optional 24,000-rpm motorized spindle
	Handle Type	-	BT40	Optional BT30
	Magazine capacity	-	10-station servo tool magazine	12 station tool magazine
	Repeatability	mm	0.01	-
	Surface engraving accuracy	mm	±0.02	optional ±0.01
workbench	Distance from table surface to spindle end	mm	Minimum 150 Maximum 450	-
	Effective stroke of working surface	mm	600*500	-
Travels	X-axis effective travel	mm	500	-
	Y-axis effective travel	mm	600	-
	Z-axis effective travel	mm	300	-
Feed	X-axis rapid traverse	m/min	25	30
	Y-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	20	25
	Various cutting suggested speeds	m/min	1000	-
Spindle	Max.Spindle Speed	rpm	6000	Optional 24000electric spindle
	Spindle Motor Power	kW	3.7	Optional 5.5kw
	Spindle type	-	mechanical spindle	Optional electric spindle
	Spindle taper	-	BT40	Optional BT30
Dimensions	Dimensions	mm	1650*1800*2450	-
	Total Weight	kg	2900	-

Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	32mm	Taiwan precision p grade	-
	Guide rail	30mm	Taiwan Precision C3 Grade	-
	Spindle	BT40	Yashu self-made	other
	CNC Control	-	Yashu self-made	Optional Huazhong
	Feed servo	X.Y1.2kw&1.5kW	Yashu self-made	Optional Huazhong
	Spindle servo motor	3.7kW	Yashu self-made	Optional Huazhong
Machine specifications	Tool magazine	10/12 handle	Yashu self-made	-
	Base form	1200kg	Heavy-duty anti-deformation patented base	-

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail. Product Features
*The key components are equipped with high-quality wear-resistant configurations from Taiwan, which makes the machine tool more durable within the design accuracy range.
*The weight is enough to support the anti-vibration and improve the accuracy and smoothness.
*Equips with auto lubrication system to ensure transmission system smoothly and long-term running.
*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.
*The high rigidity cast base and gantry provide confidence of perfect stability and high precision when the operation.
*3.7 kW, 6000 RPM spindle motor with BT30 shank, equipped with 6-station linear pneumatic tool changer, which can change tools more efficiently.

Application

Company Profile
SZGHTECH is a manufacturer of CNC systems and industrial robot arms with more than ten years of industrial experience. We have been committed to providing customers with the best industrial automation solutions. Our company is clearly structured and includes R&D, production, sales and technical support departments to ensure that we can provide the best possible service.
Our products and services include CNC systems, industrial robot arms, supporting software and training services. Our CNC systems and robotic arms are suitable for a wide range of industries and fields. Our software and training services help customers get up to speed quickly and understand the best way to use their products.
Our strength and uniqueness lies in the excellent quality of our products and reasonable prices. We continuously invest in R&D to keep up with the latest developments in the industry. Our technical support team is always on hand to ensure that our customers' equipment remains in top condition and downtime is reduced.
Our vision is to be an industry leader and provide customers with the best industrial automation solutions. Our mission is to help our customers increase efficiency and reduce costs while improving production quality. Our team consists of a group of experienced and passionate professionals who will do their best to provide the best service to their clients.
If you are interested in our products and services, please feel free to contact our sales team or technical support team, we look forward to helping you.
Packaging & Shipping

FAQ
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian, Korean, Italian, and so on.
6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.
You can also send us the products drawing ,we will choose the most suitable machines for you.
8.Does your cnc support booting logo exchange?
Yes, no problem.
