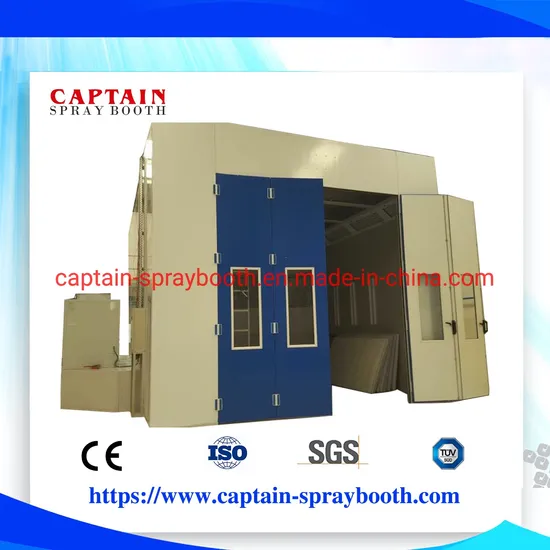

Customized Truck Spray Booth, Industrial Auto Coating Equipment

Product Description

Product Description
We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .

1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
Product Description

Booth Dimension
- Internal Size(L×B×H)	12000×4500×4000mm(L×W×H) & 39'4''X14'8''X13'1''
- External Size(L×B×H)	12144×6396×4600mm(L×W×H) & 39'8''X20'9X15'1''
Foundation and Floor
- Grid	2 rows air exhust plenum chamber
- Metal Basement	Need to build the base construction , 2 rows of pits in the ground for exhaust air, dimension of each pit is10350×760mm((LxW), with galvanized grids made by twisted steel and flat bar above
Wall and Door
- Steel Wall	Double construction with insulations EPS , thickness 75mm,0.5mm steel thickness, width:950mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside
- 3-Folded Entrance Door With Safety Glass Window	1 Unit, 3800×3900 mm(WxH) galvanized steel cover frame, with polystyrene(EPS) inside
- Operator's Door With Safety Glass Window	1Unit, 650×1800 mm(W×H)
Lighting System
- Ceiling Lights	16Units, each 3×36 W, with electronic ballasts
- Side Lights	18Units, each 2×36W, with electronic ballasts
- Brightness	>1000LUX
Filter System
- Filter	Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter
- Filtering area	46M2
Ventilation System
- Intake air system (Fresh Air)	4×5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, total air capacity 65000m3/h
- Exhaust air system(Exhaust Air)	2×7.5KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-560H, total air capacity 50000m3
Heating System
- Heating Exchange	Stainless Steel
- Heating Exchange Capacity	260000Kcal/h
- Max. Drying Temperature	80 °C
- Heating time	8-12 min (from 20 to 60) by Drying Phase
- Heating Type (optional)	RIELLO RG5S (260000 kcal/h)Diesel )2 sets
Control Box
- Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. exhaust reduction voltage motor start
- Total power	44KW

Detailed Photos
Basic Draw
Production
Package and delivery
Installation
Stainless Steel heat exchanger with high safety
Control Panel
installed models
different colors for your choice
our workshop
factory view
1. This paint spray booth is suitable for 12m bus.
2. Has CE certification
3. High quality, competitive price, famous brand in China.
4. OEM is available.
5. Can be produce as customer's requir.
Booth DimensionsExterior size(mm)(L)12125× (W)8400× (H)5000
Interior size (mm)(L)12000× (W)5000× (H)5000
Foundation and FloorLoading capacity of galvanized No basement, with side air collector, each side has 5 units, total 10units air collector, each unit size: (L)2000× (W)500× (H)800mm
Surface area of rear exhaust box15 m²
Metal BasementNo
Drive-in rampsNo

Wall and doorSteel wall75 mmthick EPS panel
Roof panelDouble-layer galvanized plate, with heat insulation cloth inside.
4Folded entrance door with safety glass window1 unit.
entrance door size: (W)4000× (H)4300 mm
Operator' s door with safety glass windows2 unit, (W)800× (H)1800mm
LightingCeiling lightings12 units, each unit: 4× 36 W, total 1728W, IP54
Side lightings18units, each unit: 2× 36 W, total 1296W, IP54
Brightness> 950Lux
FiltrationPrefiltersPlate filter, G3 grade
Ceiling filtersF5 grade filter
Exhaust filtersBottom, G2 grade filter
Introduction of our company
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
