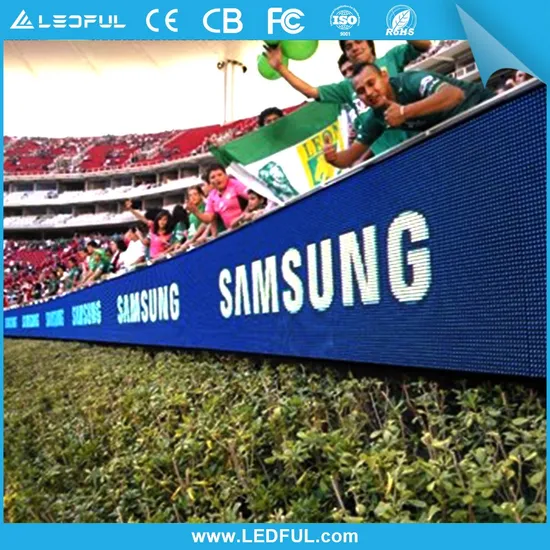

Indoor Outdoor Waterproof P6.67 P8 P10 P16 960*960 SMD Full Color Sports Basketball Football Baseball Stadium Perimeter Advertising LED Display Billboard Screen

Product Description

Specification

Indoor/Outdoor PM	IPM6	IPM10	OPM8	OPM10	OPM16
Pixel Pitch(mm)	6	10	8	10	16
Pixel Matrix Per Sq.m	27777	10000	15625	10000	3906
Pixel Configuration	SMD3528	SMD3528	SMD3535	SMD3535	SMD3535
Brightness (nits)	2200	1800	6800	7500	8000
Scan	1/8	1/4	1/3	1/2	1/1
Module Dimension	192x192mmZ0.63x0.63ft	320x160mm/1.05x0.52ft	320x160mmZ1.05x0.52ft	320x160mmZ1.05x0.52ft	256x256mmZ0.84x0.84ft
Cabinet Dimension	960x960mm/3.15x3.15ft	1280x960m m/4.2x3.15ft	1280x960m m/4.2x3.15ft	960x960mm 73.15x3.15ft	1024x1024mmZ3.36x3.36ft
Cabinet Resolution	160x160	128x96	160x120	96x96	64x64
Cabinet Weight	40kg / 88lb (Iron)	44kg / 97lb (Iron)	49kg / 1081b (Iron)	33kg Die casting aluminum	46kg/ 1011b (Iron)
Power Con. (Max / Avg)	550/ 100 w/sq.m	500 / 90 w/sq.m	680/ 120 w/sq.m	900 / 180w/sq.m	690/ 130 w/sq.m
IP Rate	IP43		IP65
Service Access	Front / Rear		Rear
Refresh Rate (HZ)	2880		>1920
Grey Scale (bit)	14bit		16bit
Viewing Angle (H/V)	140/140
Input Voltage (AC)	110V/240V

Company Profile LEDFUL is a top LED display manufacturer with 13 years rich experience providing 3 years warranty.
We concentrate on LED Poster, Transparent LED screen, Outdoor & Indoor commercial LED billboard,
Rental LED screen, Sports LED display.
Certifications Due to our best balance of quality & price with strong reputation, our LED displays are exported to 83
countries in Europe, America, Asia, Africa, and Oceania with successful 5600 projects. Besides LEDFUL
obtained CE, FCC, RoHS, CCC, UL, ETL, EMC, ISO9001 certificates. A state-of-the-art manufacturing
and testing facility ensures LEDFUL products of the high and stable quality.
Each product goes there 16 monetary procedures 23 operating procedures in 1500 tests and experiments.
Packaging & Shipping All employees are honest, responsible and diligent. Dedicated to professional,
high efficient and caring features, our experienced sales engineers listen to you,
think more for you.
In addition, take good care of each detail of your order, packages and shipping.
We also welcome deep customized, OEM, ODM orders and distributors application.
LEDFUL is a trusted one-stop LED display solution provider with more designs and more solutions.
Our partners are media advertising, audio, video & light, retail, property, religion, sports, event, studio.
Front service, double sided, column, flex, curved, sphere, 90 degrees, any irregular shaped LED display
are available.
Our corporate philosophy is to maximize the value for our customers and to provide the best service for
our customers.
FAQ 1.Q: Can it be stacked?
A: Yes, it can be stacked two or three cabinets high with steel structure on the back.
2.Q: How to display ultra long videos on the perimeter screen?
A: We have special software which is for free to make ultra long videos.
3.Q: How's the protection grade?
A: PM series has soft rubber facial mask and soft top cover, which will protect the LED from hitting, meantime will protect players from injury.
4.Q: Are you trading company or manufacturer?
A:LEDFUL is a professional LED display manufacturer, having been enrolled in led display industry with professional
R&D team and skilled QC team for 13 years.
5.Q: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Support cluster play and management.
Support APP/Phone/WIFI Ipad/Laptop/PC/Cloud control. It's very easy and convenient to control.
6.Q: What is your best service?
A: One to one sales engineer to customer responsibility system. We will do:
1) Know your project and provide the best solution for it.
2) Track your order and let you know each step and detail of it.
3) Teach you how to install and use the screen.
4) Care the subsequent use of your screen and ensure vour after -sales service be well.
7.Q: How about your Warranty Term?
A: 3-year warranty. we have professional after-sale team to solve your any questions after you placed an order.
And your exclu-sive sales engineer will also help you to get over any problems.
LEDFUL, Makes The World More Colorful.
