Advanced ABC Plastic Bag Film Blowing Machine (Three Layer Co-extrusion)

Product Description

Product Description

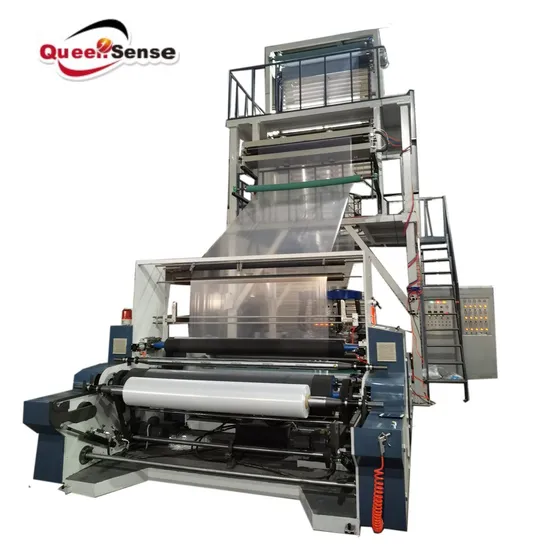

Advanced ABC High-Speed Plastic Bag Film Blowing Machine (Three-Layer Co-extrusion Technology)

Overview:
Our ABC High-Speed Three-layer Co-extrusion Film Blowing Machine is a state-of-the-art solution for producing high-quality multi-layer films.
Designed with three-layer co-extrusion technology, this machine is perfect for creating films with enhanced strength,
barrier properties, and versatility. Whether you need films for food packaging, industrial applications, or agricultural use, this machine delivers consistent, high-performance results.
Key Features:
Multi-Layer Co-extrusion: Produces 3 to 5 layers of film, offering superior strength and functionality.
High-Speed Production: Engineered for maximum output efficiency without compromising film quality.
Precision Control: Advanced PLC system and user-friendly touchscreen interface for seamless operation.
Energy Efficiency: Optimized design to reduce energy consumption and operational costs.
Durable Construction: Built with high-quality materials and components for long-lasting reliability.
Applications
Product Details
Product Components
Technical Specifications:
Film Width: Adjustable to meet various production needs.
Screw Diameter: 85mm alloy screw for consistent material processing.
Die Head: 400mm high-pressure rotary die head for uniform film thickness.
Cooling System: Dual air ring cooling for smooth and even film formation.
Motor: 45kW frequency-controlled motor for energy savings and precise speed adjustment.
Rewinder: Double rewinder for high productivity and efficient film collection.

Most Popular Optionals
Main technical parameters:

Model	QS-GS1200	QS-GS1500	QS-GS2100
Diameter of screw	55×2 60×1	60×2 65×1	65×2 70×1
Length-diameter ratio	28:1/30:1
Speed of screw	15-150r/min
Power of main motor	15Kw×2 18.5Kw×1	18.5Kw×2 22Kw×1	22Kw×2 30Kw×1
Output of a single extruder	120kg/h	150kg/h	200kg/h
Specification of die orifice	150 φ200	200 φ250×1	250 300×1
Film thickness	0.01-0.10mm
Max. lay-flat width of film	1000mm	1200mm	1500mm
Electric total capacity	76Kw	88Kw	102Kw
Overall dimensions:	6600×4100×5000mm	6800×4300×6000mm	7000×4800×7500mm
Machine weight	4T	5T	6T

Why Choose Us?
Why Choose Us?
Innovative Technology: Stay ahead with our advanced co-extrusion solutions.
Customizable Options: Tailored to meet your specific production requirements.
Rich Experience: We have 25+ years and 60+ countries international trade experience, which guarantee your purchasing experience.
Lifelong Technical Support: Comprehensive after-sales service and lifelong technical assistance to ensure your success.

All our machines are certificated.
Packaging & Delivery:
Protected by Insurance: Your product is securely protected by insurance while delivering.
Packaging Details: Standard export packaging to ensure safe transportation.
Delivery Time: Shipped within 30 days after order confirmation.

Company Profile
FAQ

Frequently Asked Questions (FAQ)
1. What is the maximum film width? The machine produces films with widths ranging from 1200mm to 1800mm, adjustable to meet various production needs.

2. Can it handle different materials? Yes, it is compatible with a variety of materials, including LDPE, HDPE, LLDPE, and more.

3. What is the production speed? Designed for high efficiency, the machine features a 45kW frequency-controlled motor for fast and consistent output.

4. How many layers can it produce? It supports three to five-layer co-extrusion, allowing for films with enhanced strength and barrier properties.

5. Is it easy to operate and maintain? Yes, the machine is equipped with an advanced PLC system and user-friendly touchscreen interface,
making operation and maintenance simple.

6. What cooling system does it use? The dual air ring cooling system ensures smooth and even cooling for high-quality film formation.

7. Can the machine be customized? Absolutely! We offer customizable options for film width, layer configuration, and other specifications to meet your needs.

8. What optional accessories are available? We provide a range of optional accessories, including:
Auto loader
Air compressor
High-speed net change
Traction rotary
IBC (Internal Bubble Cooling)
EPC (Edge Position Control)
Chiller
Auto rewinder
Film weight tester
Cast aluminum heater
Corona treater
Automatic width controller
Options you want is not listed? Don't worry. We have a professional engineer team to help you solve your concerns.
Feel free to reach out to me at anytime for questions!

9. What after-sales support do you offer? We provide comprehensive support, including installation guidance, operational training, technical assistance,
and spare parts supply.

10. What is the delivery time? The machine is typically shipped within 30 days after order confirmation.

11. Is there a warranty? Yes, we offer a standard warranty to cover manufacturing defects and ensure your investment is protected.

12. Can we visit your factory? Yes, we warmly welcome all customers to visit our factory!
See our machines in action and discuss your requirements with our team.
