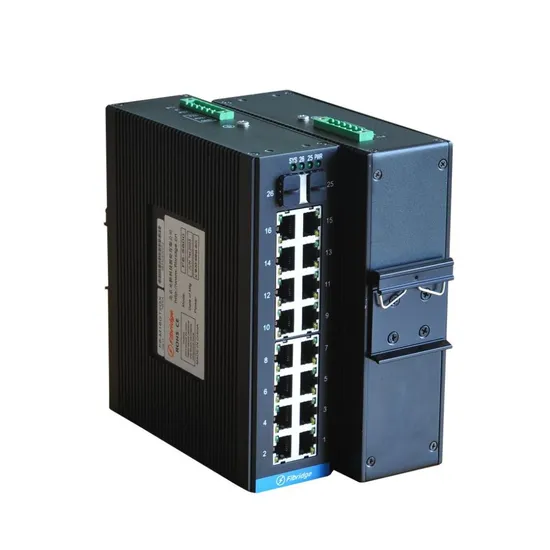

DIN-Rail 2-Port 1000m Fx SFP + 16-Port 1000m Tx Industrial Network OEM Managed Ethernet Switch

Product Description

Product Introduction Fibridge F6-M16GT2GX series network management industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 16* 10/100/1000 Mbps Ethernet interfaces and 2* 1000 Mbps optical ports. With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-M16GT2GX series industrial switches can be built-in network management module, provide Console and Ethernet two kinds of network management interface, can support Console, WEB, Telnet and SNMP and other network management methods. The device is built-in power module, providing 220V AC input or 12V DC input options. Poe+ function is optional. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.
Product Features
Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p through mode;
To meet the requirements of reliable work in harsh electrical environment;
Support SNMP, Telnet, Web and CLI Management Methods;
Support to query and configure the status of each port,
including connection status, rate, duplex, closed, Port Mirroring,storm control;
Support flow control;
Support IPv4/IPv6;
Support IGMPv1/2/3 and MLDv1/2 Snooping;
Support registration of GMRP protocol
Support ACL;
Support SSH V1/V2/HTTPS;
Support ROMN;
Support security access control, support RADIUS/TRCACS;
Support STP/RSTP/MSTP/EAPS/ERPS;
Support Poe+ function;
With powerful historical warning information and log
information query and management functions;
Support overload protection;
Reverse-link protection is supported;
Support light hot plug;
Level of protection:IP40; Detailed Photos
Product Parameters

Network Characteristics
Ethernet Protocol	IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store and forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP
	ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	Support IEEE 802.1q standard VLAN
MAC Addresses	12K
Jumbo Frame	Max size 9K
Cache	4Mb
Exchange capacity	52Gbps
Packet Forwarding Rate	38.688Mpps
Management	Support WEB,Telnet
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature:-40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC48~56V 1.5A External power supply(PoE),
	DC12V 1A External power supply
MTBF	≥100000 hours

Business Terms Price is FOB Beijing, 3 years warranty.
Price doesn't include SFP modules.
About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc.
