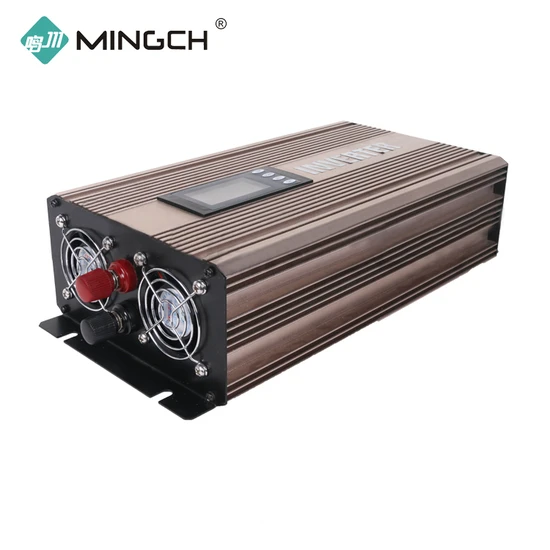

Mingch High Quality 12V to 220V 1500W Pure Wine Wave Inverter

Product Description

You are here:Home>>Inverter>>Pure Sine Wave Power Inverter
Product Description Pure sine wave inverters is one of the most popular power inverter series since the beginning.
USB output port : 5V500mA (optional ) ON/OFF switch control the inverter by hand Compact , light weight and easy to operate. Equipped with numerous protection features to guarantee safe and trouble-free

Model	MINGCH -5K-1	MINGCH -5K-1	MINGCH -5K-1	MINGCH -5K-2	MINGCH -5K-2	MINGCH -5K-2
Rated power	5000W
Peak power	10000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	1.5A	1.1A	0.8A	1.5A	1.1A	0.8A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Input voltage range	10-15.5V	20-31V	40-61V	10-15.5V	20-31V	40-61V
Low voltage alarm	10.5±0.5V	21±0.5V	42±1V	10.5±0.5V	21±0.5V	42±1V
Low voltage protection	10±0.5V	20±0.5V	40±15V	10±0.5V	20±0.5V	40±15V
Over voltage protection	15.5±0.5V	31±0.5V	61±1V	15.5±0.5V	31±0.5V	61±1V
Low voltage recover	13±0.5V	24±0.5V	48±1V	13±0.5V	24±0.5V	48±1V
Over voltage recover	14.8V±0.5V	29.5V±0.5V	59V±1V	14.8V±0.5V	29.5V±0.5V	59V±1V
Protection function	Low voltage		Alarm at first, voltage continously reduce. LED Red light on & shut sown.
	Over voltage		LED Red light on, shut down
	Over load		LED Red light on, shut down
	Over temperature		Alarm at first, tempurature continously rise.LED Red light on & shut sown
	Short circuit		LED Red light on
	Input reverse polarity		Fuse burn-out
Working temperature	-10°- +50°
Storage temperature	-30°- +70°

Related Products

Company Information Mingch Electrical is a manufacturer specialized in development,production,marketing as a body electric power voltage regulator.Since origination,it has been persisting in taking the science and technology as the forerunner,the abundant technology as a backing,and positively introducing the overseas advanced technology,unceasingly improve and consummate the products, many years specialized management,the product best-selling nation,While exports to Bangladesh,Myanmar,India,Russia,Indonesia,Thailand and other countries in Southeast Asia and Africa, some of them are well sold to the world meanwhile receive high praise from the majority of customers.
Our Advantage
Certifications
Packaging & Shipping 1.Packaging:
Small capacity products (Automatic Voltage Regulators/Stabilizers), colour box as inner package and cardboard carton as outer package.
Big capacity products, we use strong plywood case.
2.Shipping Methods:
By air or by sea(FOB port:Ningbo),by express (DHL,UPS,TNT,FEDEX).
FAQ Q1: What is the Guarantee?
A1: Two years (for free) from the date of B/L. Besides, any of the spare parts can be supplied all the time, that is, during the guarantee period and after the guarantee period.
Important:
a. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95% (some series of them reaches 95%), please don't let them work overload!
b. Please make sure that all the electric wires are connected correctly according to the electric diagram

Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit big.

Q3: Is OEM/ODM available?
A3: Yes, it is! Our products can be Customized. We have 5 senior engineers in our R&D Dept., we design and produce all kinds of Automatic Voltage Regulators/Stabilizers according to our customers' specific requirements.

Q4: What is the MOQ?
A4: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the default configuration, it is 10 sets. For the big capacity products, it is 1 set.

Q5: Can you offer Form A or Form E or C/O ?
A5: Yes, no problem, we can apply for it from our local government.

Q6: What kind of Certificates do you have?
A6: CE, ISO9001 and SGS.

Q7: What is the Terms of Payment?
A7: L/C, T/T, D/P, D/A, Western Union and MoneyGram (for Small-amount payment).
