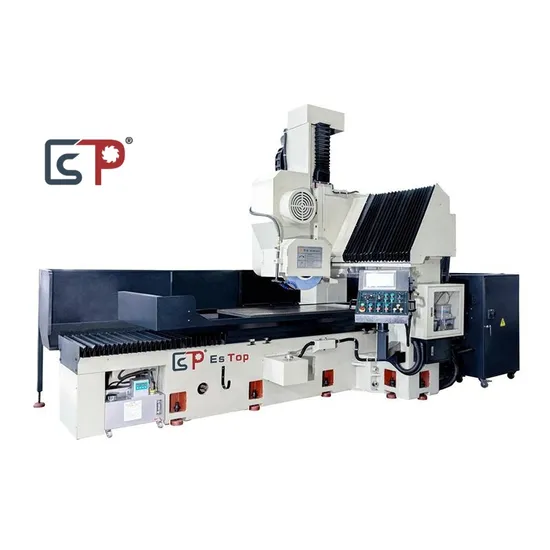

Estop Advanced Gantry Grinder Fixed Beam Single Head Gantry Grinding Machine Etld-60150nc

Product Description

Product Description
Es Top: Professional made the excellent machine.
Dongguan ESTOP Machinery Co., Ltd.
Model: ETLD-60150NC
AHD: Left and right hydraulic drive, Infront and back stepper motor, up and down servo motor.
NC: Left and right hydraulic drive, Infront and back servo motor, up and down servo motor.
CNC: X,Y,Z,Three axis servo motor CNC control.
more datailed photos:
Features:
1. High rigid triangular beam design:
The beam adopts triangular structure design, with excellent high rigidity, bending and torsional resistance;
The grinding wheel reduces the beating during grinding and is not easy to passivate.
2. Rail adhesive Teflon [ Machine base guide rail, beam rail are high-frequency quenching]:
All guide rails of the machine tool are finely ground and then manually scraping, and the guide rails are affixed;
The beam adopts triangular structure design, with excellent high rigidity, bending and torsional resistance;
The grinding wheel reduces the beating during grinding and is not easy to passivate;
Rail adhesive Teflon [ Machine base guide rail, beam rail are high-frequency quenching] with Teflon to reduce crawling force.
3. Spindle and spindle motor design:
The spindle adopts ultra-precision angular contact ball bearing structure design, so that the spindle has Spindle and spindle motor design ultra-high grinding rigidity and grinding precision.
Product Parameters
Specification:

Main item	Double Column Type Surface Grinding machine	Unit	ETLD-60150	ETLD-60200
Worktable	Electromagnet table size(x*y)	mm	1500x600	2000x600
	Left and right Xaxis travel	mm	1700 2200
	Max center of wheel to table	mm	570
	Two column passed maximum workpiece size	mm	1000
	Worktable Maximum loading copacity	kg	5000
	Worktable feed speed	m/min	5-30
	Table t-slot specification	mm*n	18x3
Grinding wheel	Grinding wheel size max	mm	500 x 203 x 50-75
	Spindle motor	HP*P	20x4
	(50HZ/60HZ) Grinding wheel speed	R.P.M	1450
Size	Height of machine(Move to top Height)	mm	≈3200
	Layout Floor space(Length X width)	mm	4450x2450 5450x2450
	Weight	kg	≈8800	≈9200

Installation Instructions
Our Advantages
Our Main Products: High precision machining centers, Surface Grinding machine, Gantry grinding machine, NC band saw machine, CNC Circular plate sawing, CNC Vertical milling machine, CNC Duplex milling machine, Deep hole drilling machine, Horizontal milling centers, Vertical machining centers, High speed CNC turning centers, High Precision 5-Axis Vertical Machining Center
We can customize models according to customer requirements.
Packaging & Shipping
Company Profile

FAQ
FAQ
Q1. What is the payment Terms ?
A1: T/T, 30% initial payment when order ,70% balance payment before shipment; Irrevocable LC at sight. When we receive the advance payment, we will start to make production. When the machine is ready , we will take pictures to you after we got your balance payment. we will send the machine to you.
Q2.How can I choose the most suitable machines ?
A2: Please let us know your machining demand or machine size, we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the products drawing, we will choose the most suitable machines for you.
Q3. What is the package of the machines?
A3: The machines standard packed by iron pallets or Fumigated wood with plywood films.
Q4. What is your trade terms?
A4: FOB, CFR, CIF or others terms are all acceptable.
Q5. What is your minimum order quantity and warranty?
A5: MOQ is one set, and warranty is one year. but we will offer lifetime service for machine.
Q6.When is the delivery time?
A6: We will delivery then within 15-60 working days after received your deposit. If some special machines will be some longer, we will give you the answer accordingly.
Q7: How to ensure the quality?
A7: 1.Firstly we choose best material for the processing.
2.Being and after processing, we will inspect the finished parts.
3.Machine finished, our company QC will test the machine as per customer requests.
Q8: How to deal with the after-sales service?
A8: 1. Technician available for training and installation at customer's company 2. Internet service by sending emails and videos, communicating online or calling
3. One year warranty. During the warranty period, we will sent damage of the machine parts (non-human factors)for free.
Q9: How do we get the training for the machines?
A9: You can send your people to our factory and we will offer training free of charge, or we can send our engineer to your place.
Q10: Where is your factory located?
A10: Our factory is located in Dongguan city and Chongqing city.
